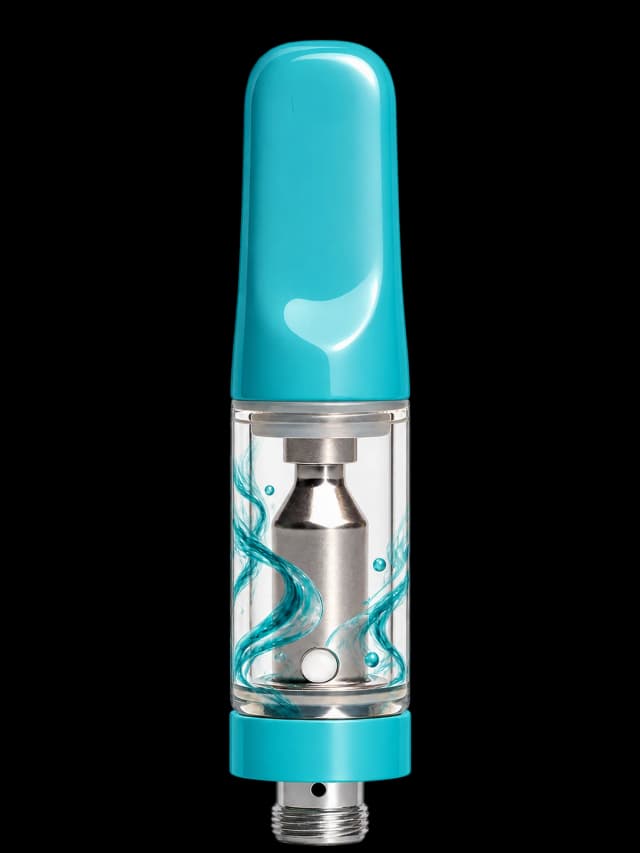

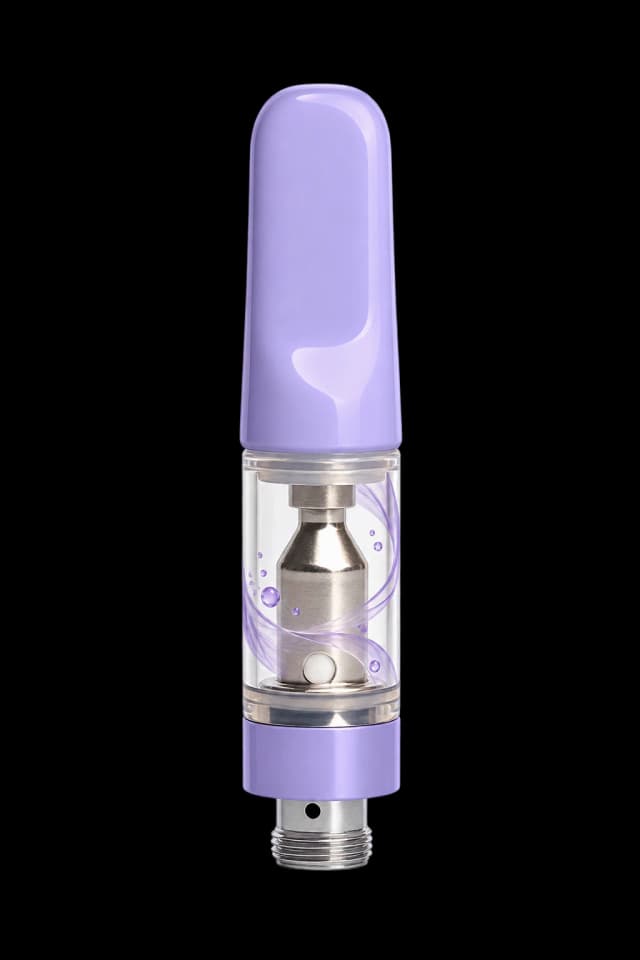

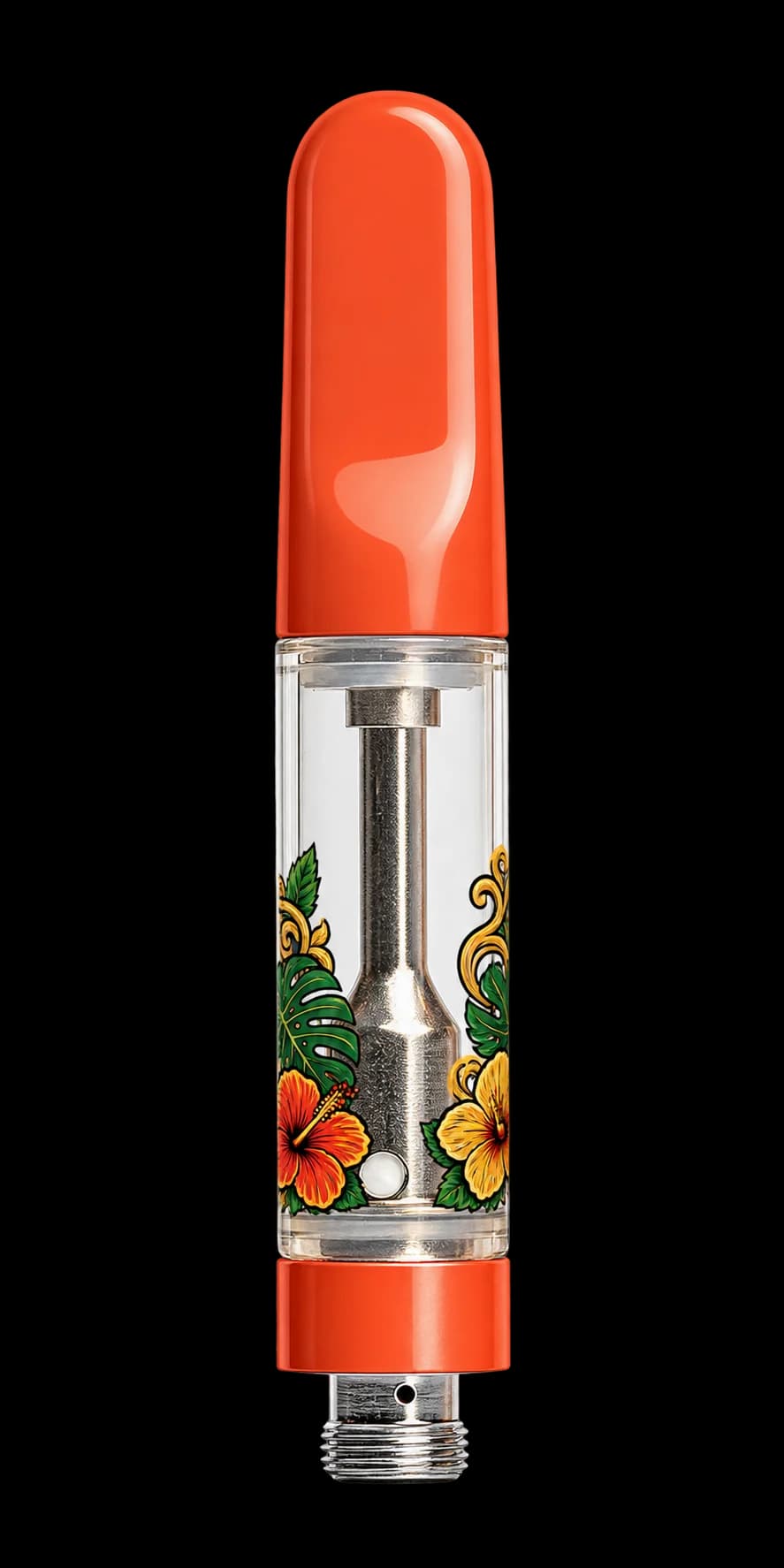

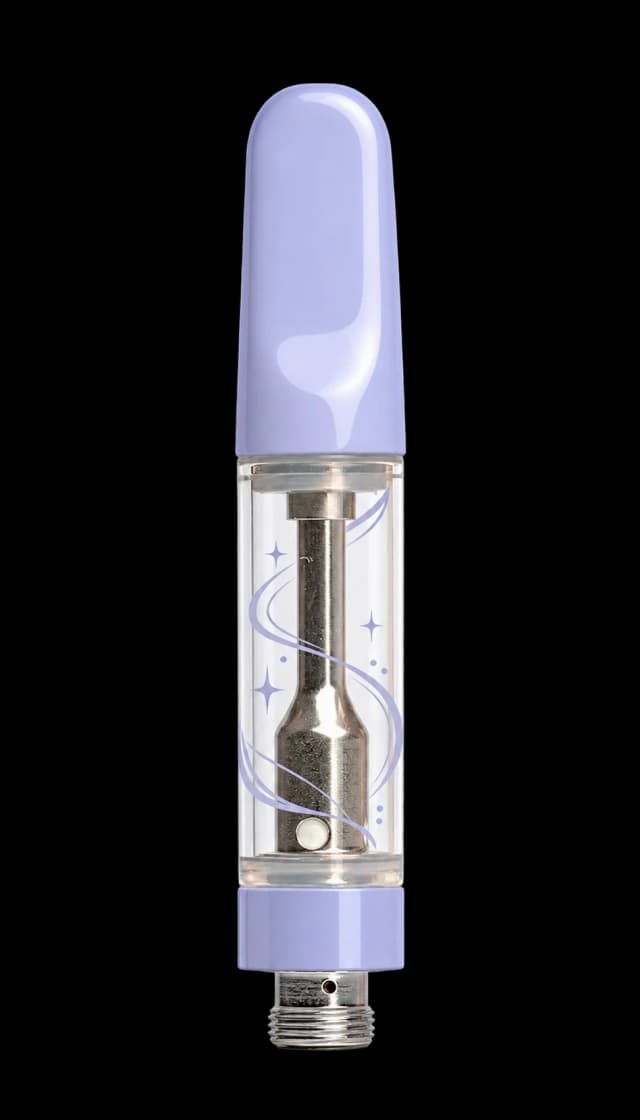

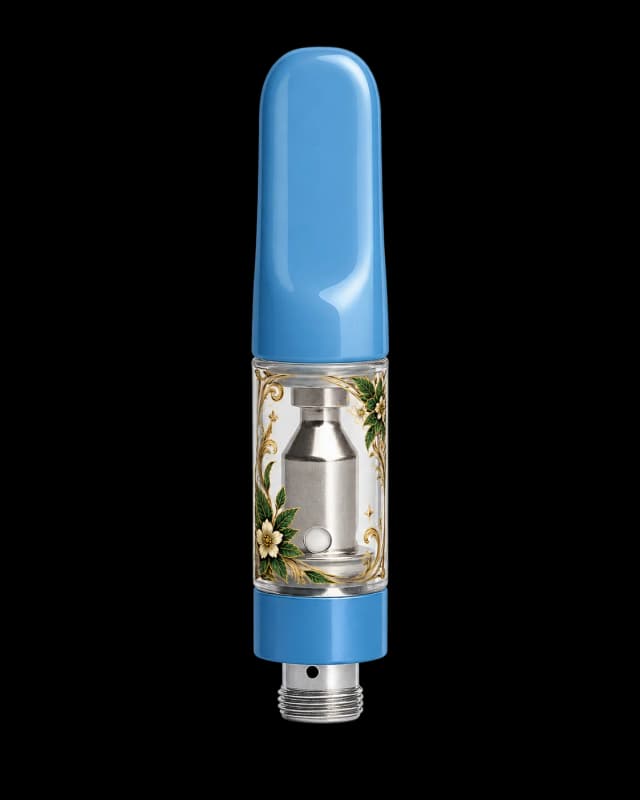

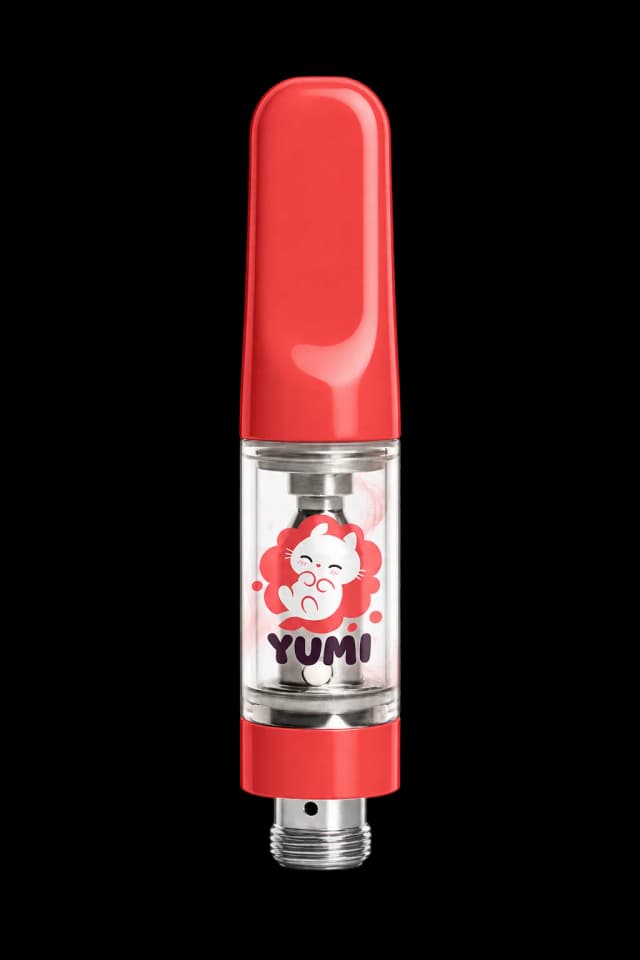

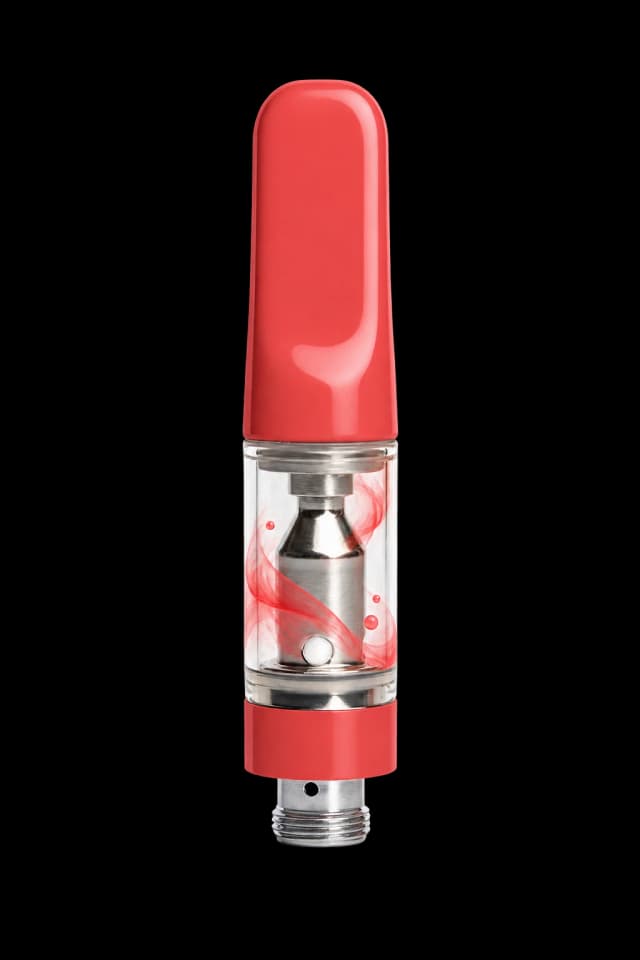

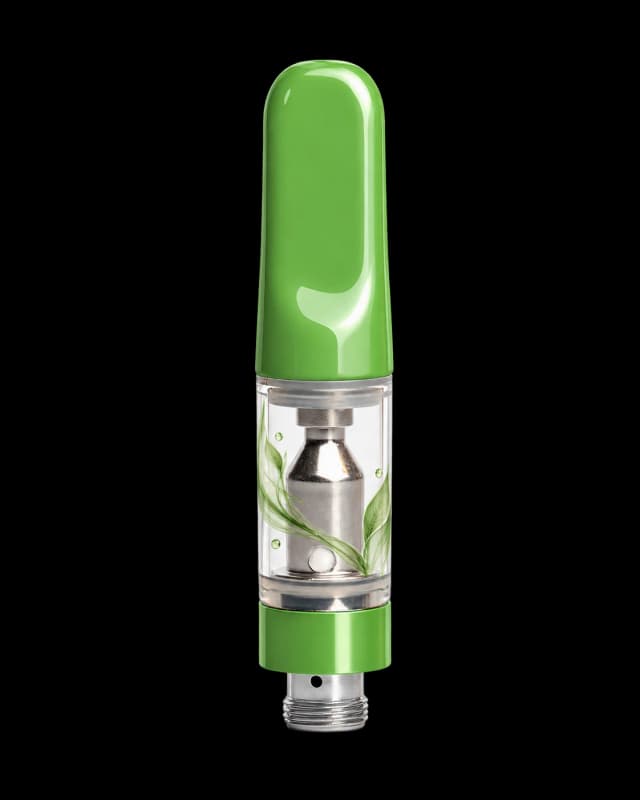

RHAIN is a top-fill vaporizer cartridge available in three capacities. It combines porous ceramic heating technology, glass fluid housing, stainless-steel internal hardware, customizable fluid-inlet sizing, and multiple mouthpiece and capping configurations.
Heating element embedded in porous ceramic.
Universal 510 / M7 threaded fitting.
Heating element embedded in porous ceramic for even saturation and clean vapor.
Standard press-fit configuration with a full mouthpiece catalogue available.

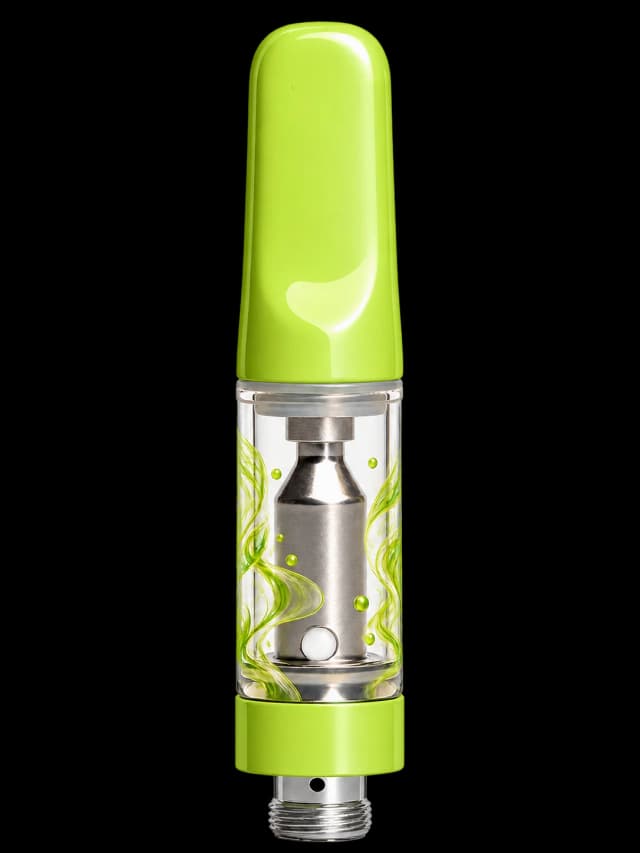

The atomizer embeds the heating element in porous ceramic. Oil saturates the ceramic wick before reaching the coil for smooth, even vaporization.
| Heating Element | NiCrAl alloy in porous ceramic |
|---|---|
| Wick | Ceramic — full saturation path |
| Tank | Glass fluid housing |
| Airway | 304 & 316 stainless steel |

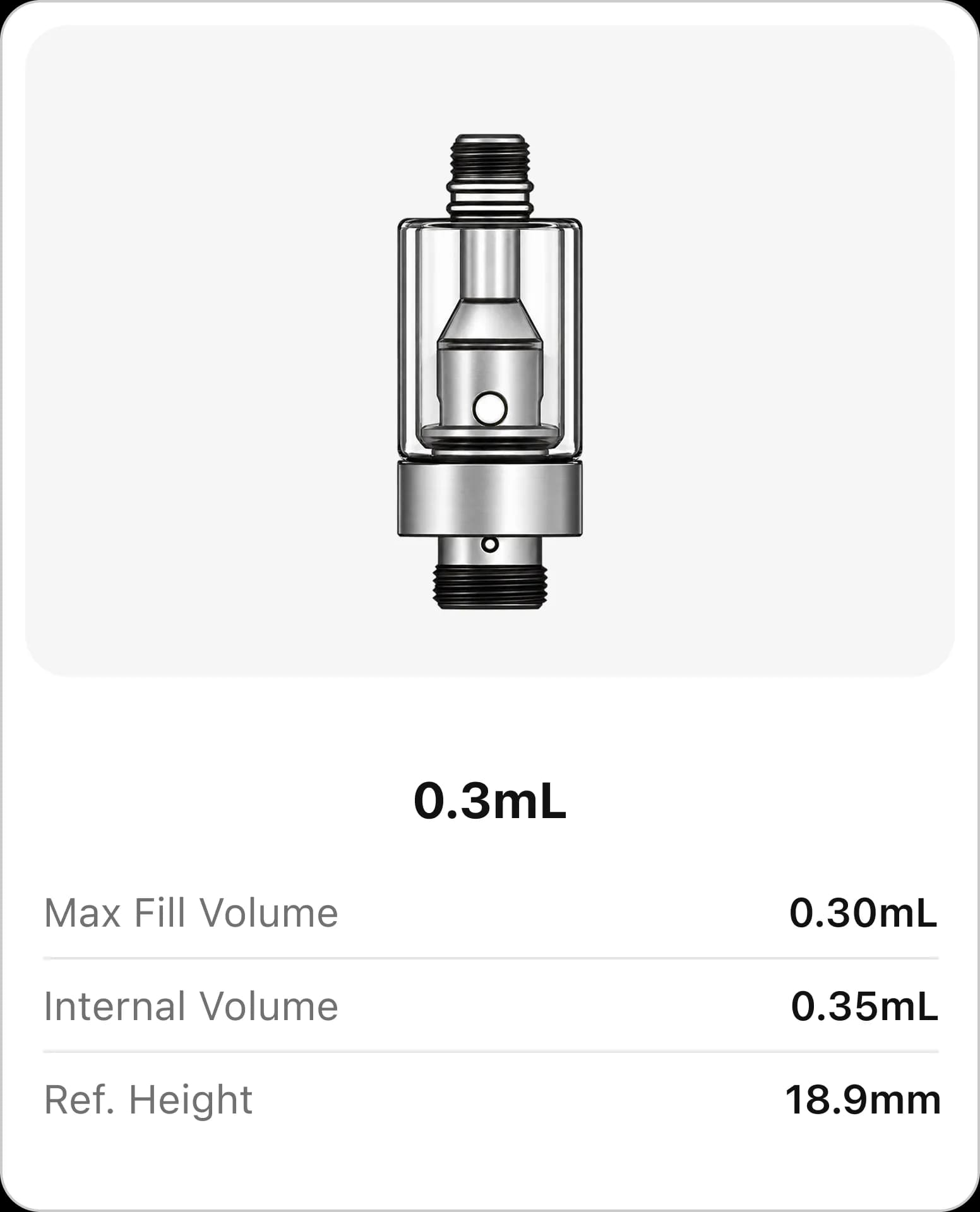

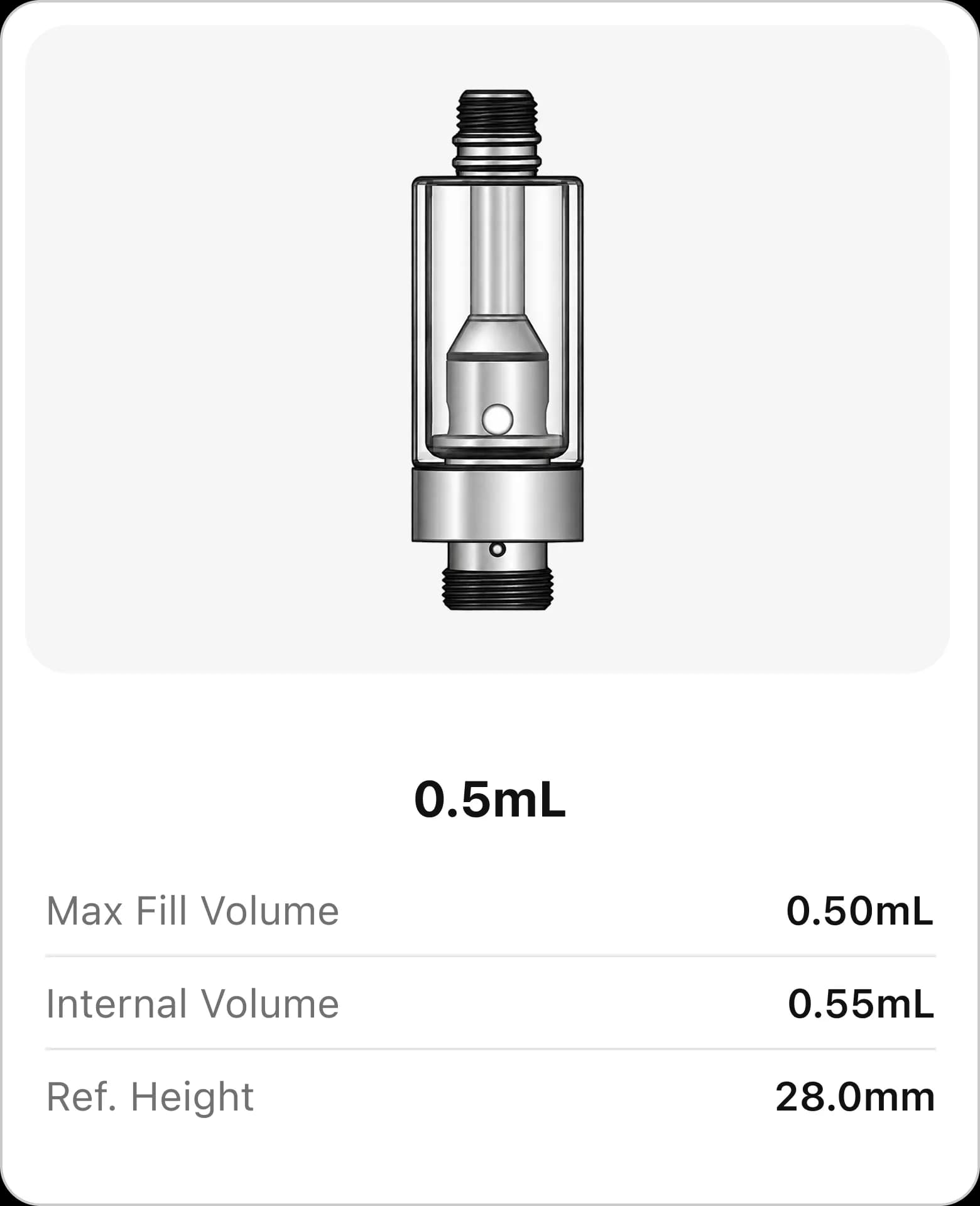

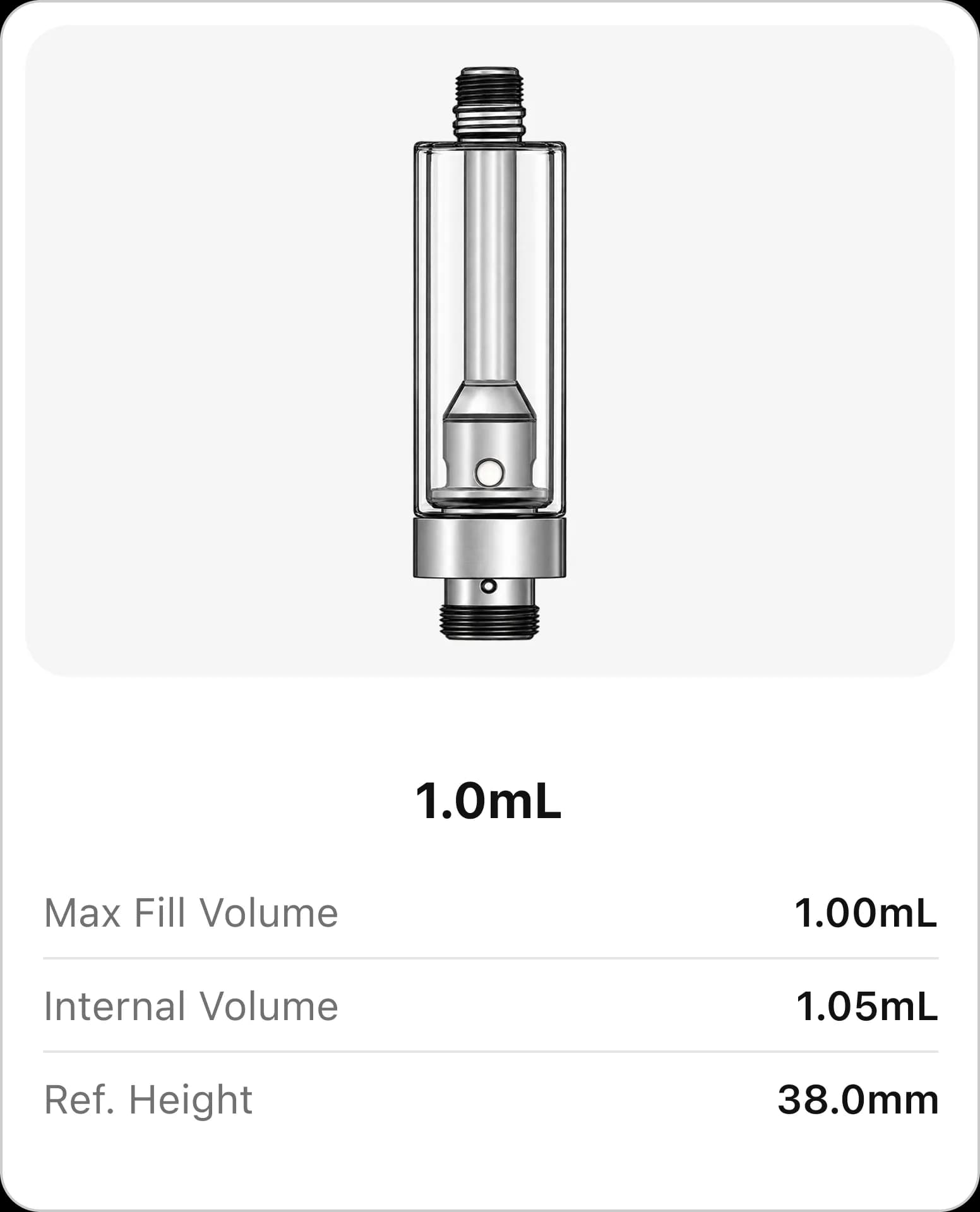

Three fill volumes on one cartridge platform — from trial-size 0.3mL to full 1.0mL. One 510 fitting across all sizes.
Cartridge sizes, mouthpiece options, glass tank, ceramic atomizer, 510 connector, filling, and dielines.
Complete specification data for procurement and compliance.
| Product Type | Top Fill Vaporizer Cartridge |
|---|---|
| Available Sizes | 0.3mL / 0.5mL / 1.0mL |
| Max Fill Volume | 0.30mL / 0.50mL / 1.00mL |
| Internal Volume | 0.35mL / 0.55mL / 1.05mL |
| Power Reference | 3.5V (0.5W) |
| Standard Fluid Inlet | 2.0mm |
| Optional Fluid Inlet | 1.0–2.5mm |
Inlet sizing adapts the cartridge to different oils and vapor targets — from tight, flavorful draws to open, high-flow performance.
2.0mm
Balanced flow for most oil viscosities out of the box.
1.0–2.5
Custom inlet sizing upon request for specific oils.
Universal threaded connection for standard batteries.
Threaded mouthpiece capping method.

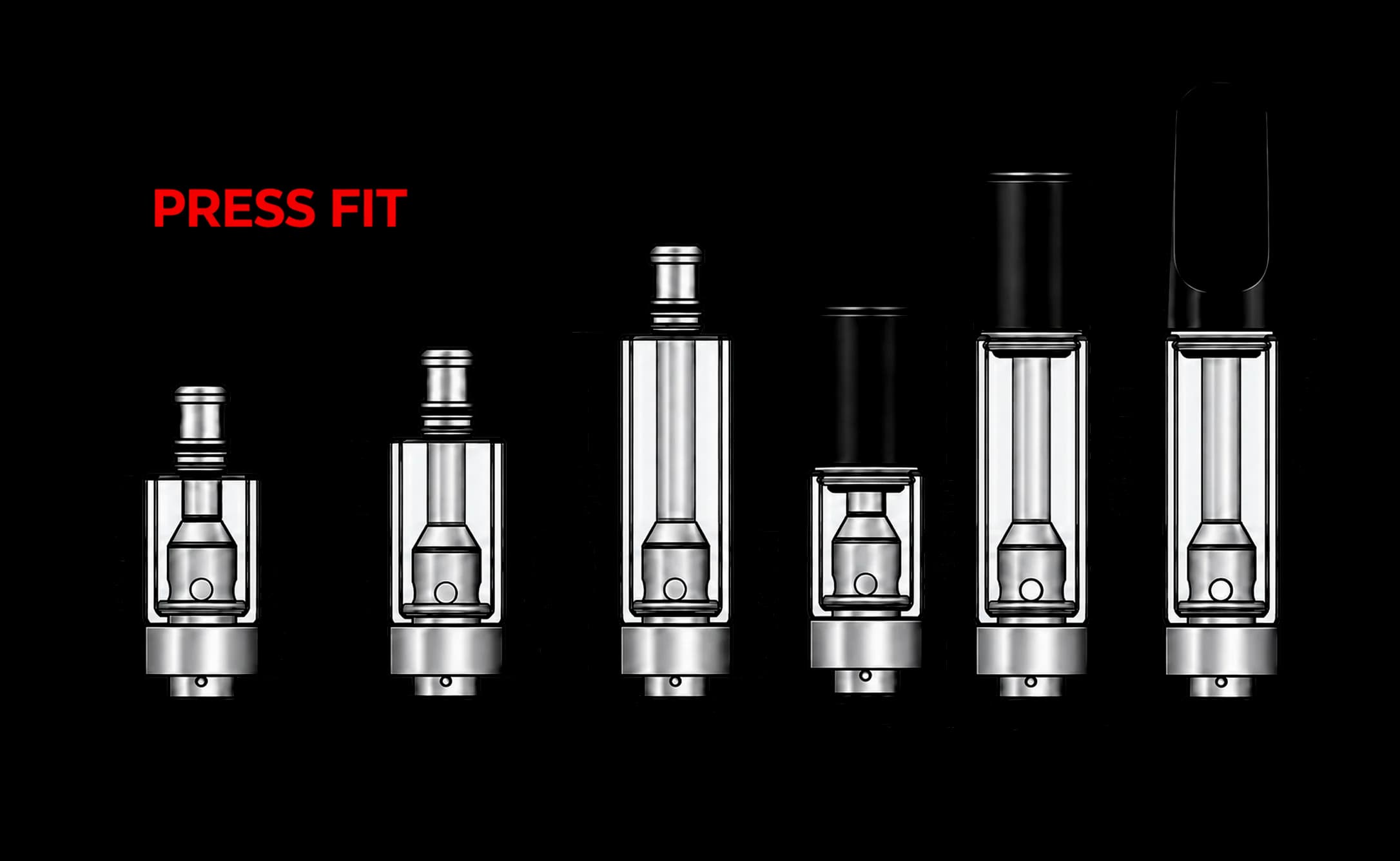

Standard press-fit mouthpiece — full catalogue available.

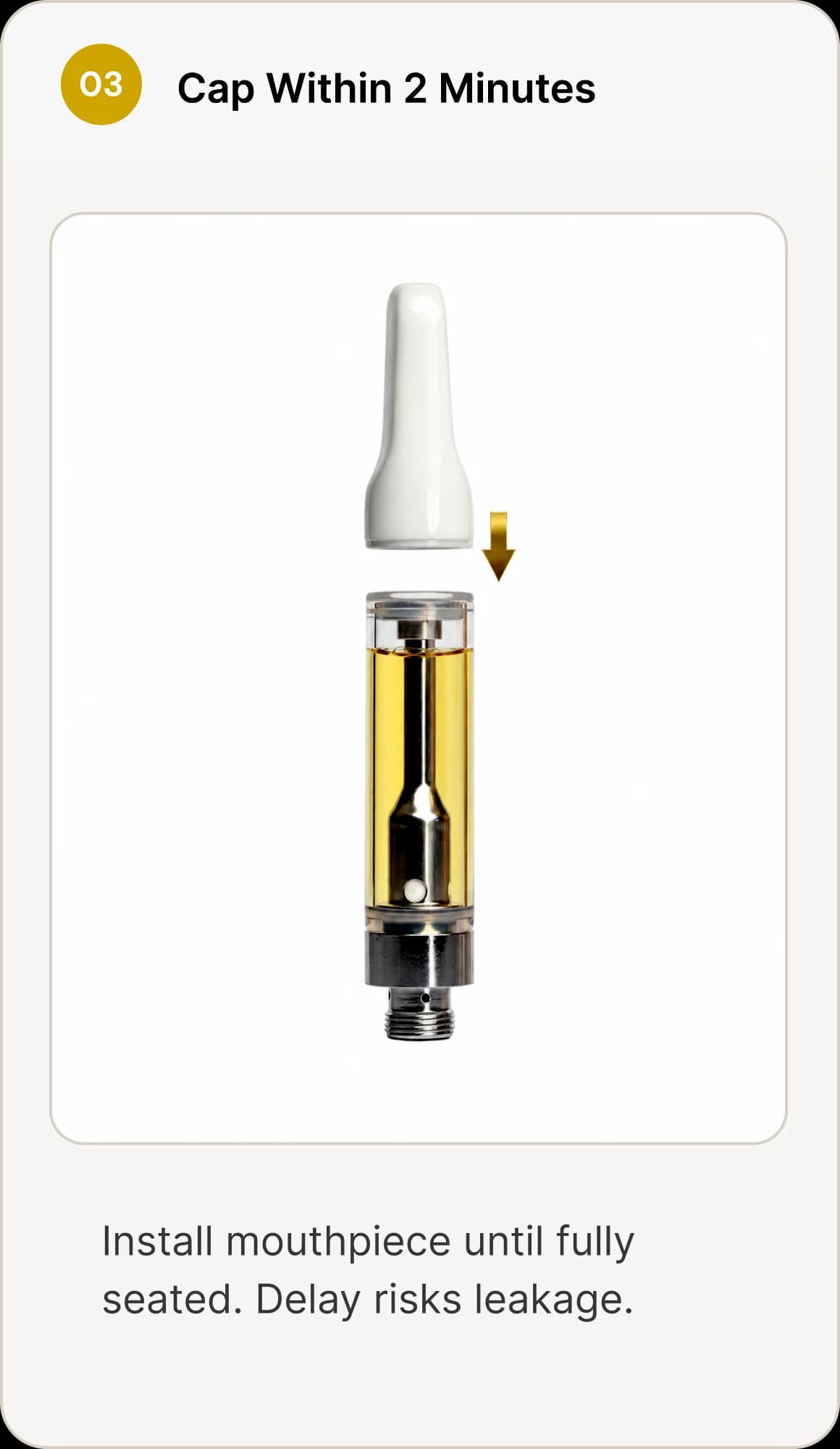

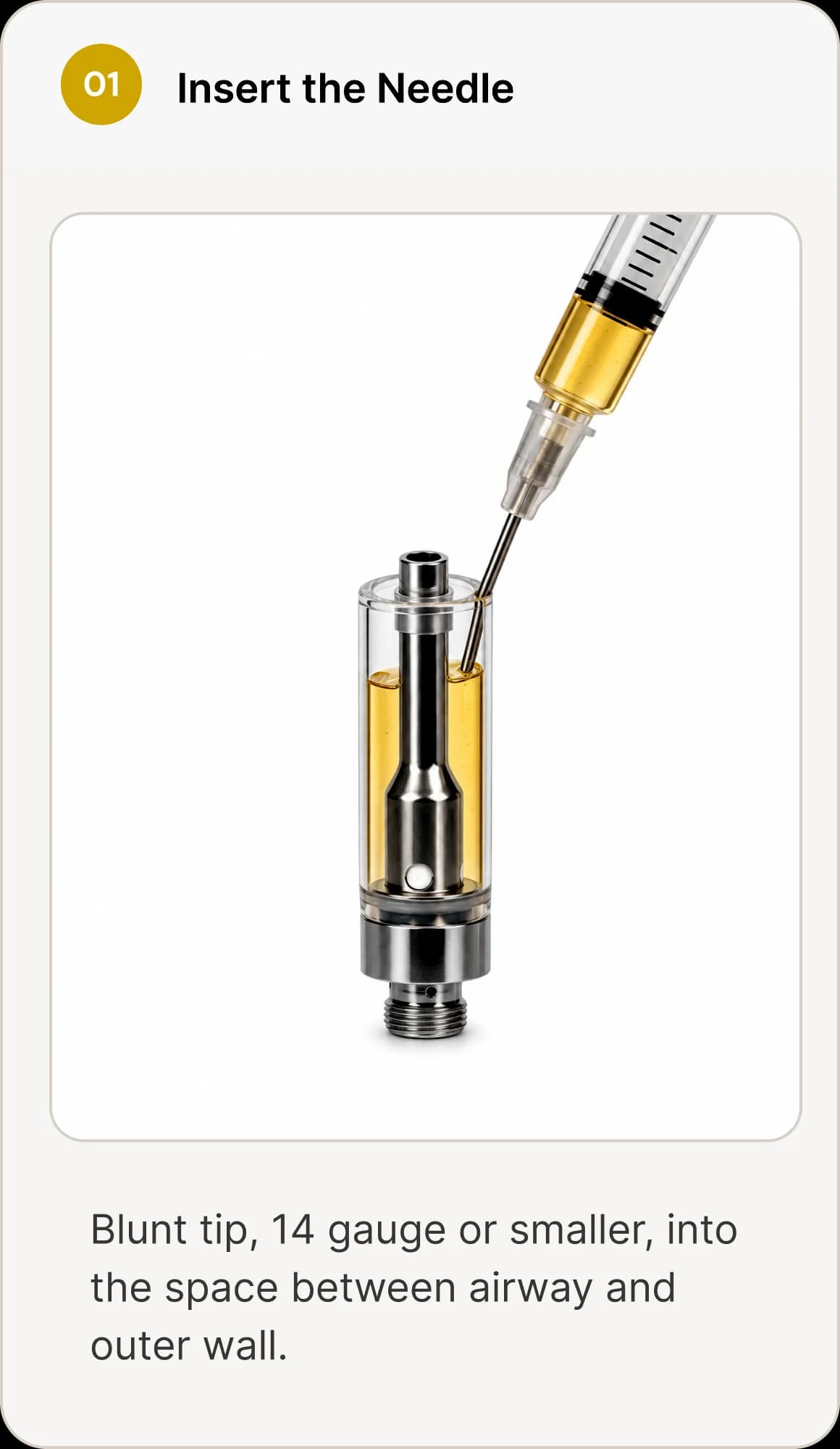

Use a blunt-tipped needle, 14 gauge or smaller. Never allow fluid into the center airway tube.

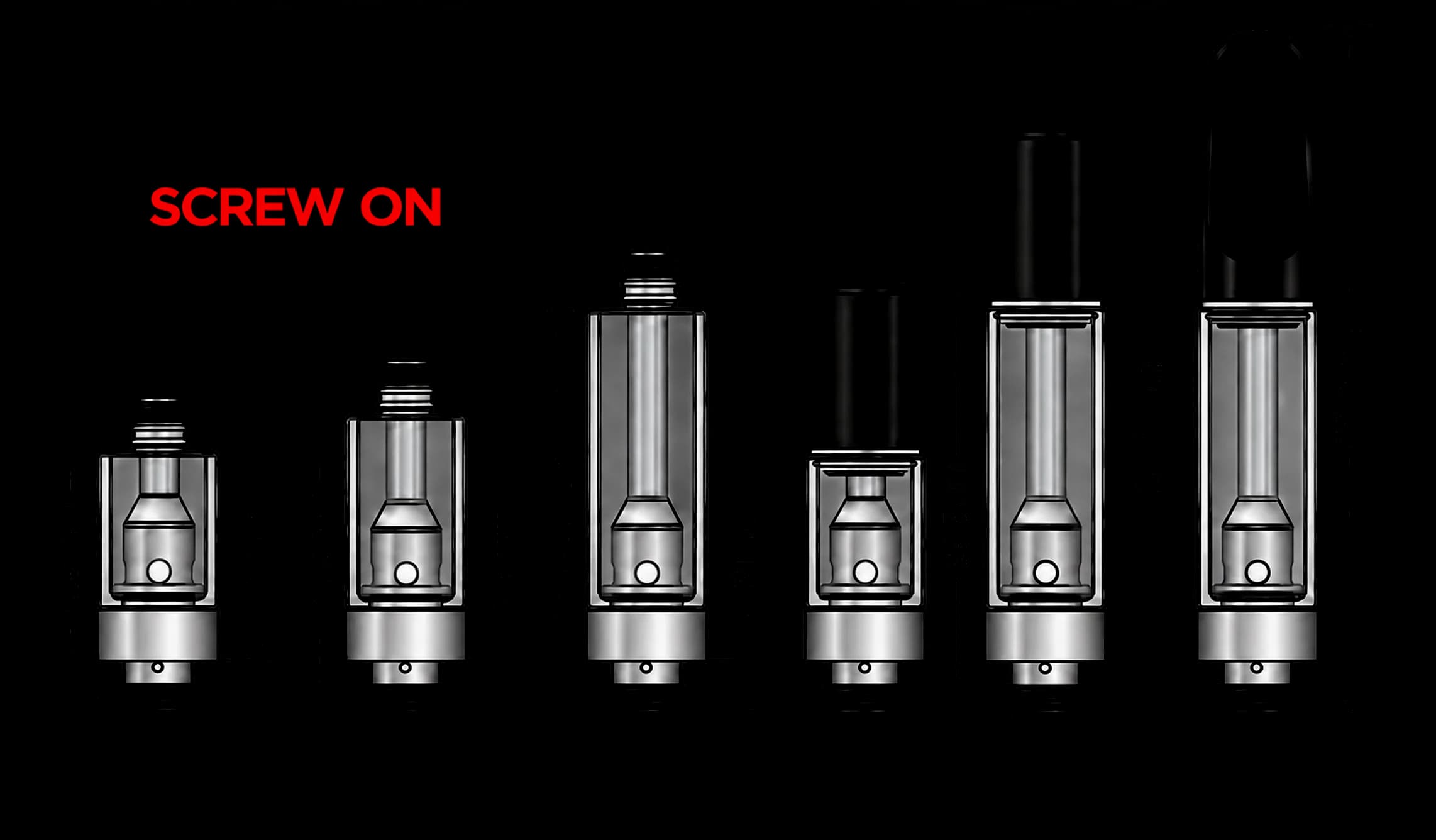

Overall height varies by capacity and mouthpiece. Screw-on and press-fit dielines differ per size.
| Fluid Housing | Glass |
|---|---|
| Atomizer Shell & Base | 304 & 316 Stainless Steel |
| Airway Tube | 304 & 316 Stainless Steel |
| Heating Element | Nickel Chromium Aluminum Alloy |
| Wick | Ceramic |
Silk Printing
MOQ 1,000Extra 2–3 days
Powder Coating
MOQ 1,000Extra 1–2 days
Laser Engraving
MOQ 5,000Extra 3–4 days
Electroplating
MOQ 10,000Extra 3–4 days
Soft Touch
MOQ 10,000Extra 5–7 days
Matte & Glossy Finish
Have questions about our hardware, packaging, customization, or ordering process? Here are answers to the questions we hear most often.
0.3mL (0.35mL gross), 0.5mL (0.55mL gross), and 1.0mL (1.05mL gross).
2.0mm standard with 1.0–2.5mm options upon request — tune to oil viscosity and vapor feel.
510 / M7 threaded connection. Screw-on or press-fit mouthpieces; press-fit is standard.
Glass housing, 304/316 stainless steel shell and airway, nickel chromium aluminum element, ceramic wick, silicone seals.

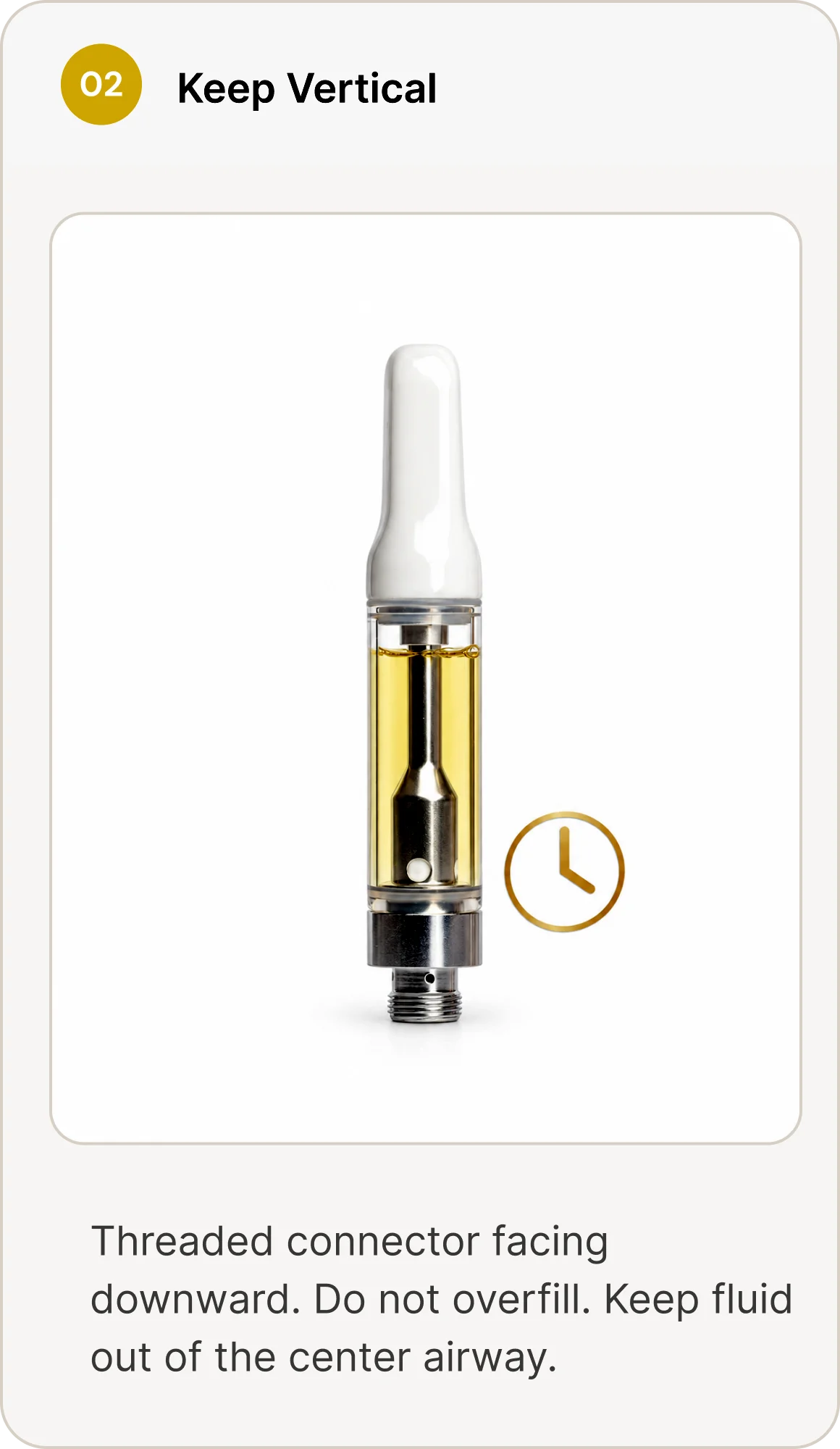

Blunt-tipped, 14 gauge or smaller, inserted between airway and outer wall. Keep the connector facing down.
Still have questions? Email us at hello@rectitudepartners.com
Universal 510 / M7 threaded connection fits standard batteries.
Supports oils from 1,000–110,000 cps with tunable inlet sizing.
Power and fluid-inlet configurations tune vapor feel and taste.
| Viscosity Range | 1,000–110,000 cps |
|---|
| Connection | 510 / M7 threaded |
|---|
| Cap Method | Screw On / Press Fit |
|---|
| Branding | Available with MOQ |
|---|
| Seals |
|---|
| Silicone |
MOQ 10,000Extra 5–7 days

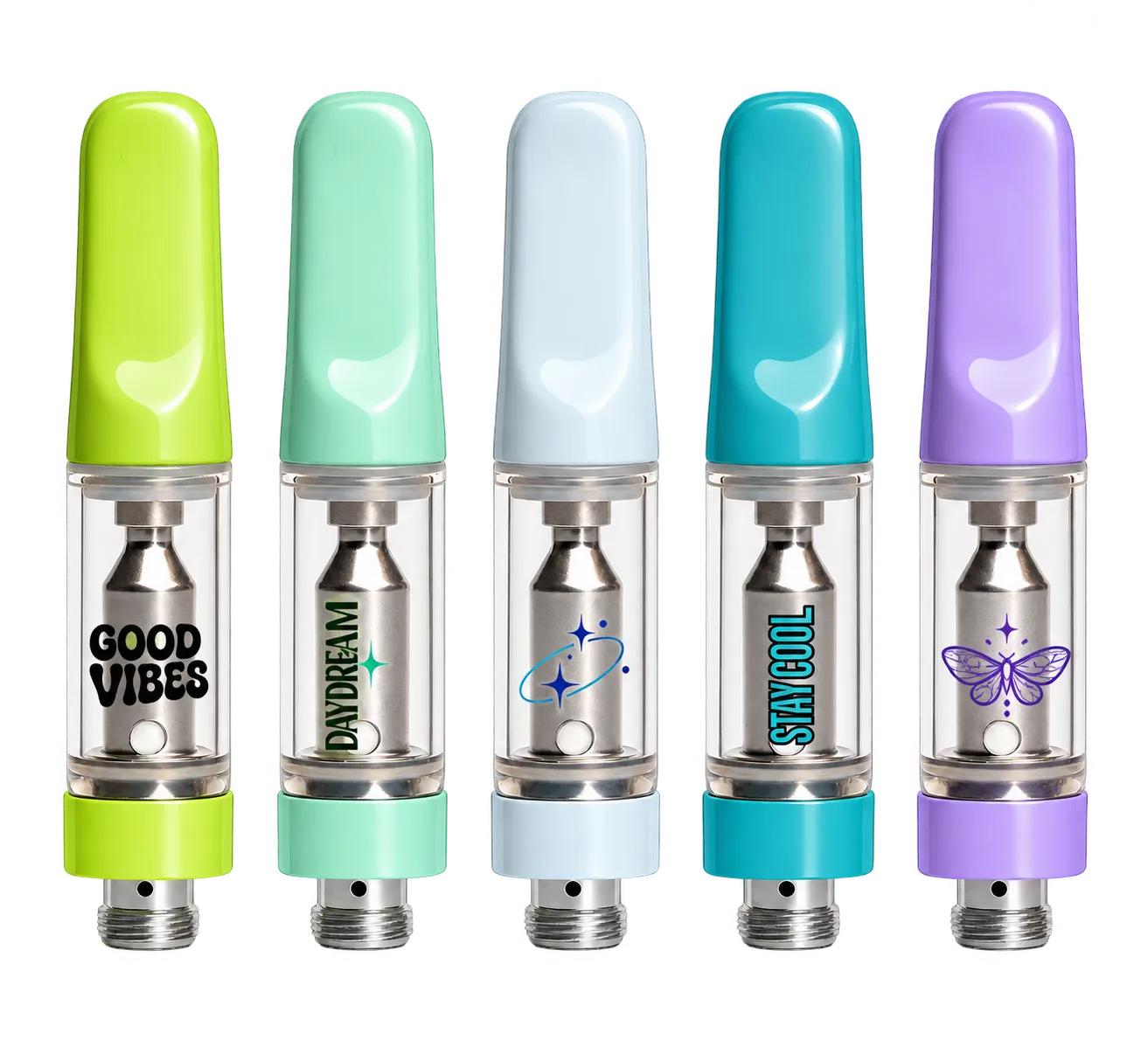

Color Mouthpieces
MOQ 10,000Extra 5–7 days
Paper Wraps
CustomAvailable option
