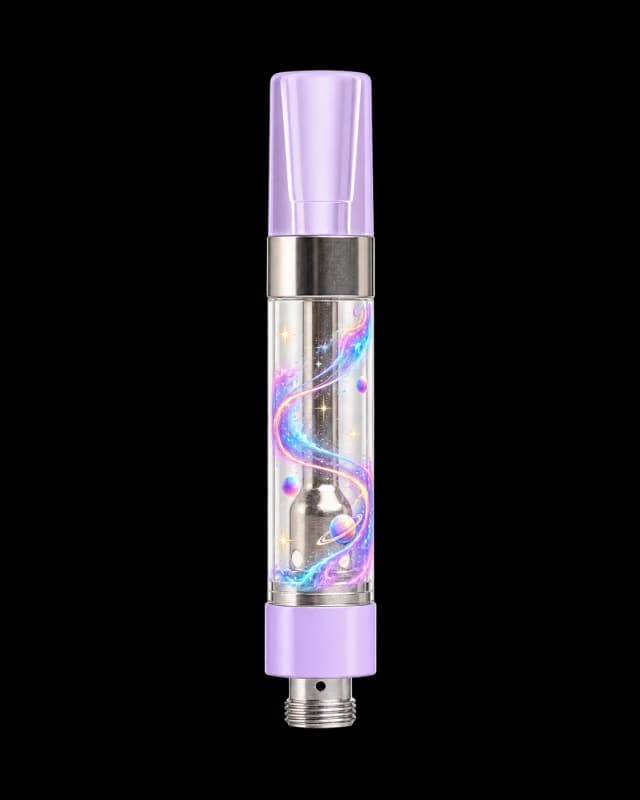

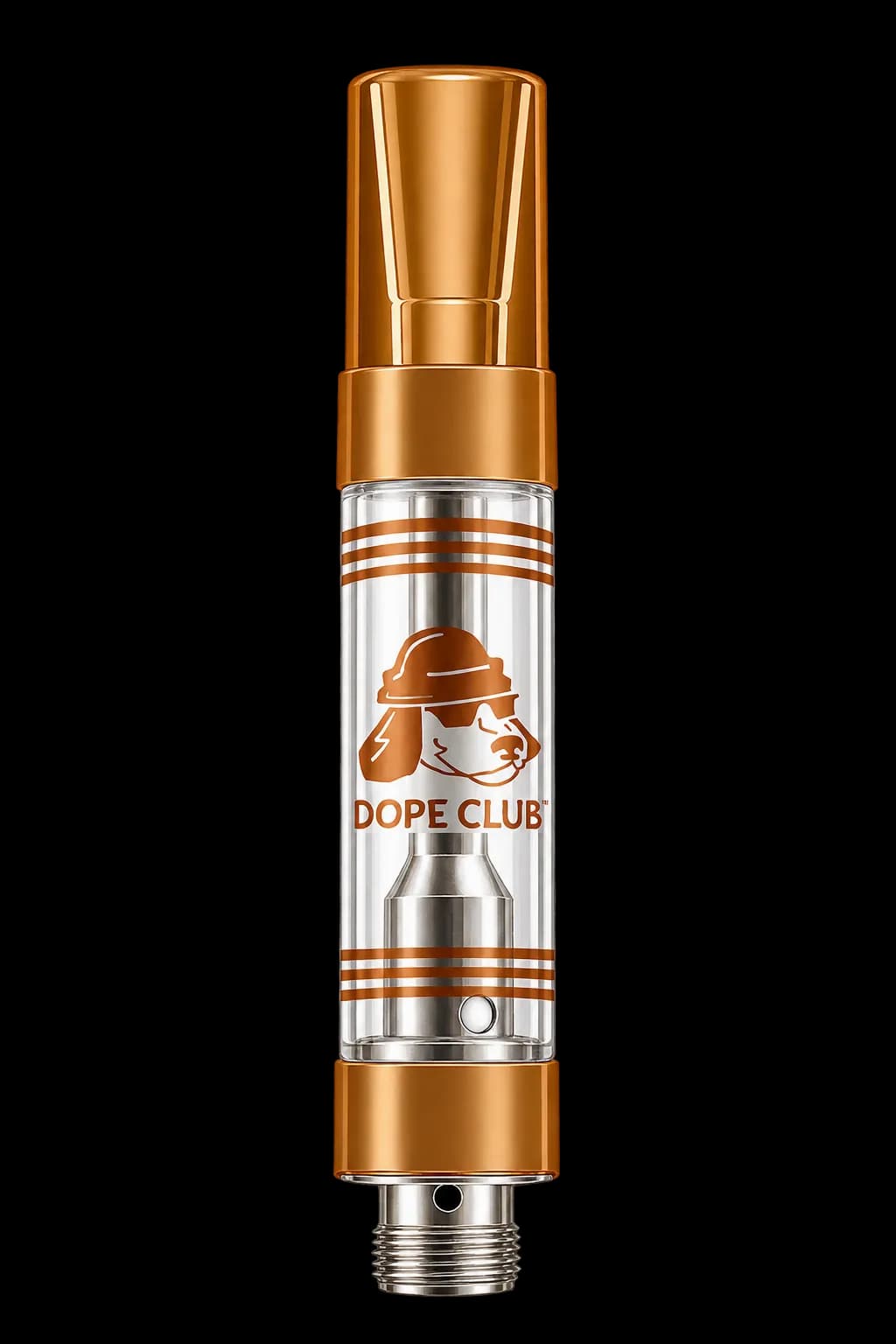

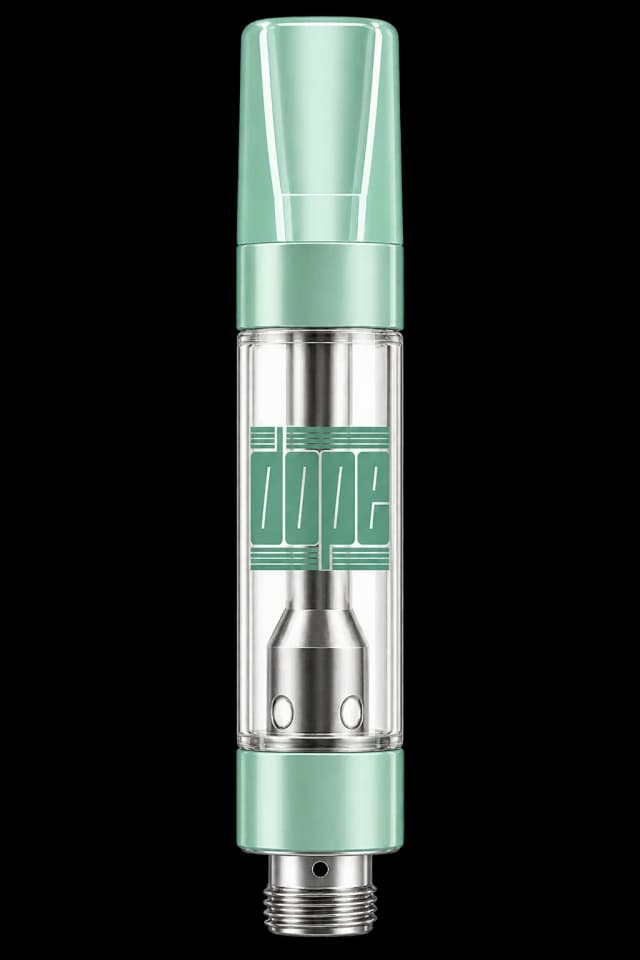

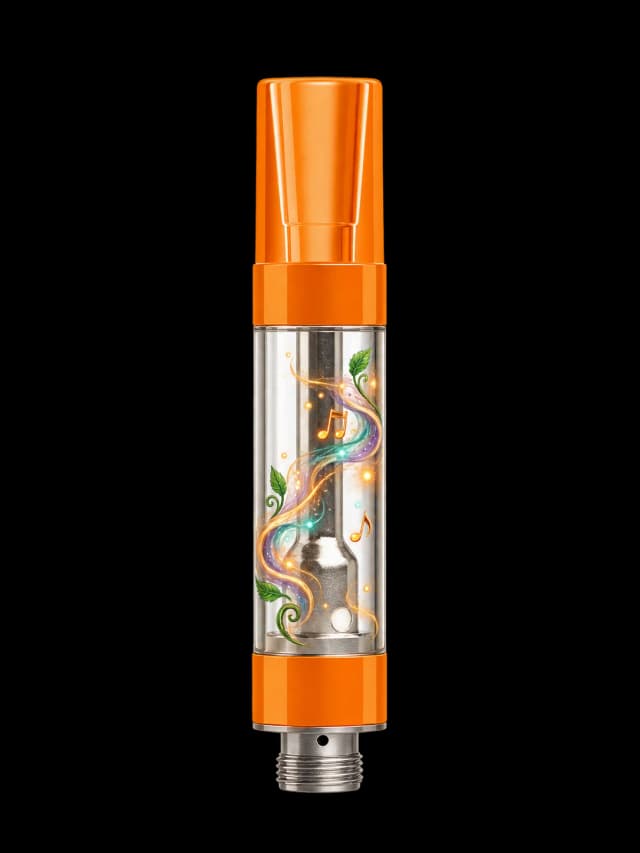

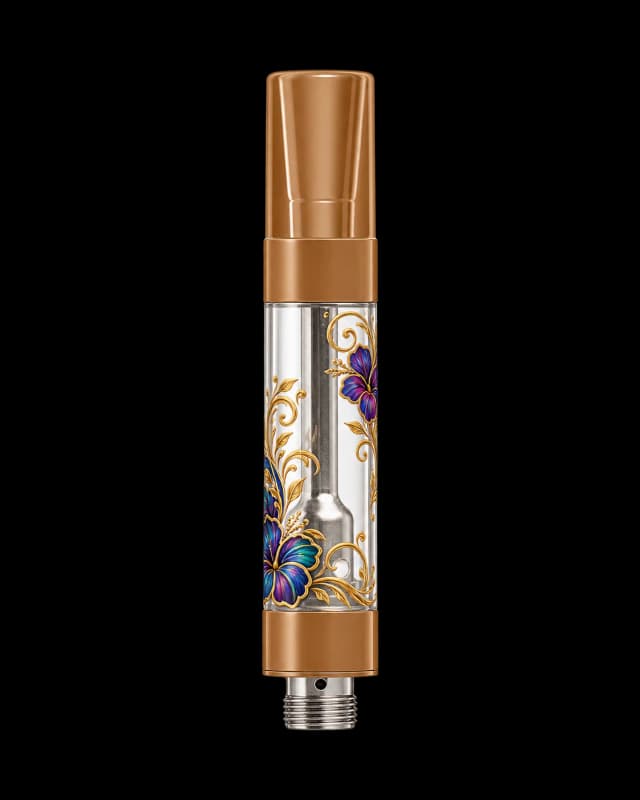

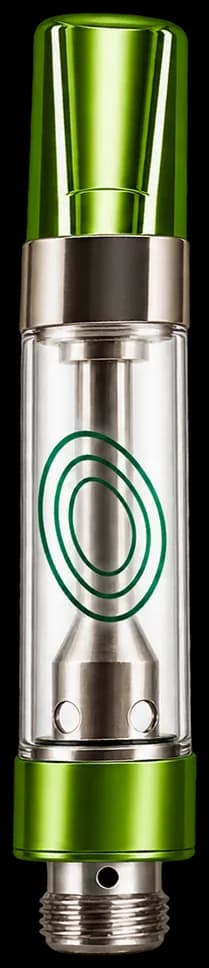

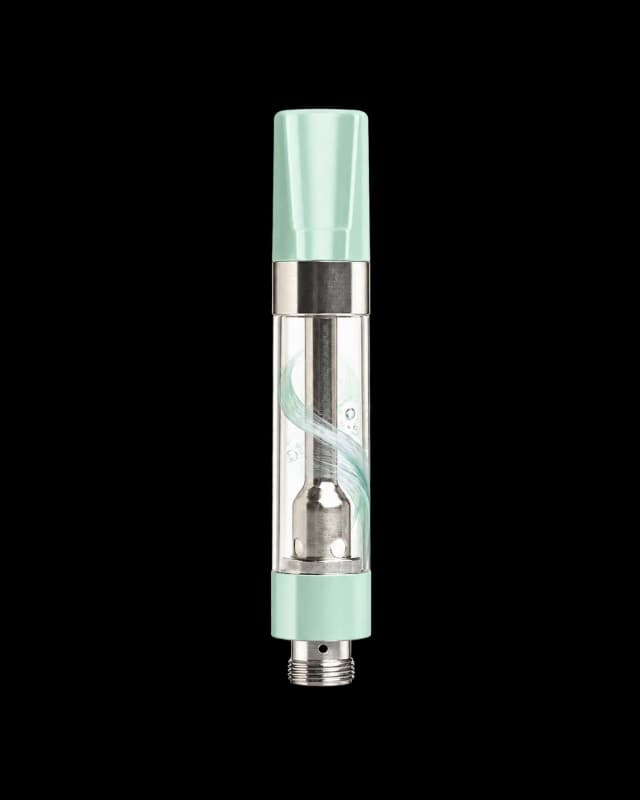

HYDRA is a top-fill vaporizer cartridge available in 0.5mL and 1.0mL capacities. It combines porous ceramic heating technology, stainless-steel internal hardware, customizable fluid-inlet sizing, press-fit capping, and compatibility with oils ranging from 1,000 to 110,000 cps.
Power and inlet configurations tune vapor feel and taste.
Universal 510 / M7 threaded fitting.
Heating element embedded in porous ceramic for even saturation.
Standard press-fit capping — fast assembly, secure seat.

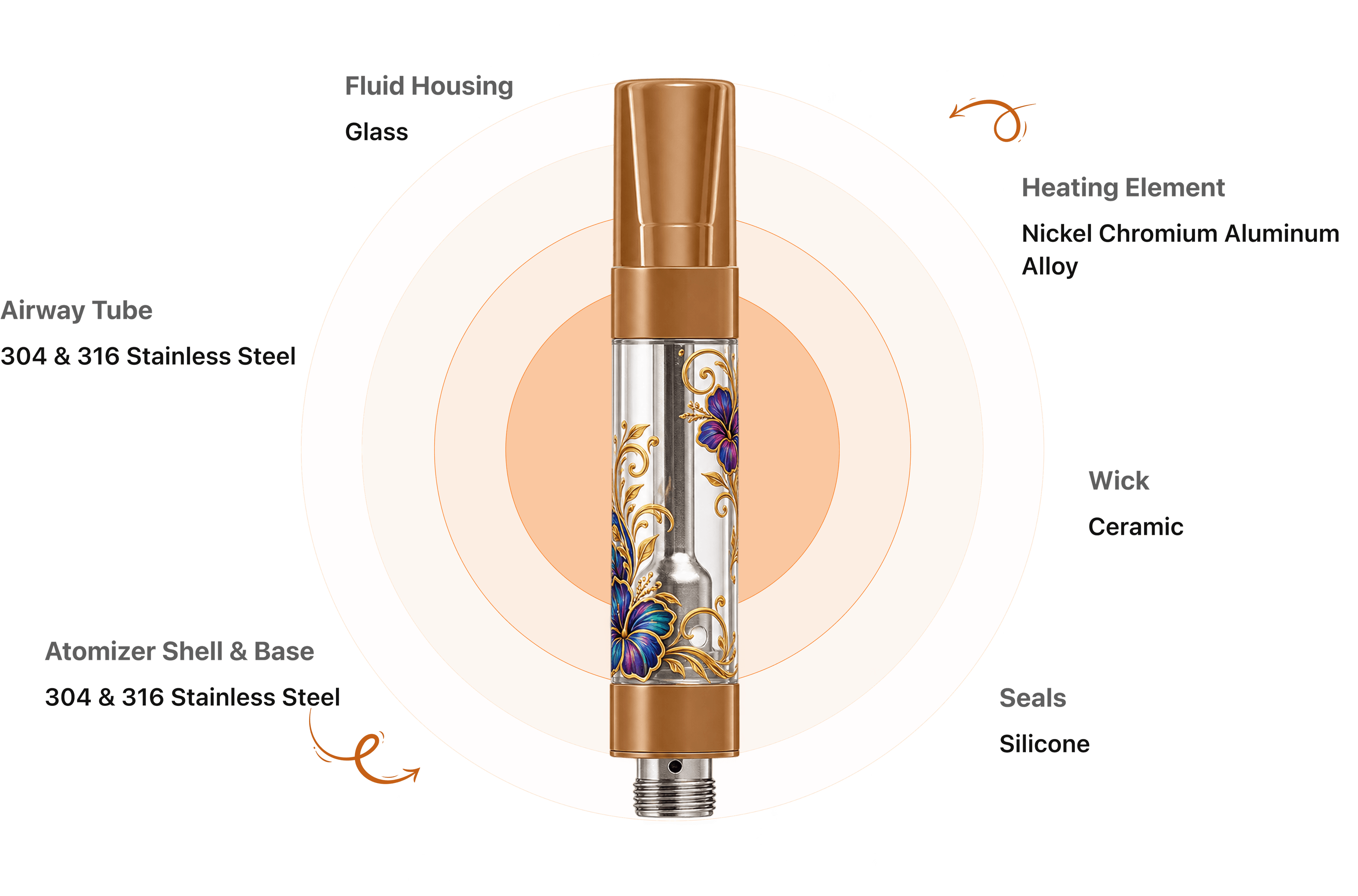

A heating element embedded in porous ceramic pairs with a ceramic wick — oil saturates the ceramic before reaching the coil for smooth, even vapor.
| Heating Element | NiCrAl alloy in porous ceramic |
|---|---|
| Wick | Ceramic saturation path |
| Airway | 304 & 316 stainless steel |
| Housing | Glass fluid housing |
Inlet sizing adapts HYDRA to different oil viscosities and vapor targets — from tight flavor to open flow.
2.0mm
Balanced flow for most oil profiles out of the box.
1.0–2.5
Custom inlet sizing upon request for specific oils.
3.5V
Listed for both 0.5mL and 1.0mL versions.
Cartridge sizes, mouthpiece colors, atomizer macro, 510 connector, filling, capping, and dielines.
Complete specification data for procurement and compliance.

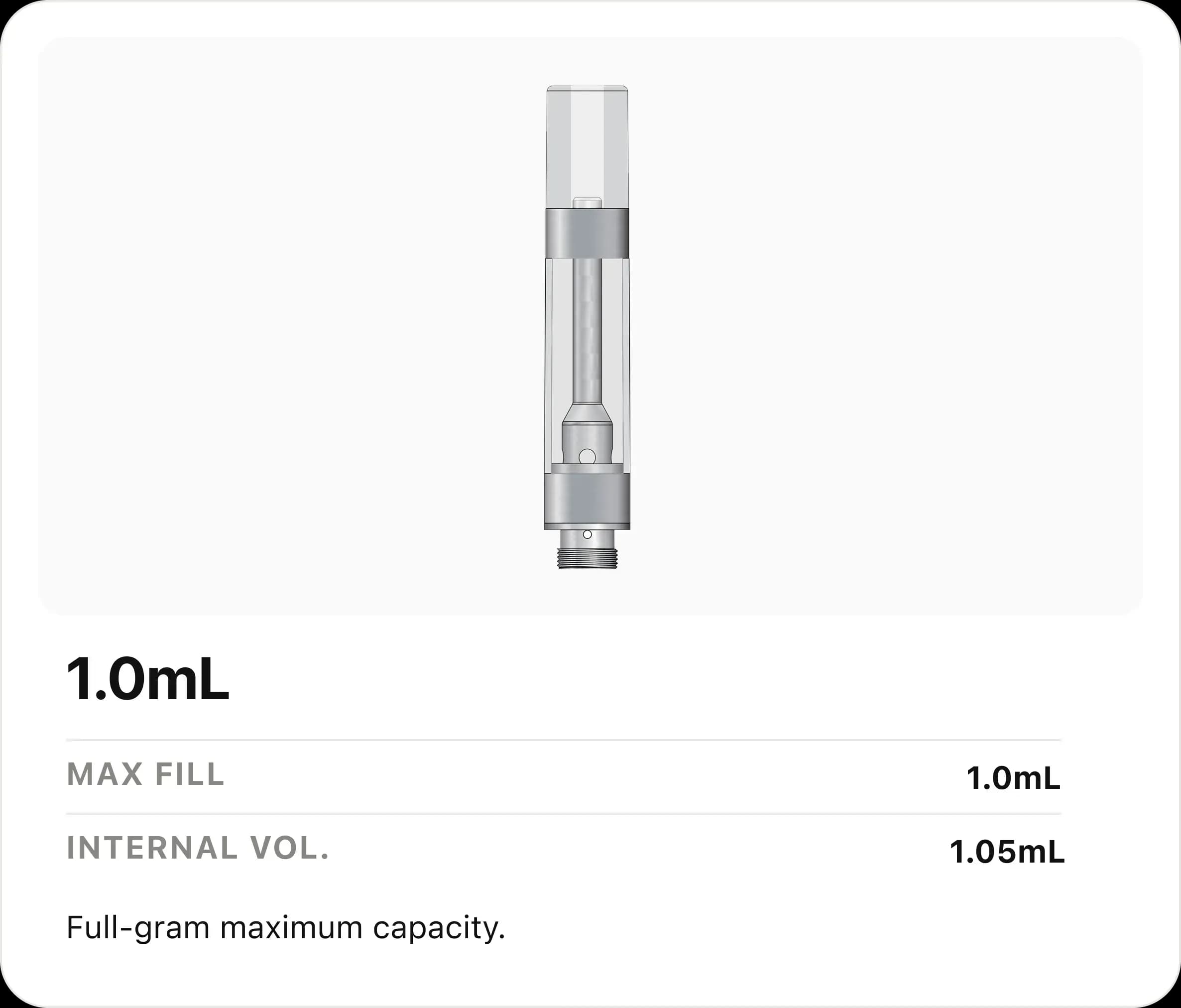

| Product Type | Top Fill Vaporizer Cartridge |
|---|---|
| Available Sizes | 0.5mL / 1.0mL |
| Max Fill Volume | 0.50mL / 1.00mL |
| Internal Volume | 0.55mL / 1.05mL |
| Power Reference | 3.5V (0.5W) |
| Standard Fluid Inlet | 2.0mm |
| Optional Fluid Inlet | 1.0–2.5mm |
Overall height depends on the installed mouthpiece configuration — reference heights from the page-3 dielines.

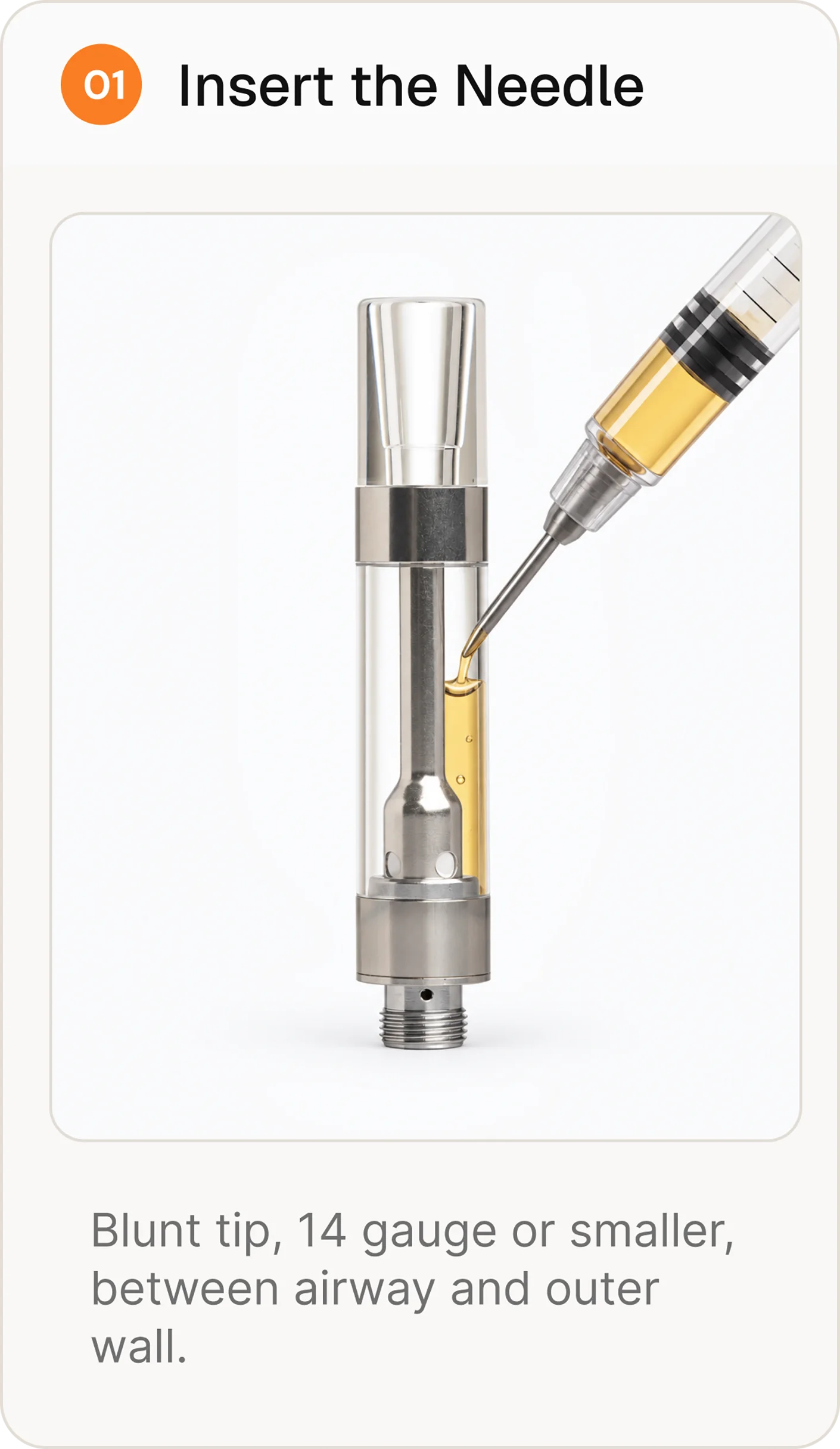

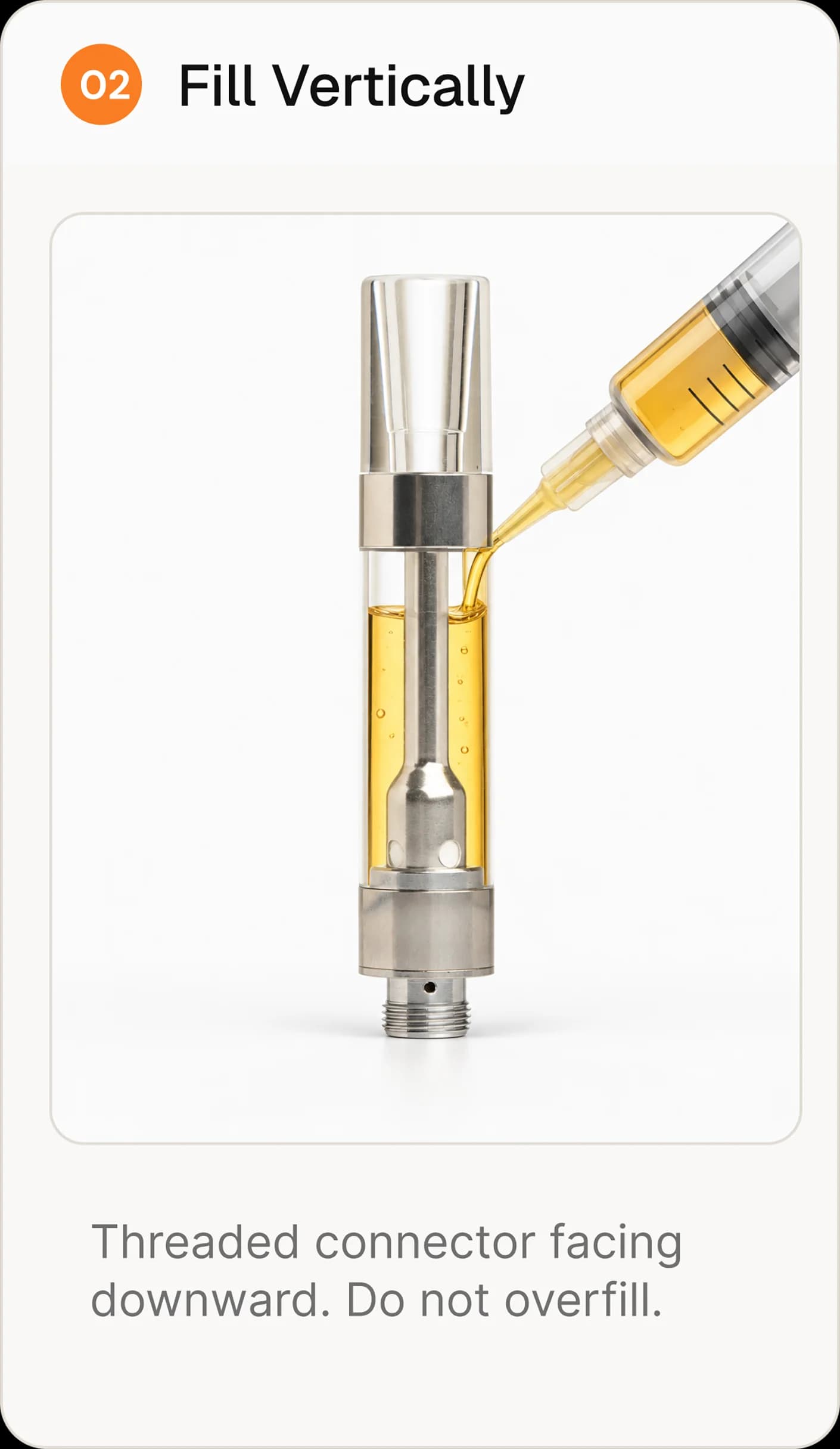

Use a blunt-tipped needle, 14 gauge or smaller. Never allow fluid into the center airway tube.
Silk Printing
MOQ 1,000Extra 2–3 days
Powder Coating
MOQ 1,000Extra 1–2 days
Laser Engraving
MOQ 5,000Extra 3–4 days
Electroplating
MOQ 10,000Extra 3–4 days
Soft Touch
MOQ 10,000Extra 5–7 days
Matte & Glossy Finish
Have questions about our hardware, packaging, customization, or ordering process? Here are answers to the questions we hear most often.

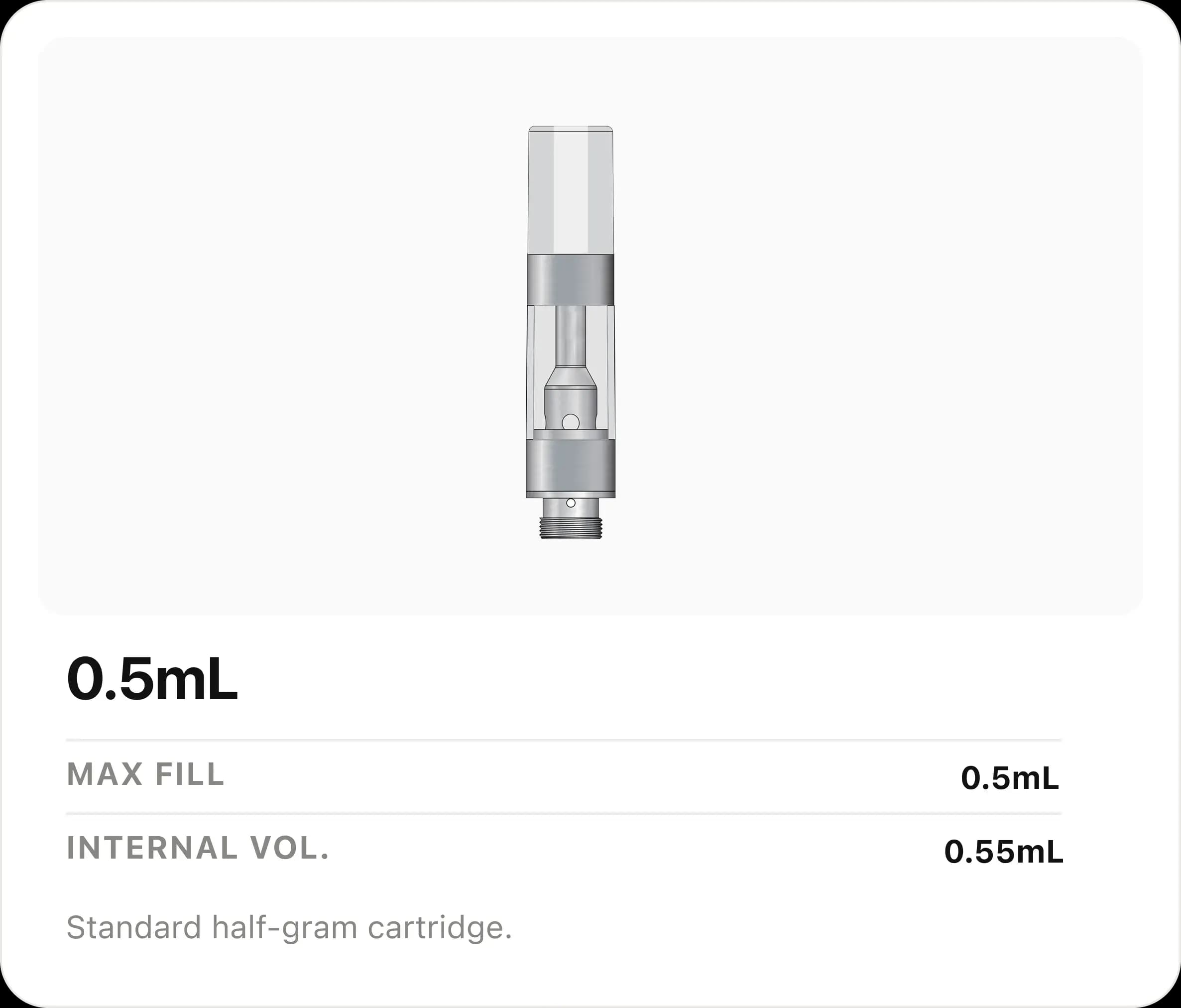

0.5mL (0.55mL gross) and 1.0mL (1.05mL gross).
304/316 stainless-steel shell, base, and airway with porous ceramic wick and silicone seals. Housing specified as glass.

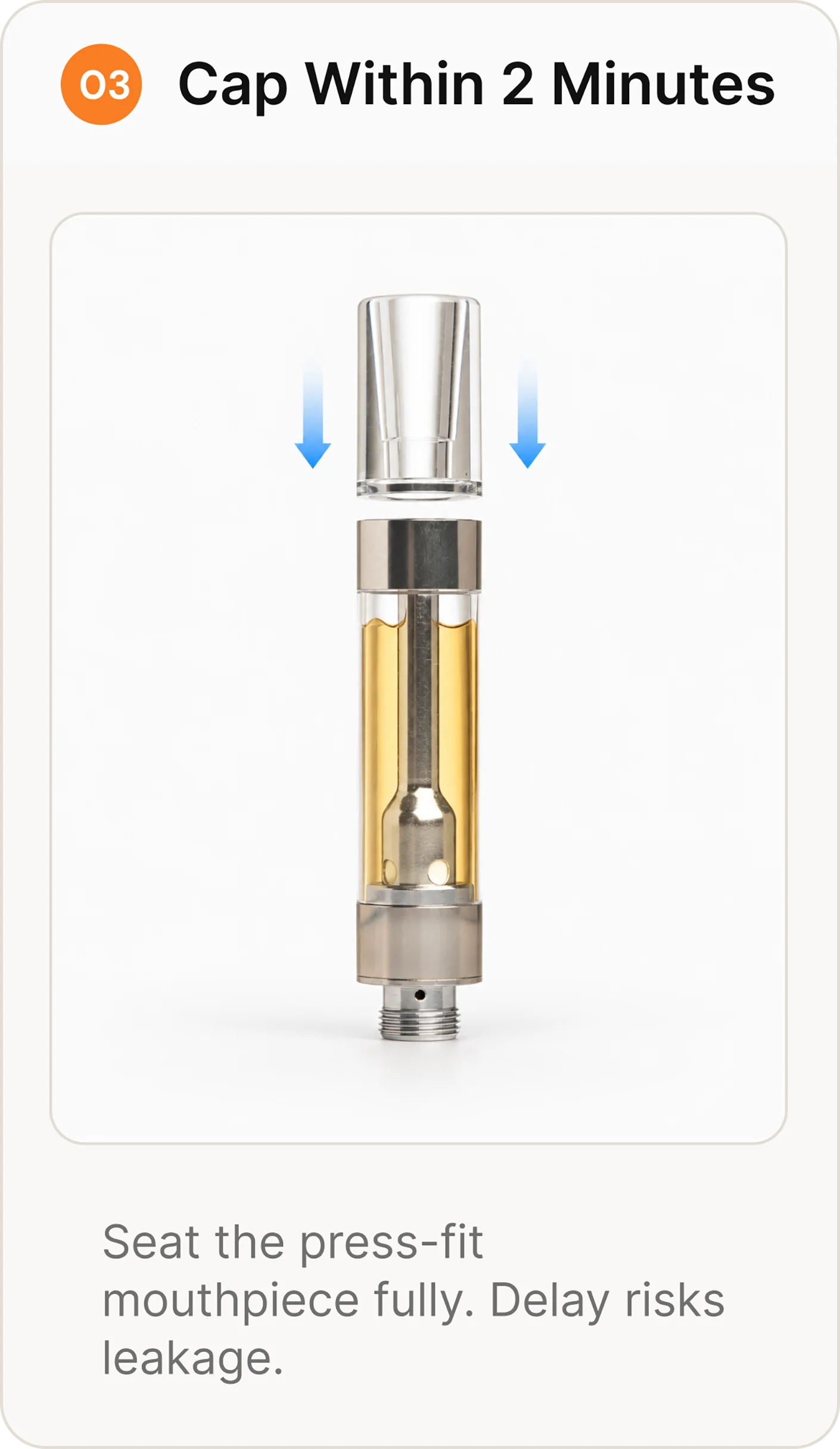

Press-fit mouthpiece configuration, seated with controlled pressure.
106.5 kgf/cm² (10,444 kPa / 1514.8 PSI).

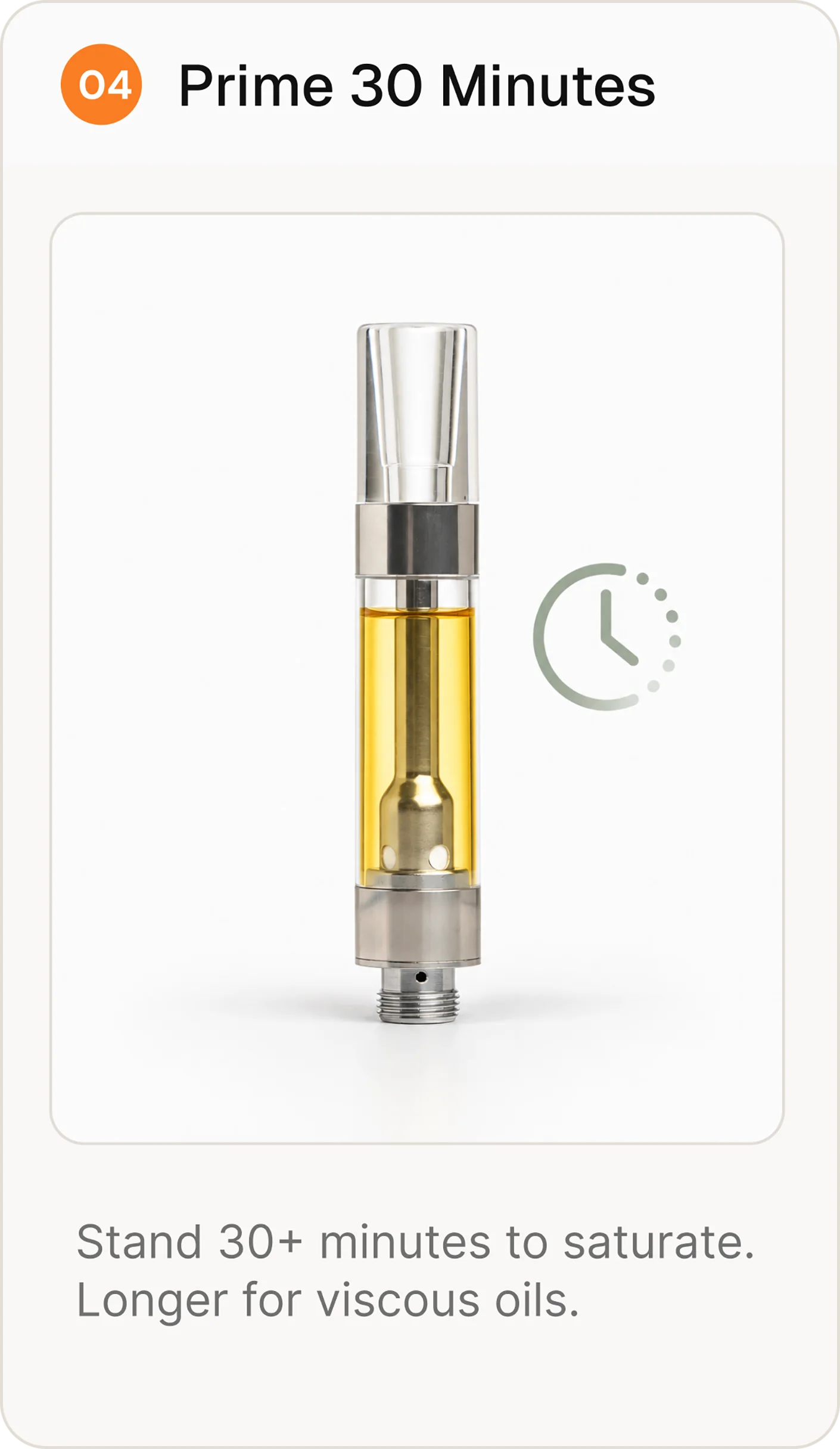

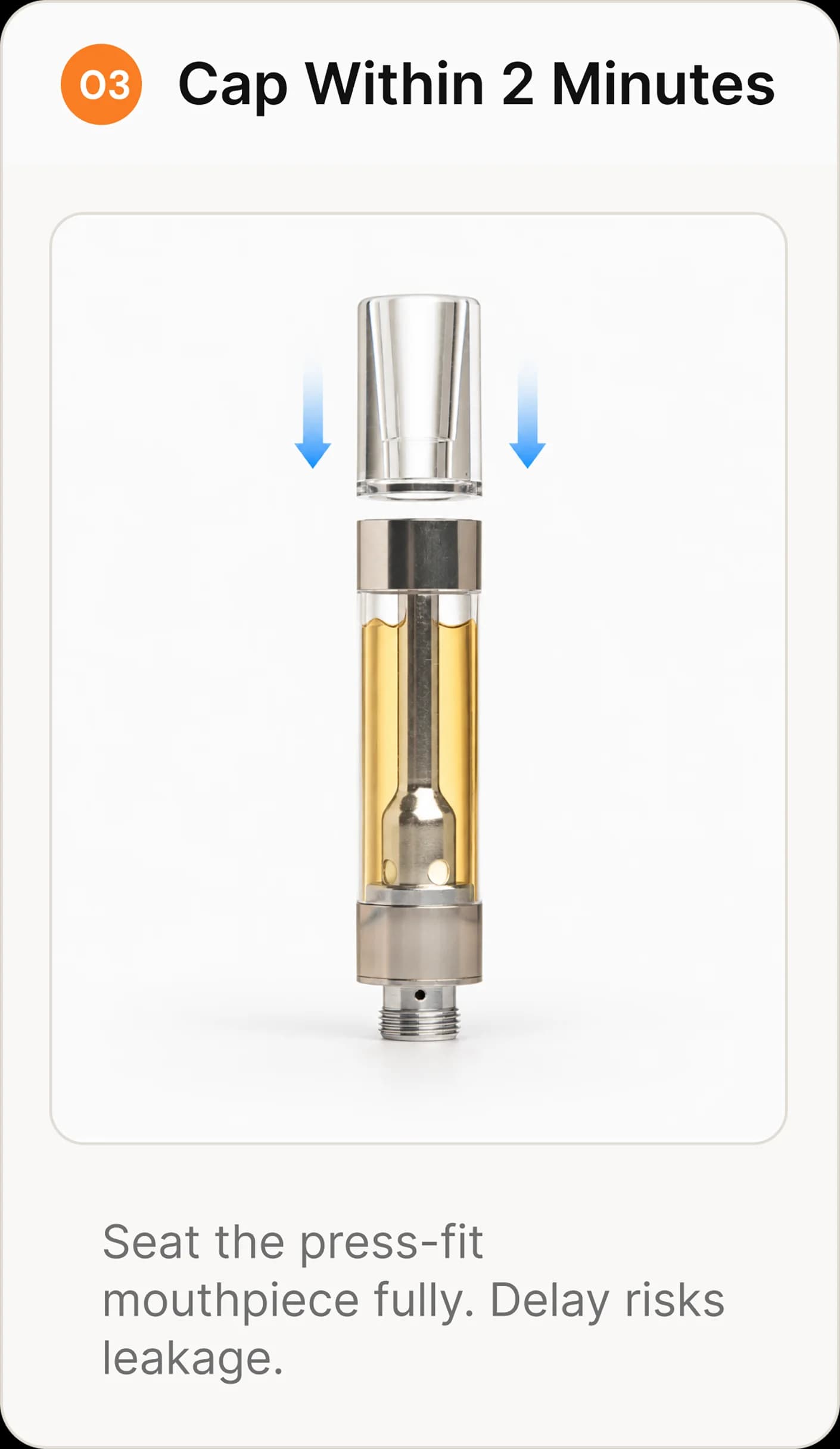

Install within 2 minutes, then rest at least 30 minutes — longer for viscous oils.
Still have questions? Email us at hello@rectitudepartners.com
Universal 510 / M7 threaded connection for standard batteries.
Supports oils from 1,000–110,000 cps with tunable inlets.
Power and inlet-size configurations tune vapor feel and taste.
| Viscosity Range | 1,000–110,000 cps |
|---|
| Connection | 510 / M7 threaded |
|---|
| Cap Method | Press Fit |
|---|

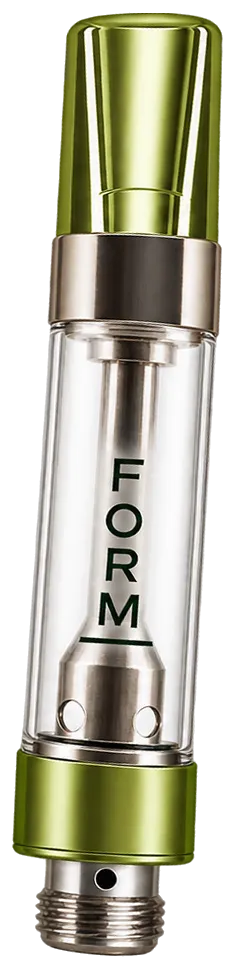

| Branding Options | Available with MOQ |
|---|
MOQ 10,000Extra 5–7 days
Color Mouthpieces
MOQ 10,000Extra 5–7 days
Paper Wraps
CustomAvailable option
