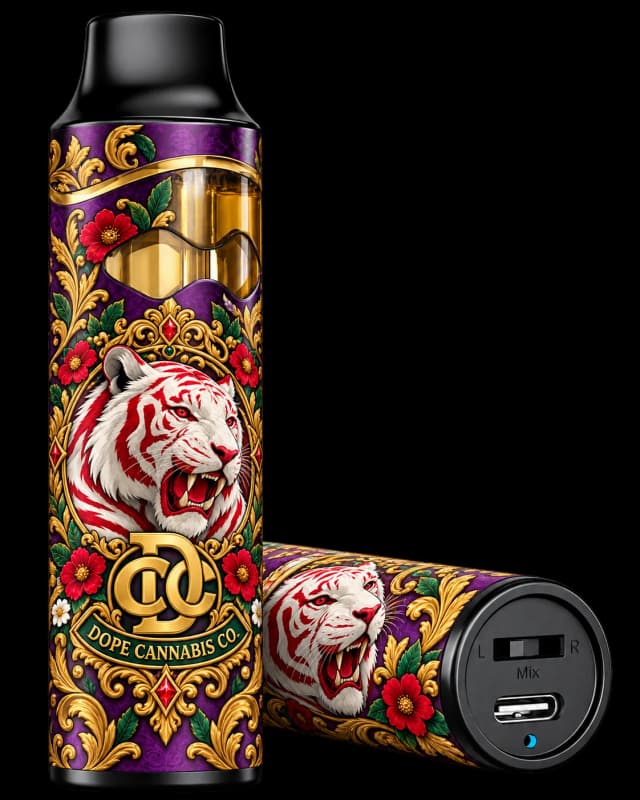

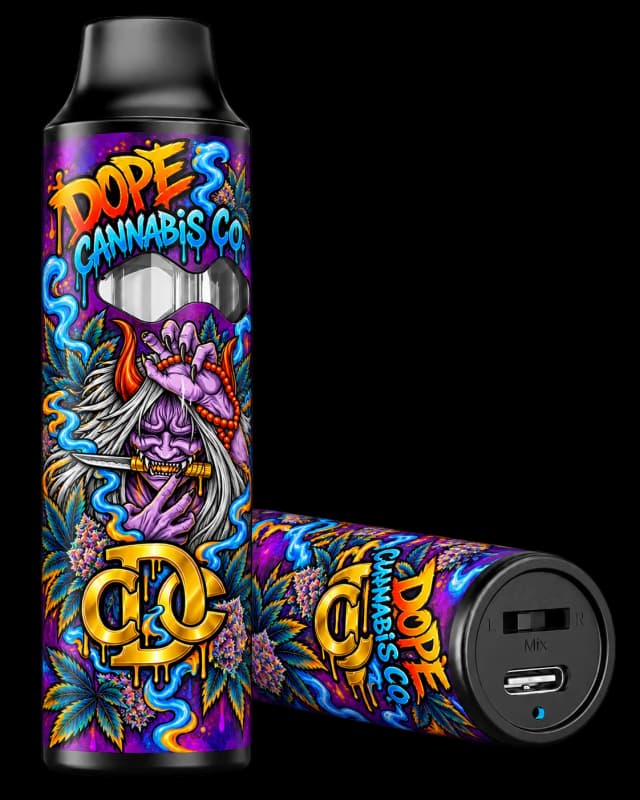

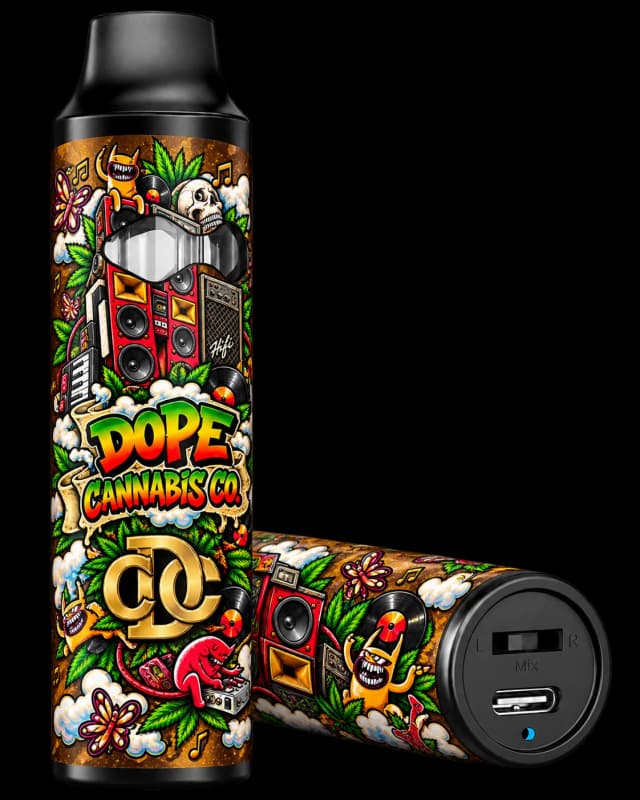

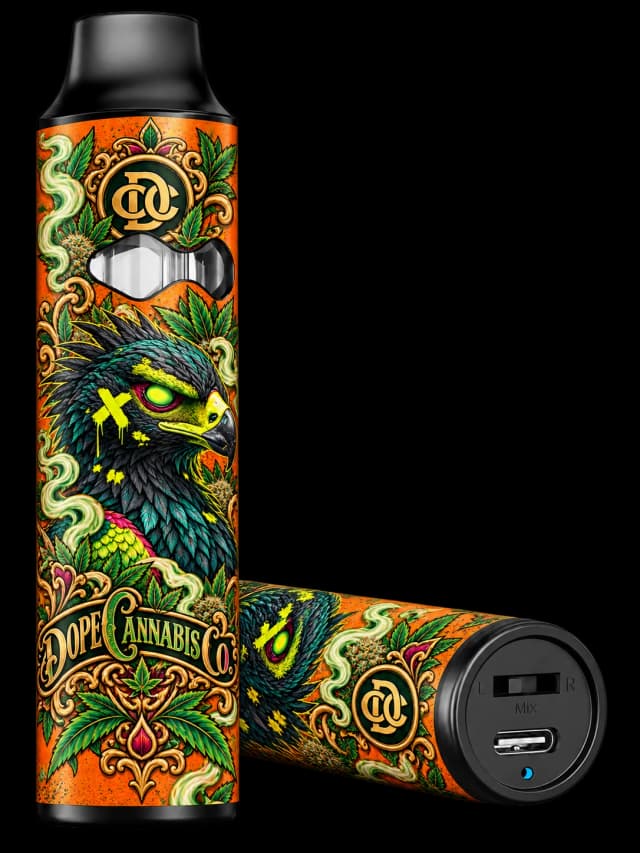

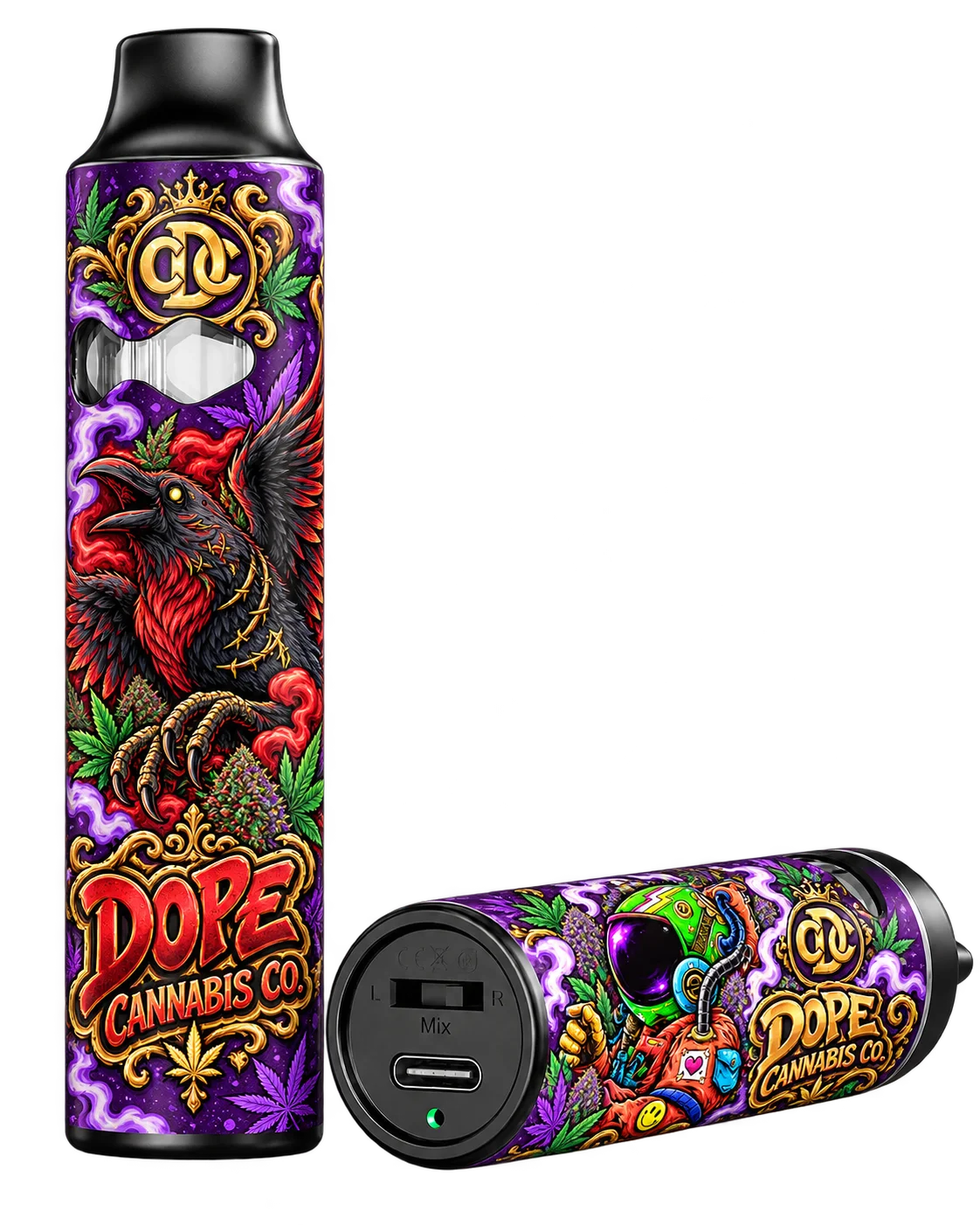

REVNA DUO AIO
A dual-chamber disposable vape featuring three flavor options, postless and cotton-free construction, low-temperature oil presentation, and a rechargeable 400mAh battery.
See the dual-tank system, flavor selection, filling process, charging details, and production solution up close.
Complete specification data for procurement, formulation, and compliance purposes.
| Product | Product |
|---|---|
| Product Type | Dual-Chamber Disposable Vape |
| Version / Size | 0.5+0.5mL / 1+1mL |
| Max. Fill Volume | 0.5+0.5mL / 1+1mL |
| Dimensions | Ø20 × 87.4mm |
| Standard Power | 2.8V / 3.6V |
When smoking exceeds load limits and a short circuit occurs, the red light stays on for 2 seconds, then the device enters dormancy.
Normal draw time is 8 seconds. If it exceeds 8 seconds, the indicator light turns off and output stops.
Charging
Green light stays on while charging
Silk Printing
MOQ 3,000Extra 2–3 days
Laser Engraving
MOQ 5,000Extra 3–4 days
Rubber Soft Touch
MOQ 10,000Extra 3–4 days
Matte & Glossy Finish
MOQ 10,000Extra 5–7 days
Color Mouthpieces
MOQ 10,000Extra 5–7 days
+18°C to +26°C
40–60% RH
Have questions about our hardware, packaging, customization, or ordering process? Here are answers to the questions we hear most often.
REVNA DUO is available in 0.5+0.5mL and 1+1mL dual-chamber configurations. Both use the same Ø20 × 87.4mm body size.
Three: Flavor A (first chamber only), Flavor B (second chamber only), and Flavor A+B (both chambers simultaneously).
The standard power options are 2.8V and 3.6V. Additional power options are available upon request.
There is no specific requirement for the needle’s outer diameter. The product sheet states it fits with filling machines or syringes.
If a short circuit occurs, the red light stays on for 2 seconds. The device then enters a dormant state.
Still have questions? Email us at hello@rectitudepartners.com
| Additional Power Options |
|---|
| Available upon request |
| Standard Resistance | 1.4 ± 0.1Ω |
|---|
| Activation | Mouth Activated |
|---|
| Battery Capacity | 400mAh |
|---|
| Viscosity Range | 1,000–110,000 cps |
|---|
| Charging Port | Type-C |
|---|
Fully Charged
Green light flashes 10× then turns off
Paper Wraps
MOQ 10,000Extra 5–7 days
Completely seal both semi-finished and packaged products with protective film.
Recharge the battery every 180 days using standard procedures.

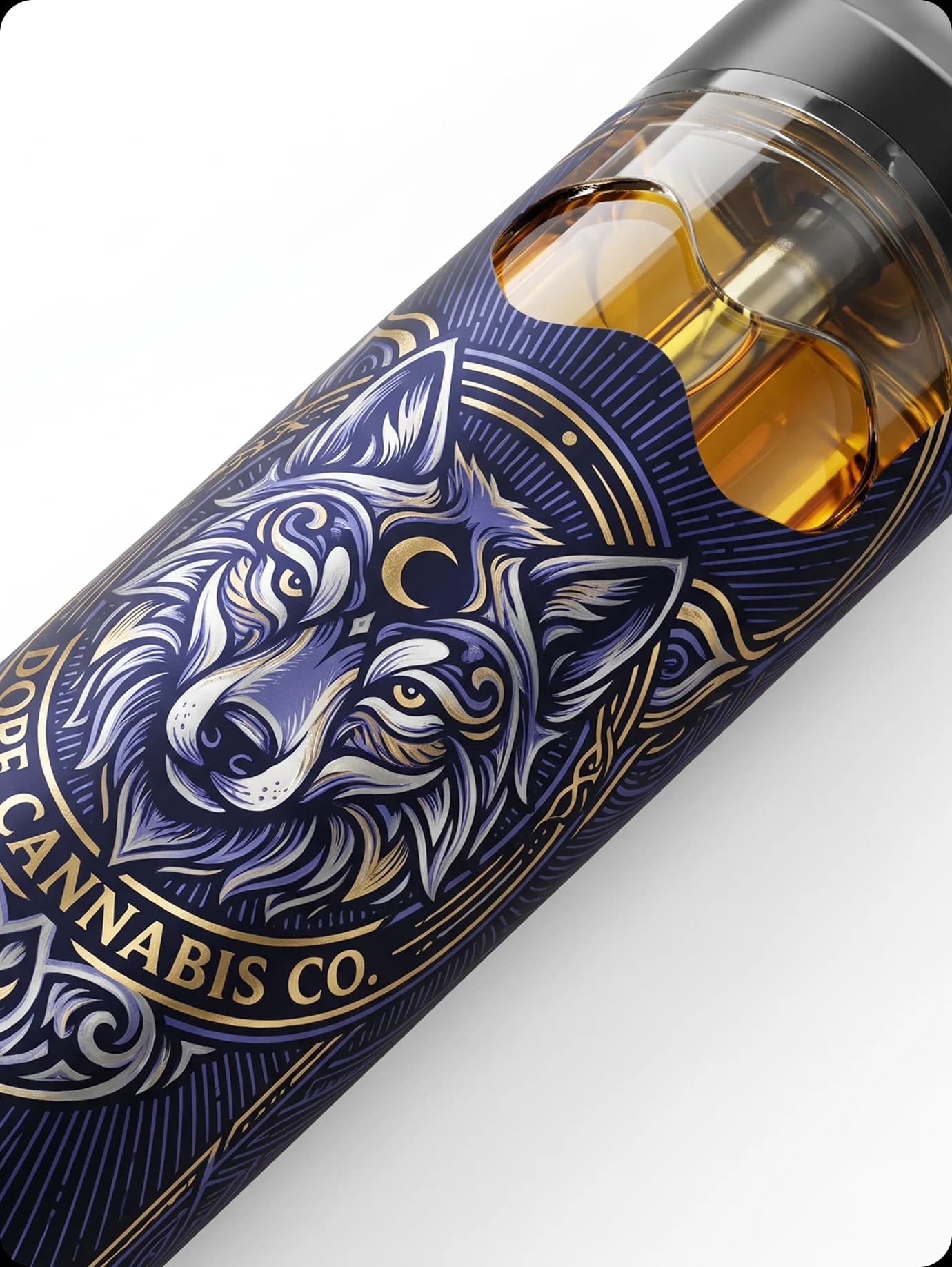

Dual-tank construction supports three flavor configurations: A, B, or A+B combined.
No central post, no cotton, no wick. No chance of failure in heavy metal testing.
Phenomenal showcasing of your oil — rosin, resin, or distillate at low temperature.
Powerful, durable, rechargeable 400mAh battery — larger capacity than single-chamber REVNA.
REVNA DUO uses two independent tanks with three selectable flavor configurations. Choose one chamber, the other, or both — all from a single device.
Single flavor output from the first chamber.
Single flavor output from the second chamber.
Combined output from both chambers simultaneously.

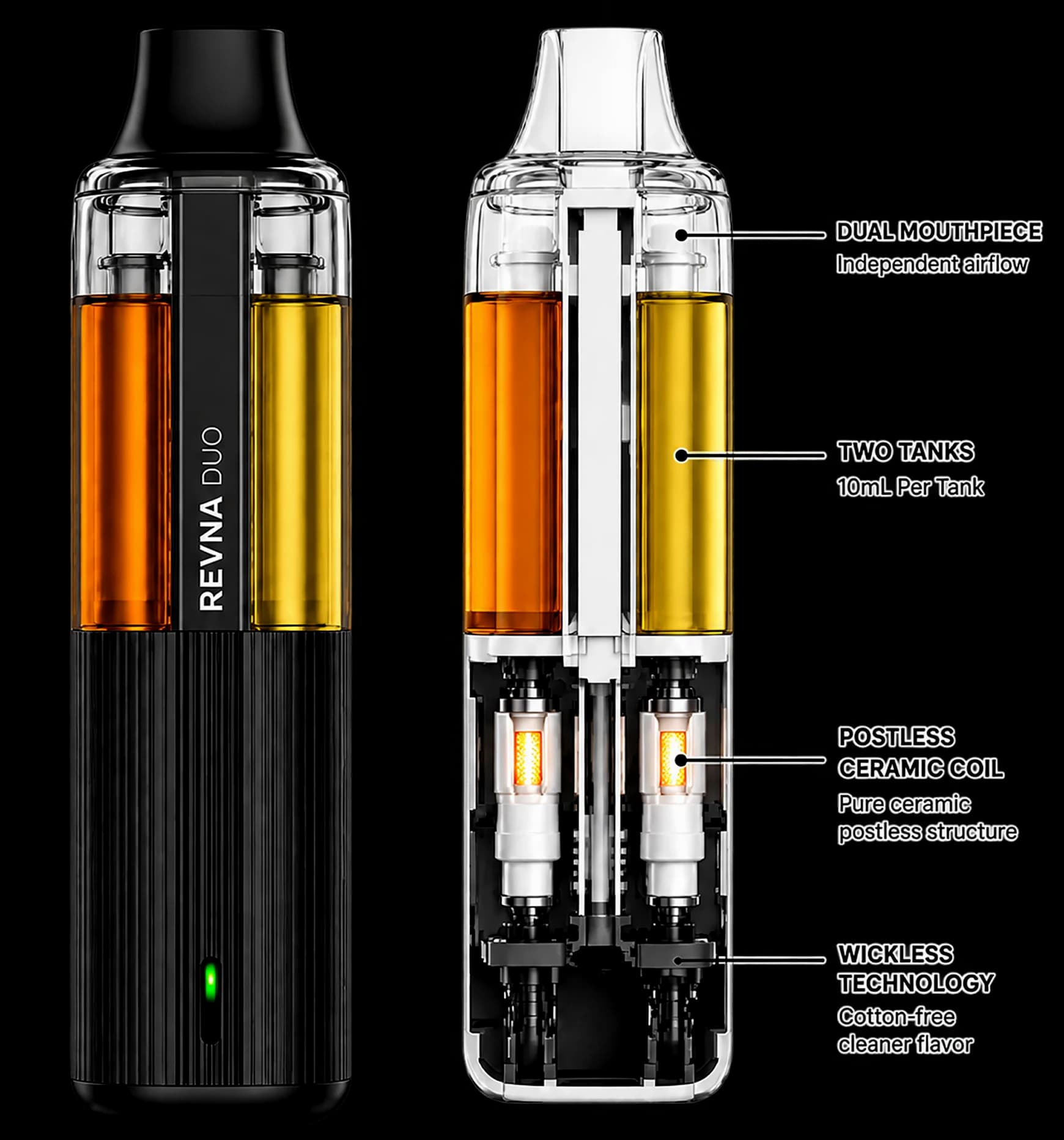

REVNA DUO combines postless tank architecture with cotton-free ceramic heating — paired with mouth activation and a 400mAh rechargeable power system.
Cotton-free heating eliminates burn taste and heavy metal risk across both chambers.
Fully wickless construction for cleaner, residue-free oil delivery.
Clear PCTG throughout for maximum oil visibility in both chambers.

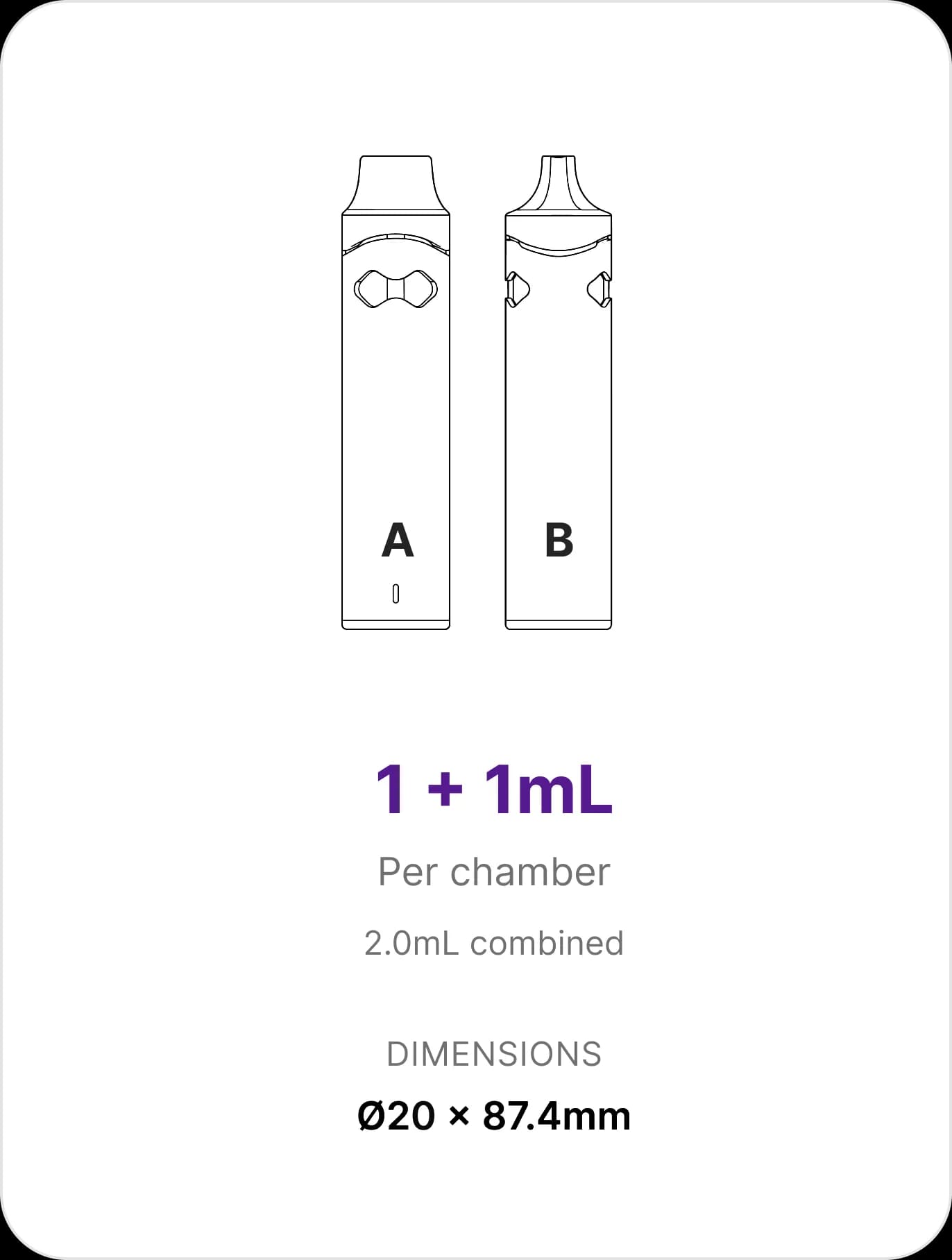

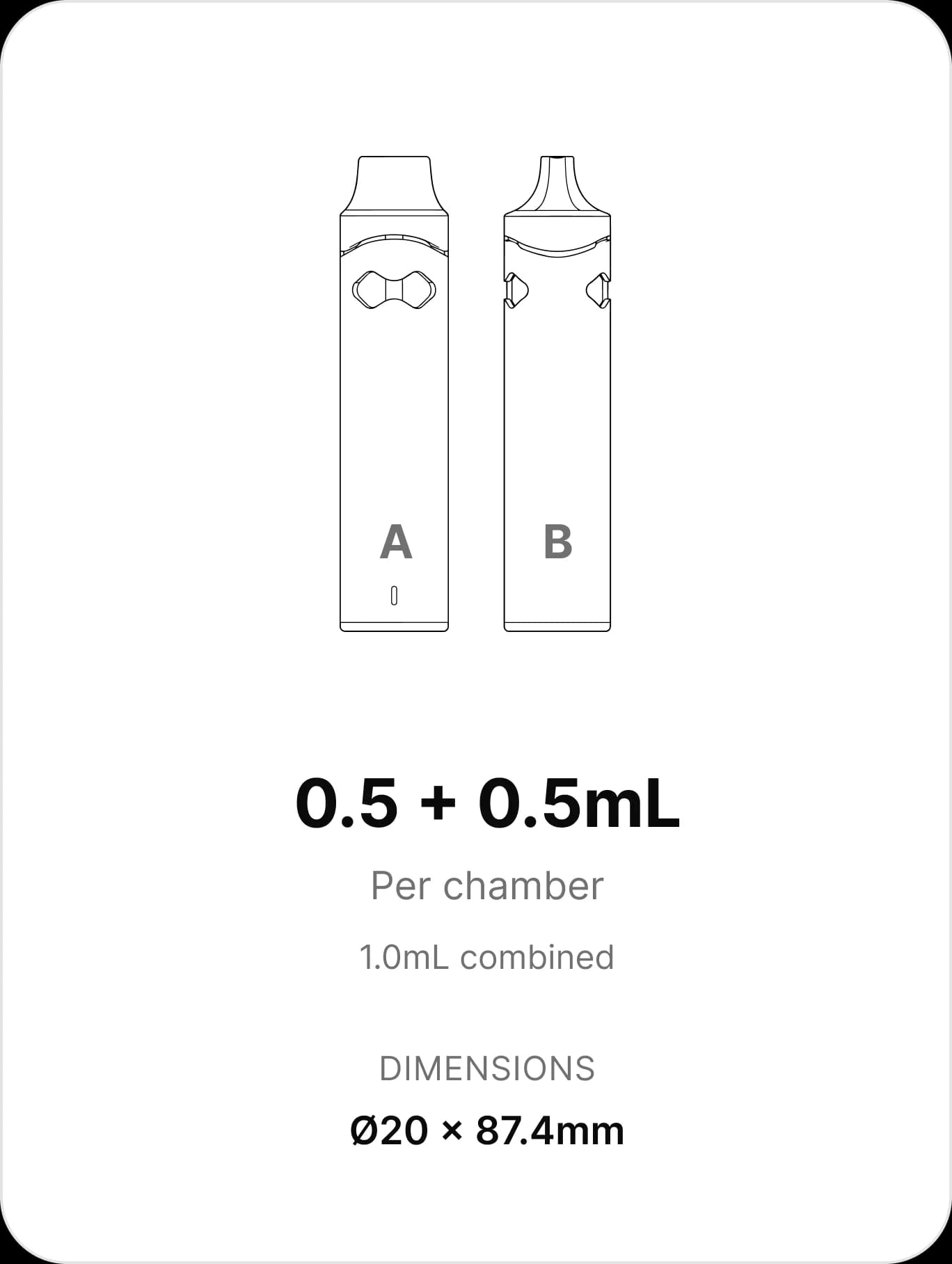

Both configurations share the same Ø20 × 87.4mm cylindrical form factor.

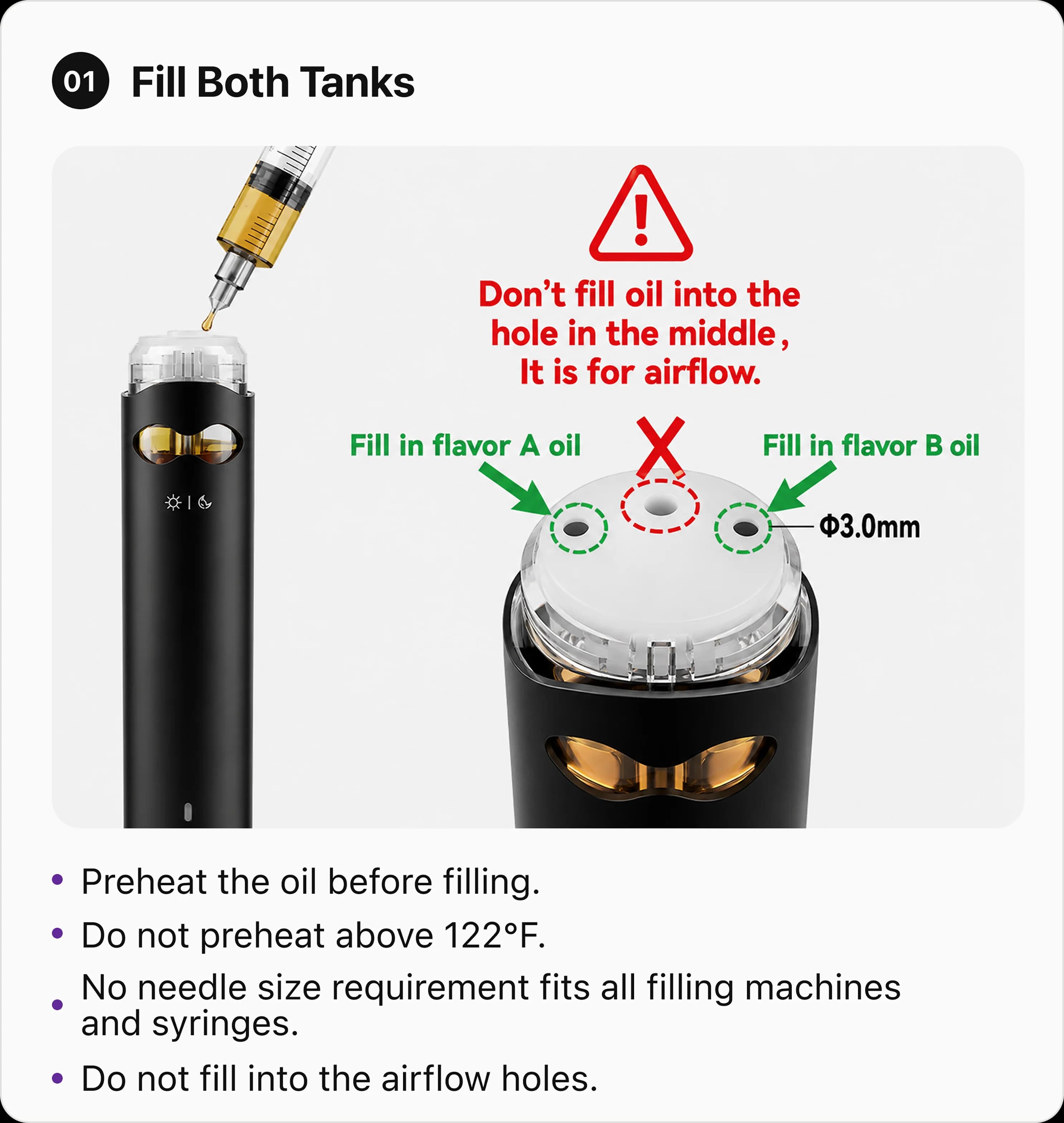

REVNA DUO accepts all needle sizes and filling machines. Fill each tank separately and do not fill into the airflow holes.

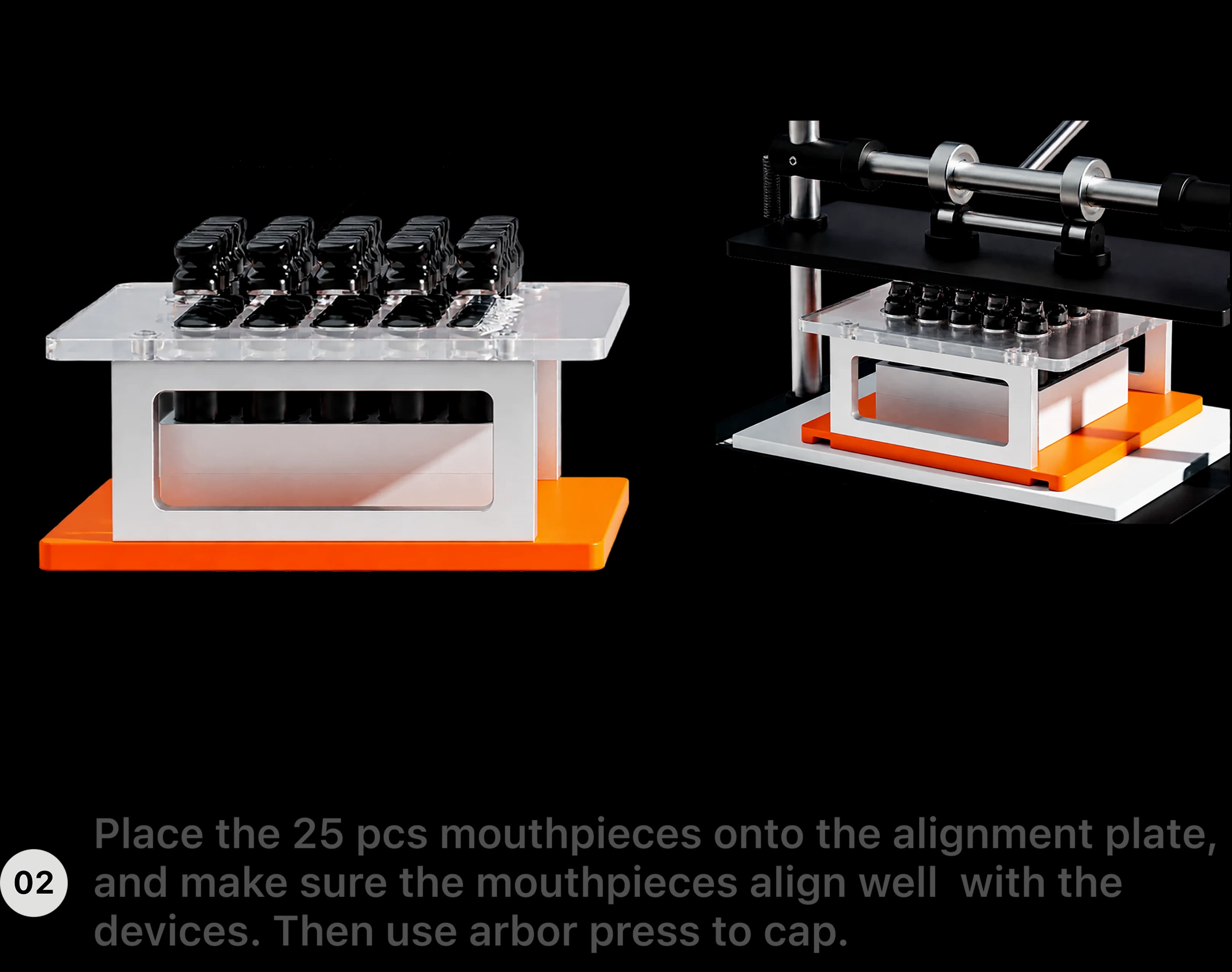

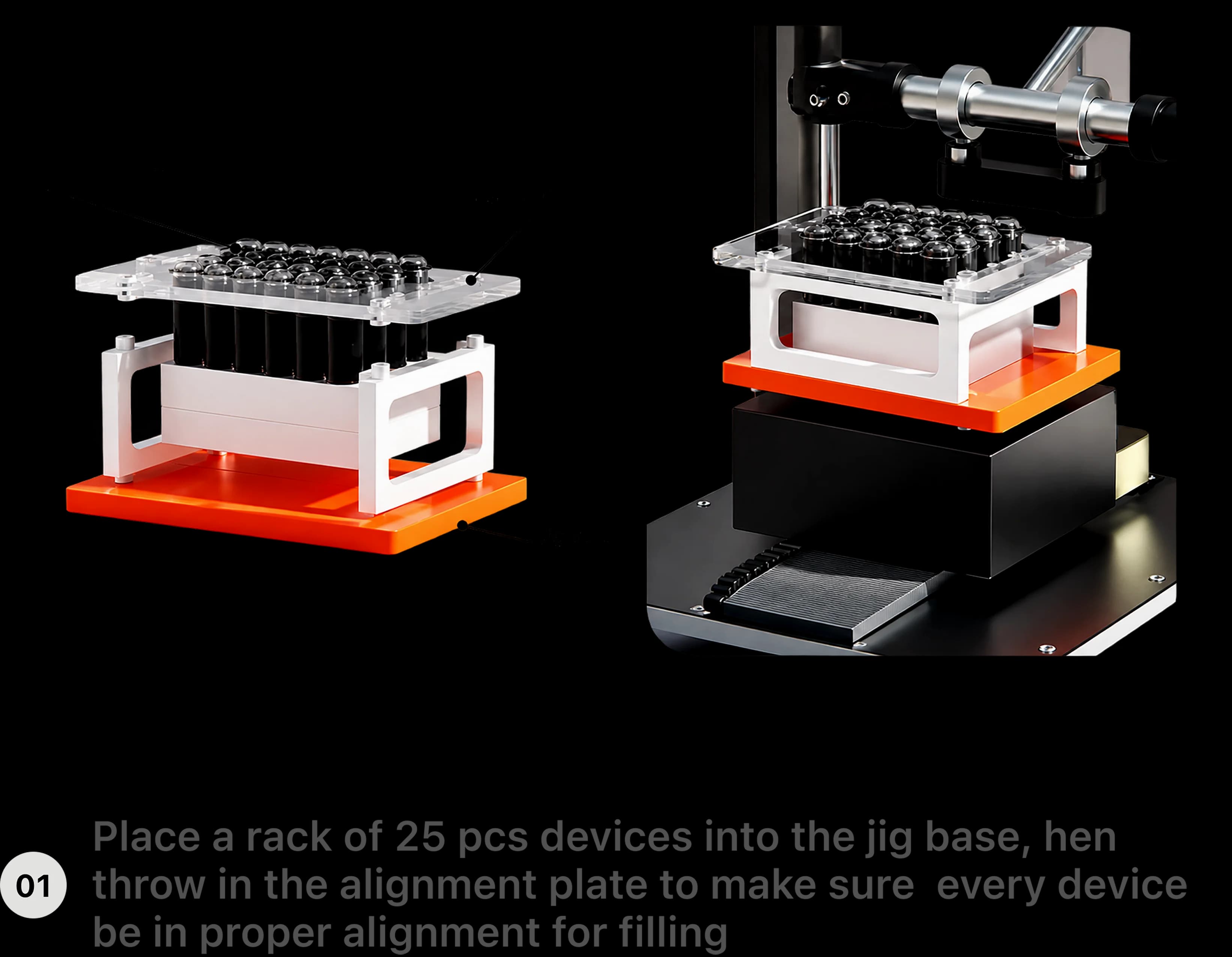

REVNA is designed to be compatible with a jig-based automation system that processes 100 devices at a time using an alignment plate and capping plate.
