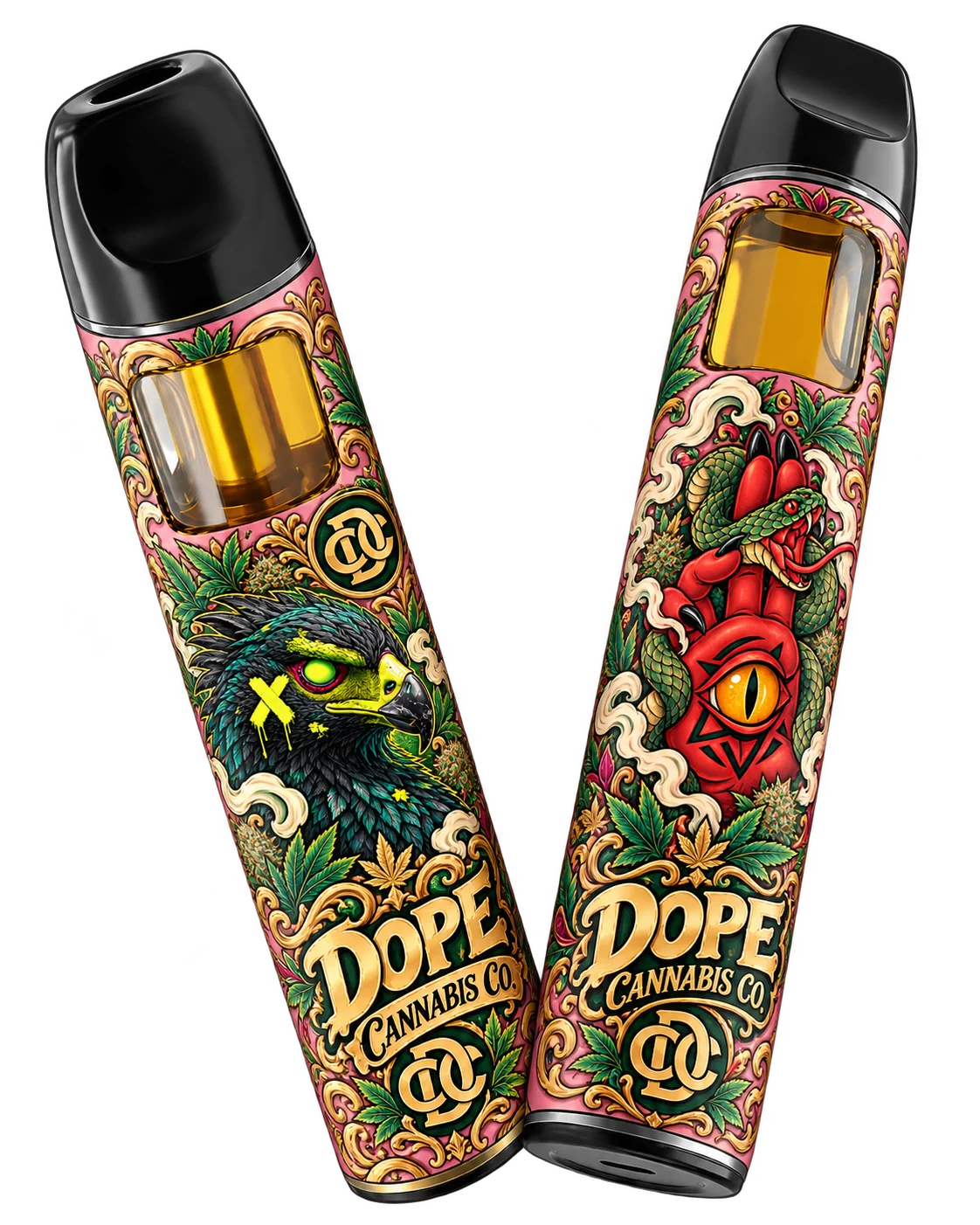

Clear-View Postless AIO Hardware
Slim 0.5mL, 1mL, and 2mL pen-style postless hardware with no central tank post, cotton-free ceramic heating, mouth activation, three standard power options, and Type-C charging.
See the slim pen-style form, clear tank, different capacities, filling process, and production system up close.
Complete specification data for procurement, formulation, and compliance purposes.
| Product | REVNA |
|---|---|
| Product Type | Pen Style Postless Disposable |
| Version / Size | 0.5mL / 1mL / 2mL |
| Max. Fill Volume | 0.5mL / 1mL / 2mL |
| Diameter | Ø14mm |
| 0.5mL Height | 79mm |
When smoking exceeds load limits and a short circuit occurs, the blue light stays on for 2 seconds, then the device enters dormancy.
Normal draw time is 10 seconds. If it exceeds 10 seconds, the white light flashes 2 times and output stops.
Charging
Screen on · Battery icon runs animation
Silk Printing
MOQ 3,000Extra 2–3 days
Laser Engraving
MOQ 5,000Extra 3–4 days
Rubber Soft Touch
MOQ 10,000Extra 3–4 days
Matte & Glossy Finish
MOQ 10,000Extra 5–7 days
Color Mouthpieces
MOQ 10,000Extra 5–7 days
+18°C to +26°C
40–60% RH
Have questions about our hardware, packaging, customization, or ordering process? Here are answers to the questions we hear most often.

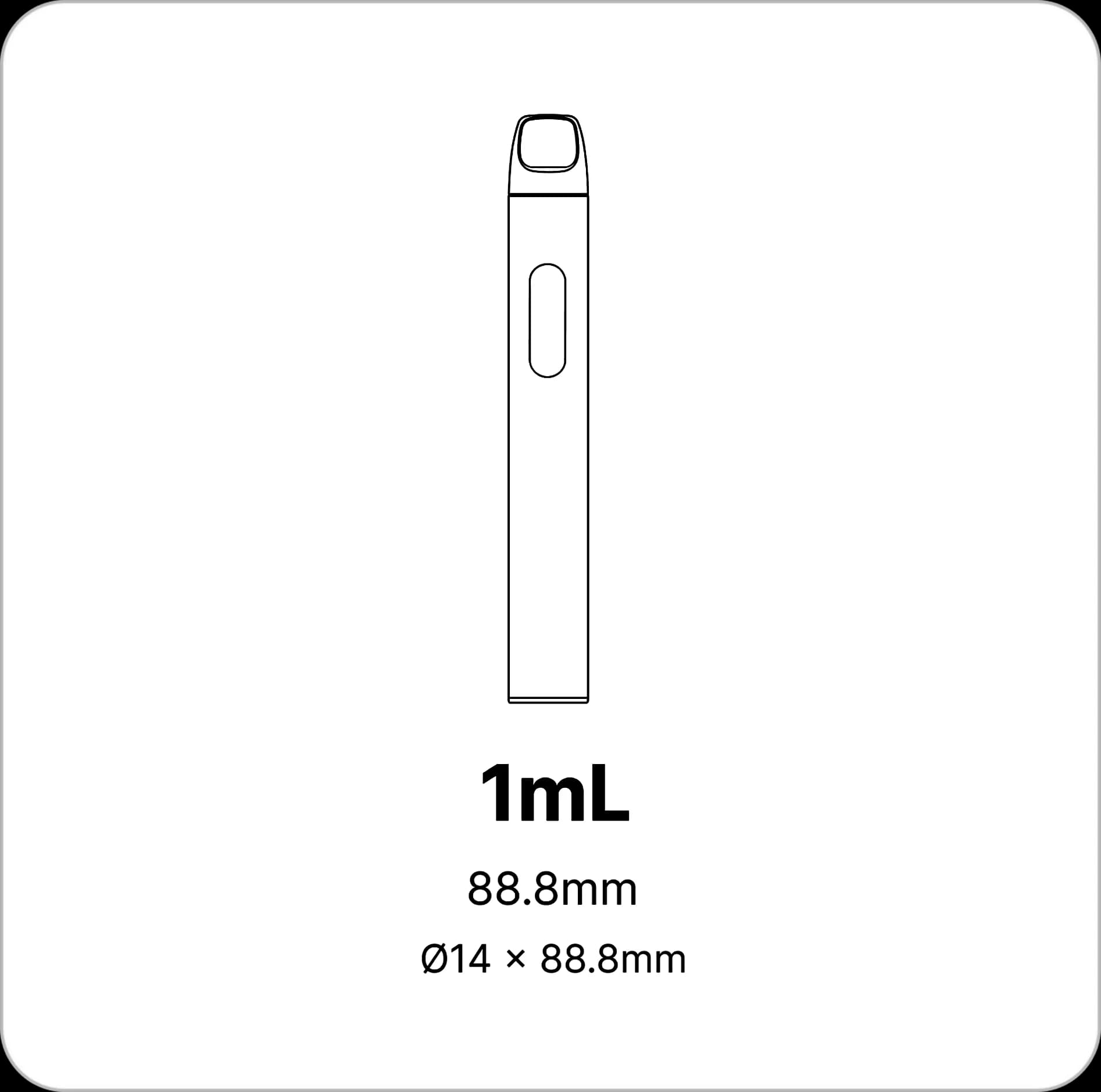

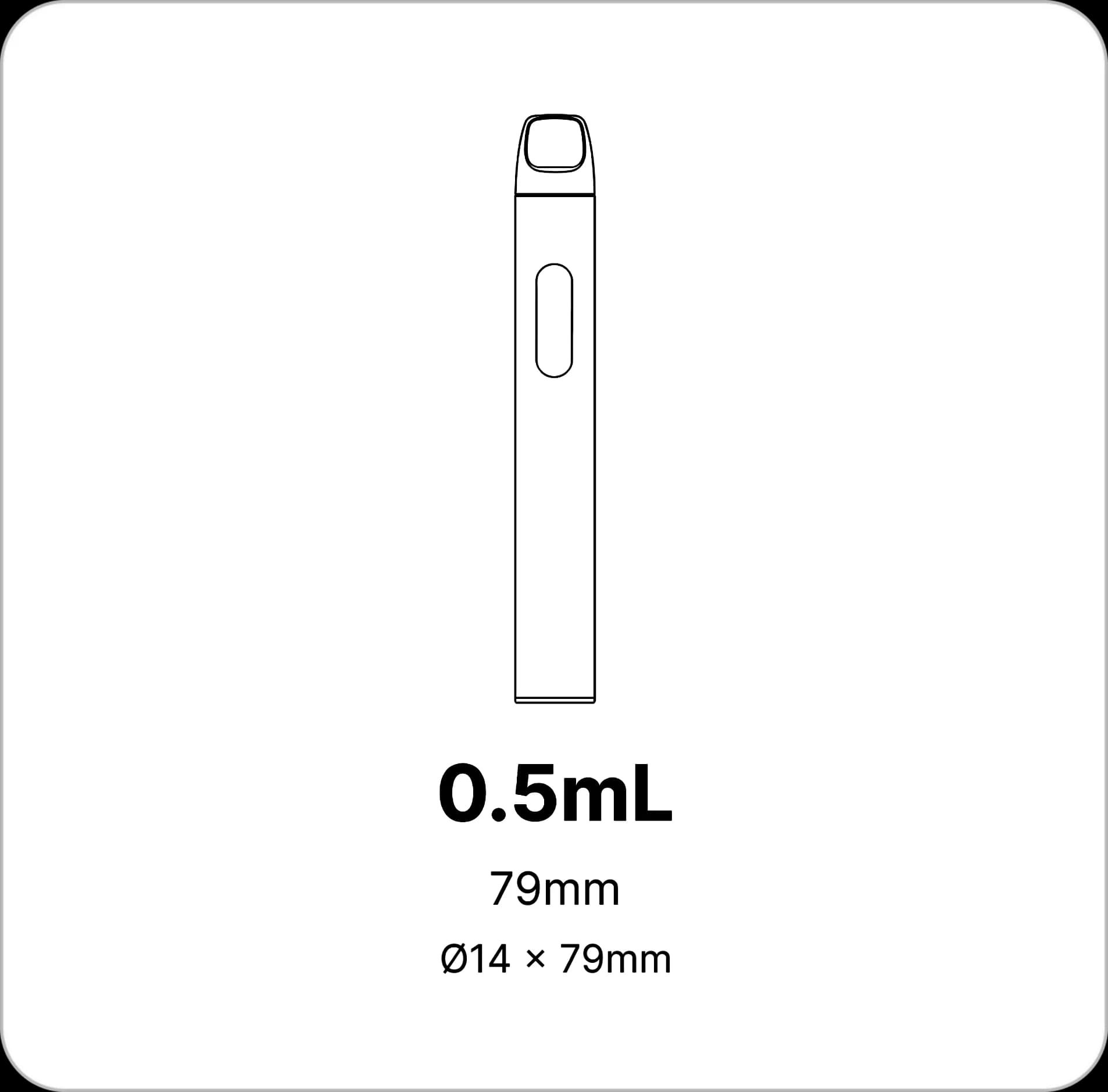

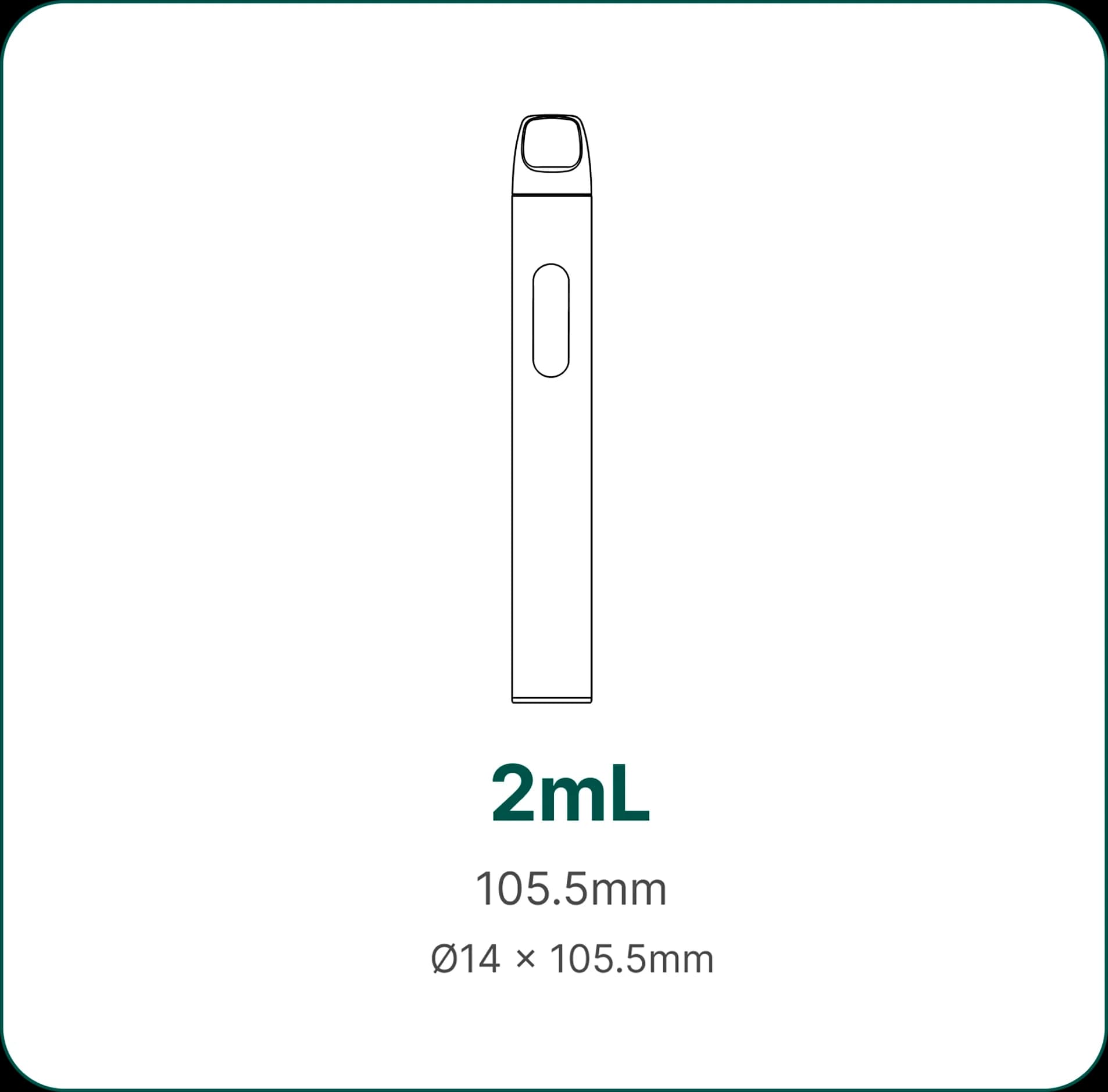

REVNA is available in 0.5mL, 1mL, and 2mL capacities. The corresponding device lengths are 79mm, 88.8mm, and 105.5mm.
REVNA has no central post in the tank, so the oil remains visually unobstructed. It is designed to better showcase rosin, resin, and distillate.

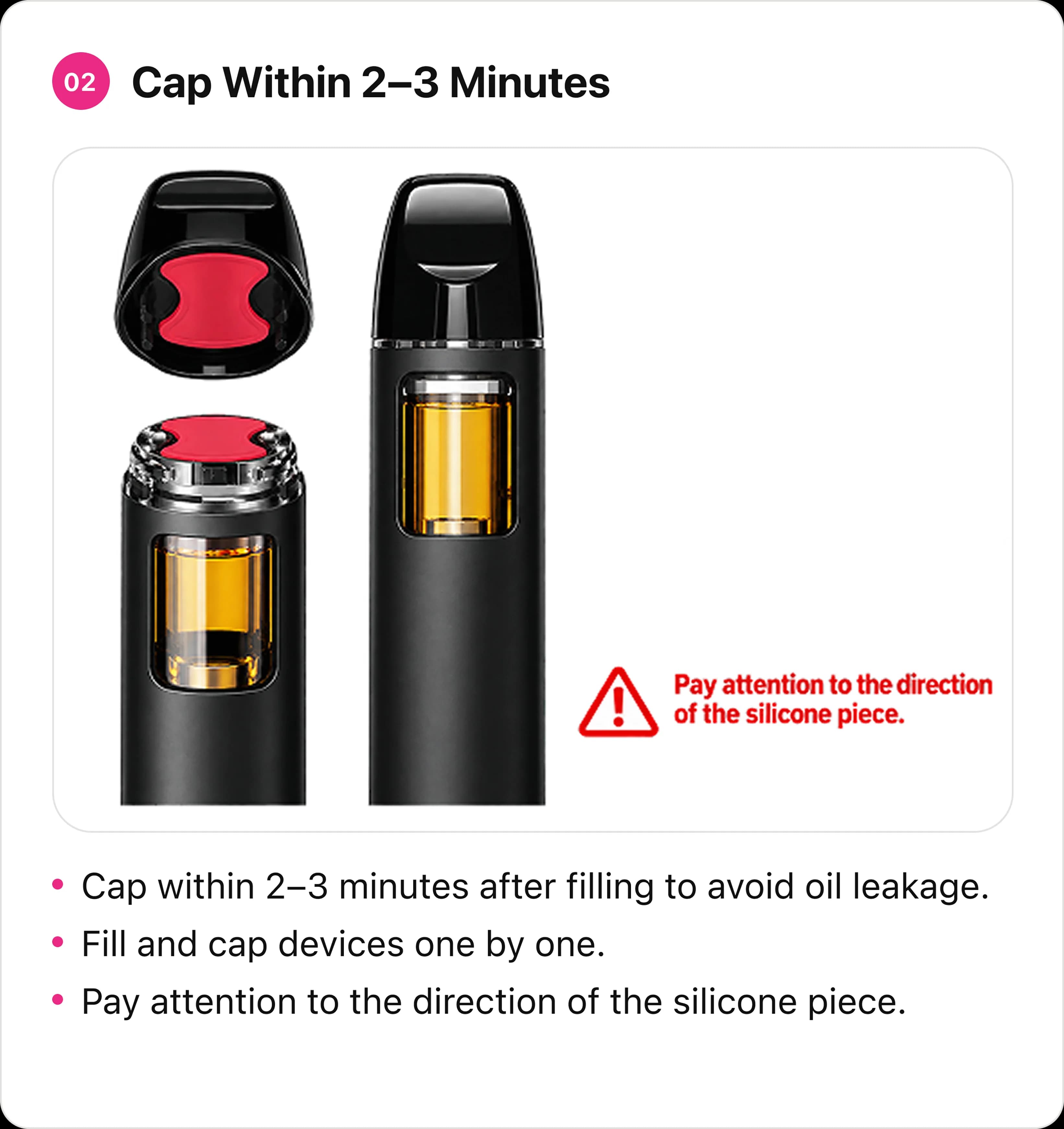

REVNA is designed to work with filling machines or syringes.
Yes. The product sheet includes an automation solution for filling and capping.
When a short circuit occurs, the blue light stays on for 2 seconds.
Still have questions? Email us at hello@rectitudepartners.com
| 1mL Height |
|---|
| 88.8mm |
| 2mL Height | 105.5mm |
|---|
| Standard Power | 2.0V / 2.4V / 2.8V |
|---|
| Additional Power Options | Available upon request |
|---|
| Resistance | 1.4 ± 0.1Ω |
|---|
| Activation | Mouth Activated |
|---|
| Battery Capacity | 280mAh |
|---|
| Viscosity Range | 1,000–110,000 cps |
|---|
| Charging Port | Type-C |
|---|
Fully Charged
Battery icon flashes 10× then stays solid
Paper Wraps
MOQ 10,000Extra 5–7 days
Seal both semi-finished and packaged products completely with protective film.
Recharge the battery every 180 days using standard procedures.

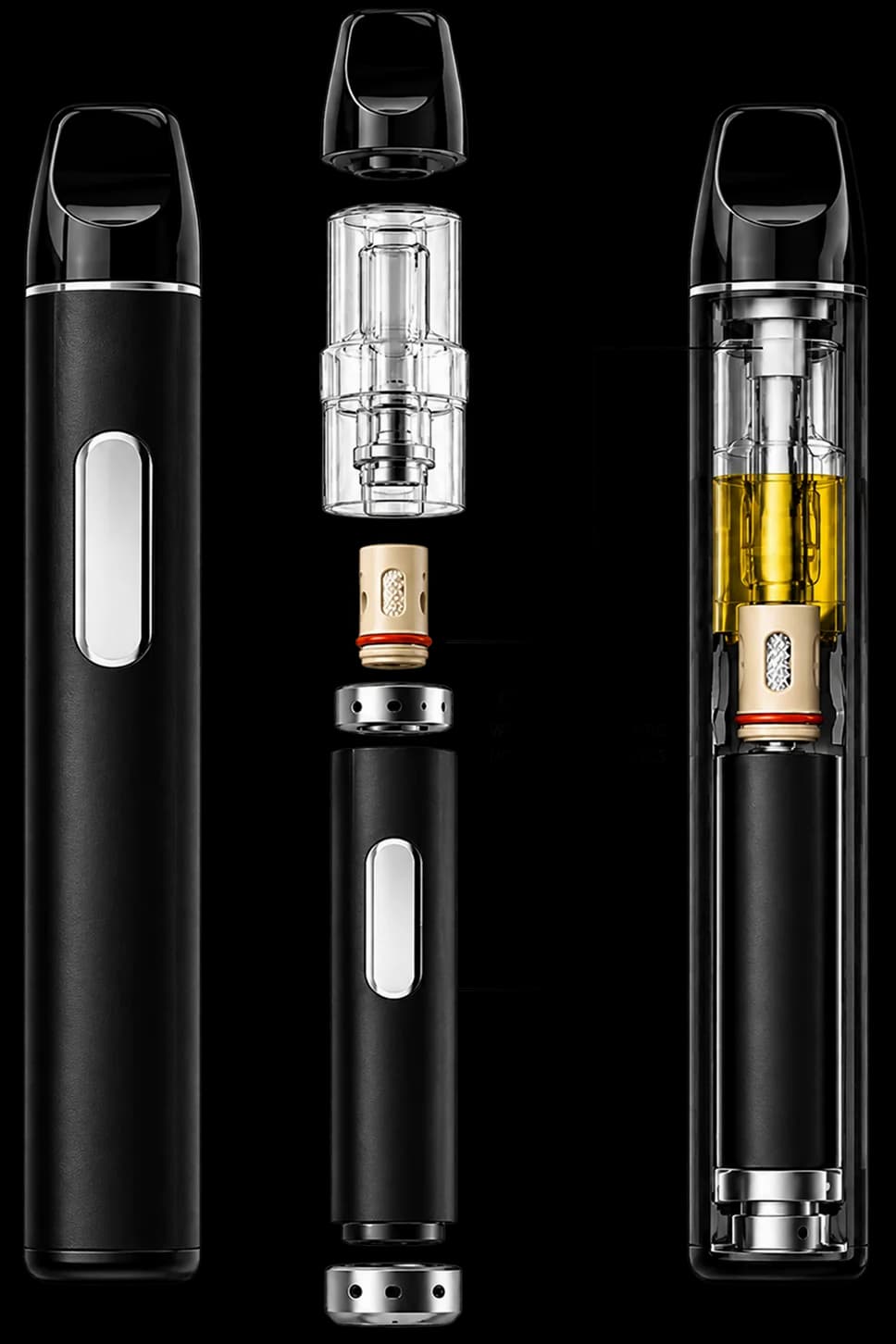

REVNA removes the central post to keep your oil clearly visible while delivering low-temperature cotton-free performance.
No central post in the tank — keeps the view of your oil completely unobstructed from every angle.
Flat ceramic coil with no cotton and wickless construction — no chance of failure in heavy metal testing.
Phenomenal showcasing of your oil. Designed for rosin, resin, or distillate.
Powerful, durable, rechargeable battery with longer battery life. Type C charging.
Choose from three standard power options to match your formulation needs. Additional options available upon request.
Low Power
Mid Power
Higher Power
1.4 ± 0.1Ω
1,000–110,000 cps
280mAh

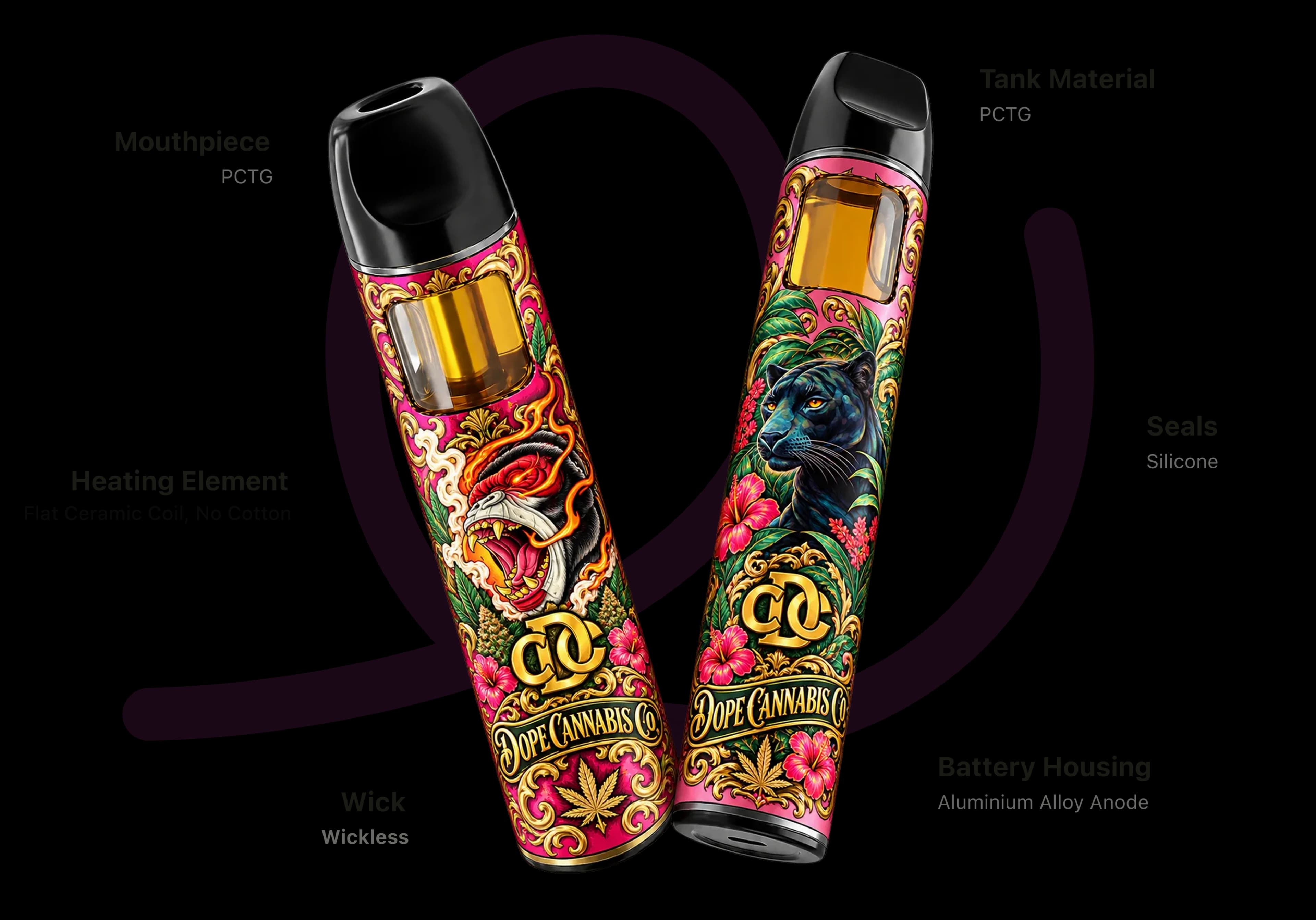

REVNA combines a postless tank design with cotton-free ceramic heating — paired with mouth activation and Type-C rechargeable power for a cleaner, simpler hardware system.
Cotton-free heating eliminates burn taste and heavy metal contamination risk.
PCTG tank material provides clarity and chemical resistance.
Three pen-style options sharing the same Ø14mm diameter — heights scale with volume.

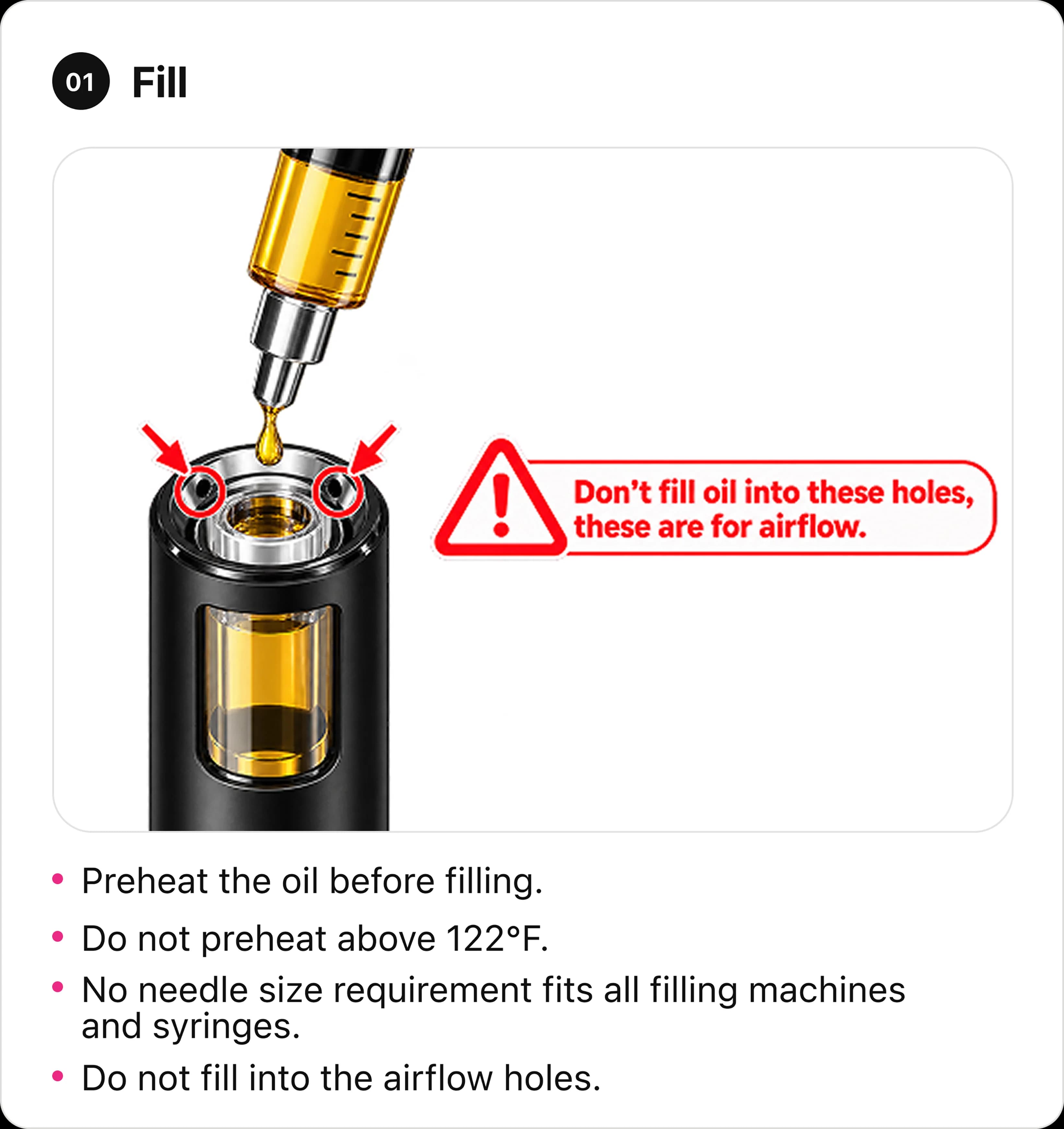

REVNA accepts all needle sizes and filling machines. Do not fill into the airflow holes.

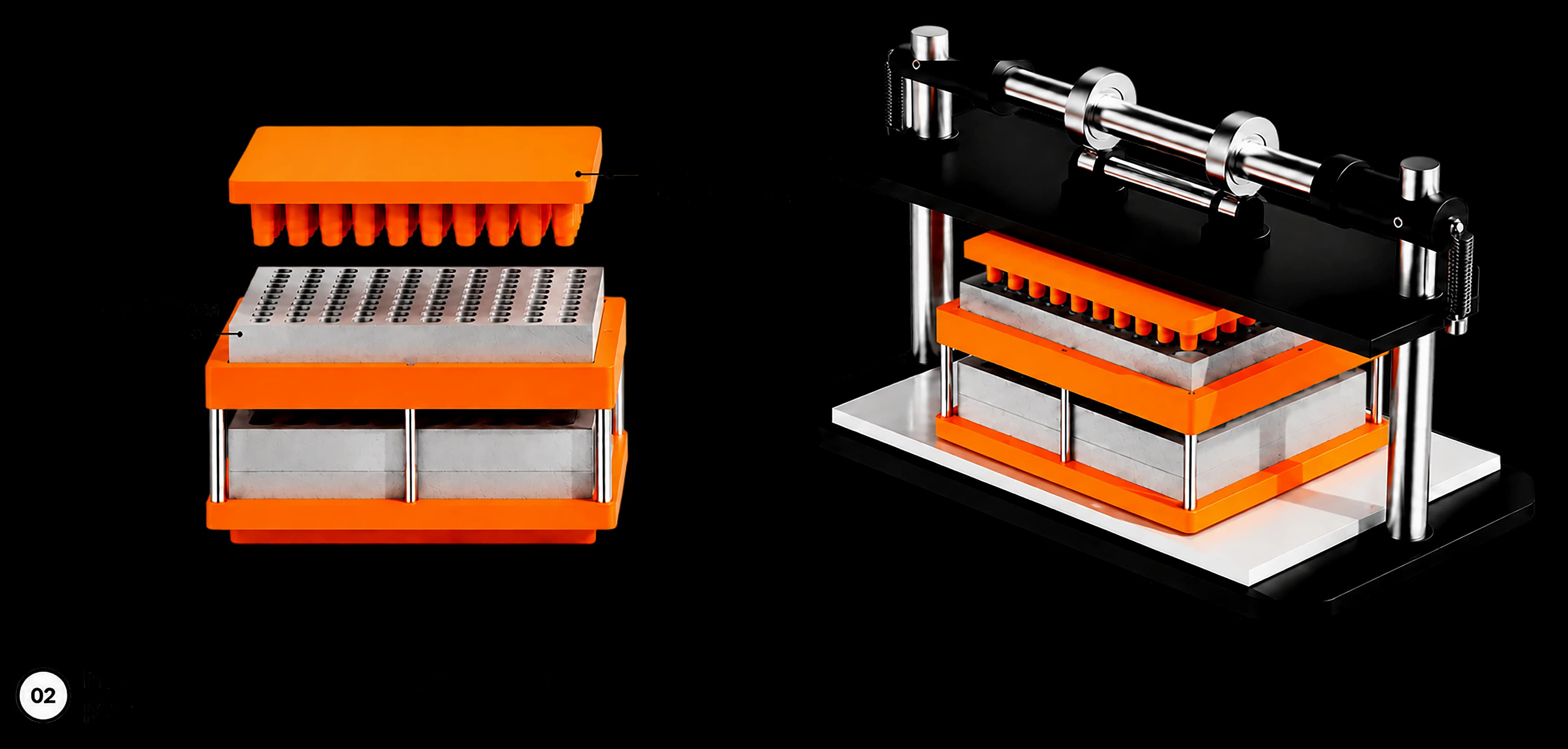

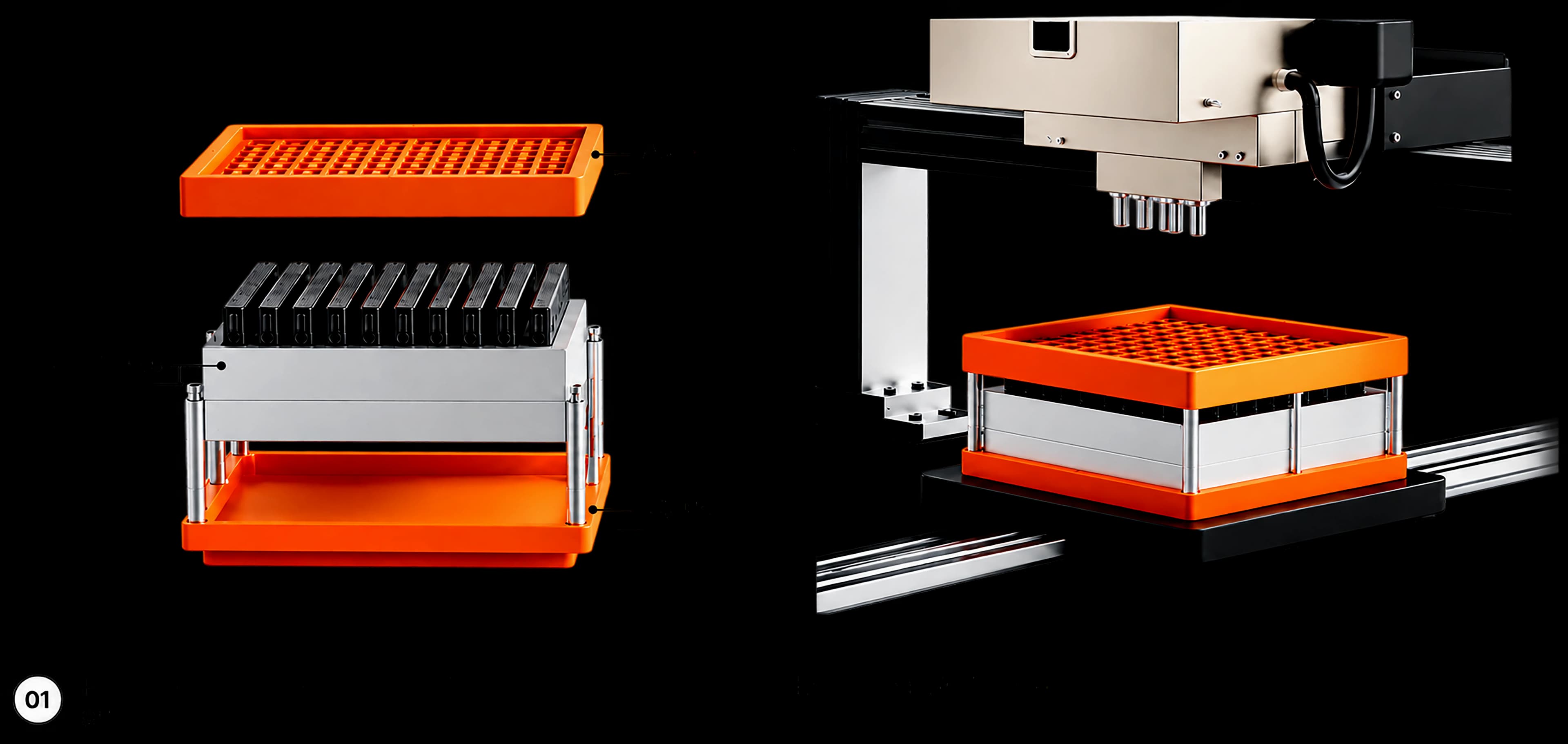

REVNA is designed to be compatible with a jig-based automation system that processes 100 devices at a time using an alignment plate and capping plate.
