See the three-chamber design, smart screen, filling system, and hardware detail from every angle.
| Product | DAWN |
|---|---|
| Product Type | Disposable Vape |
| Style | Pen Style Disposable |
| Version / Size | 1mL / 1.25mL / 2mL |
| Max. Fill Volume | 1mL / 1.25mL / 2mL |
| Dimensions | 96 × 24 × 14mm |
| Standard Power | 2.8V / 3.2V |
When triggered, the screen flashes 5 times and the output is shut off.
Normal smoking time is 8 seconds. If usage exceeds 8 seconds, the screen flashes 2 times and stops output.
Charging
Light remains on
Fully Charged
-5°C to +35°C
45–75% RH
Have questions about our hardware, packaging, customization, or ordering process? Here are answers to the questions we hear most often.
DAWN AIO is available in 1mL, 1.25mL, and 2mL capacities. All versions use the same 96 × 24 × 14mm body size.
The standard voltage options are 2.8V and 3.2V. Additional power options are available upon request.
DAWN uses a Flat Ceramic Coil With No Cotton. It also uses a wickless postless design.
If use exceeds 8 seconds, the screen flashes 2 times. The device then stops output as over-usage protection.
Store the device at -5°C to +35°C (32°F–95°F) with 45–75% RH. The battery should also complete a charge/discharge cycle every 180 days.
Still have questions? Email us at hello@rectitudepartners.com
| Additional Power Options | Available upon request |
|---|
| Resistance | 1.4 ± 0.1Ω |
|---|
| Activation | Mouth Activation |
|---|
| Battery Capacity | 280mAh |
|---|
| Viscosity Range | 1,000–110,000 cps |
|---|
| Charging Port | Type C |
|---|
Light flashes 20× then turns off

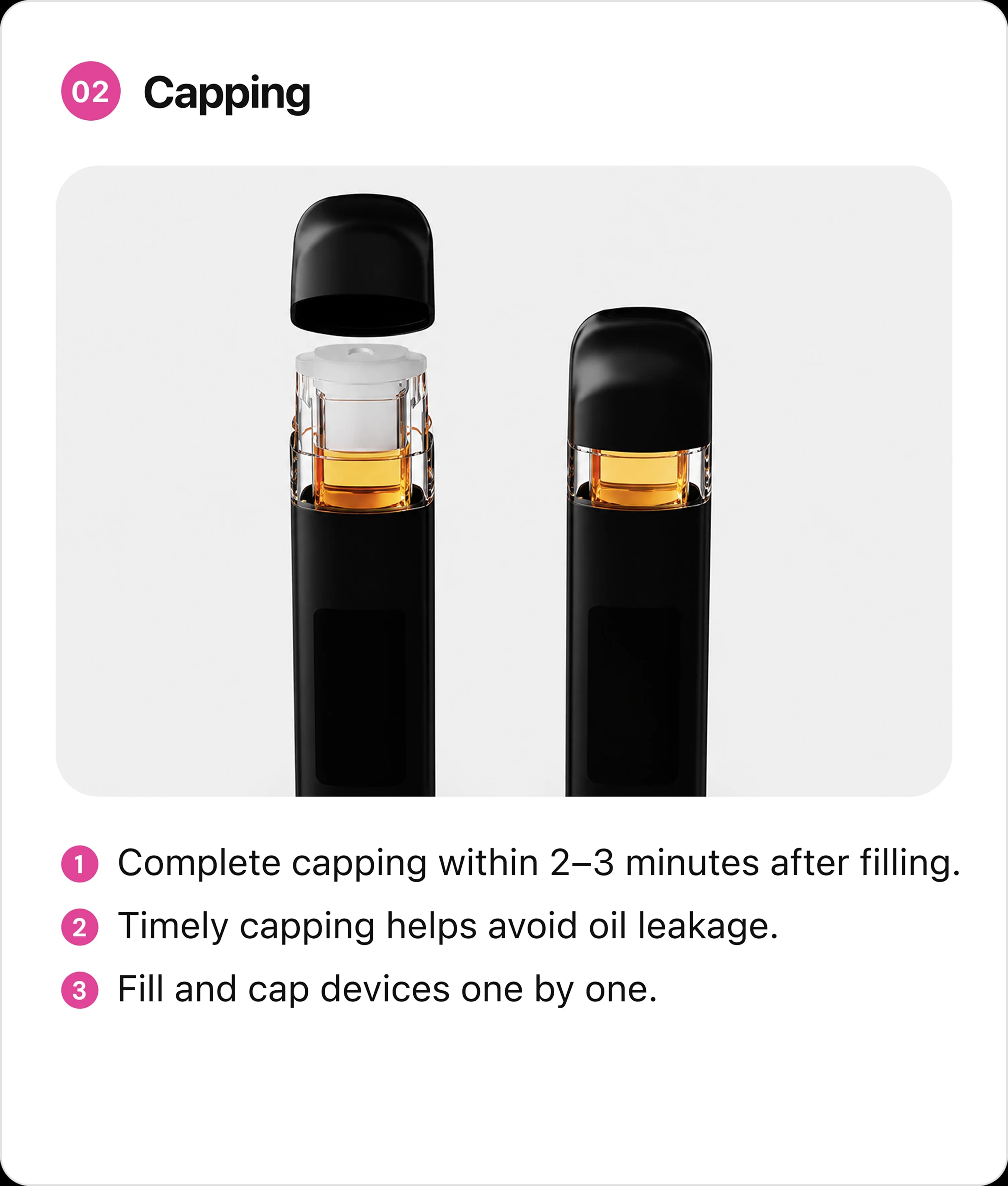

Keep sealed with protective film during storage.
Complete one charge/discharge cycle every 180 days.
DAWN combines preheating, variable voltage, and smart-screen feedback into a slim pen-style disposable form factor.
Standard power options of 2.8V or 3.2V. Additional options available upon request.

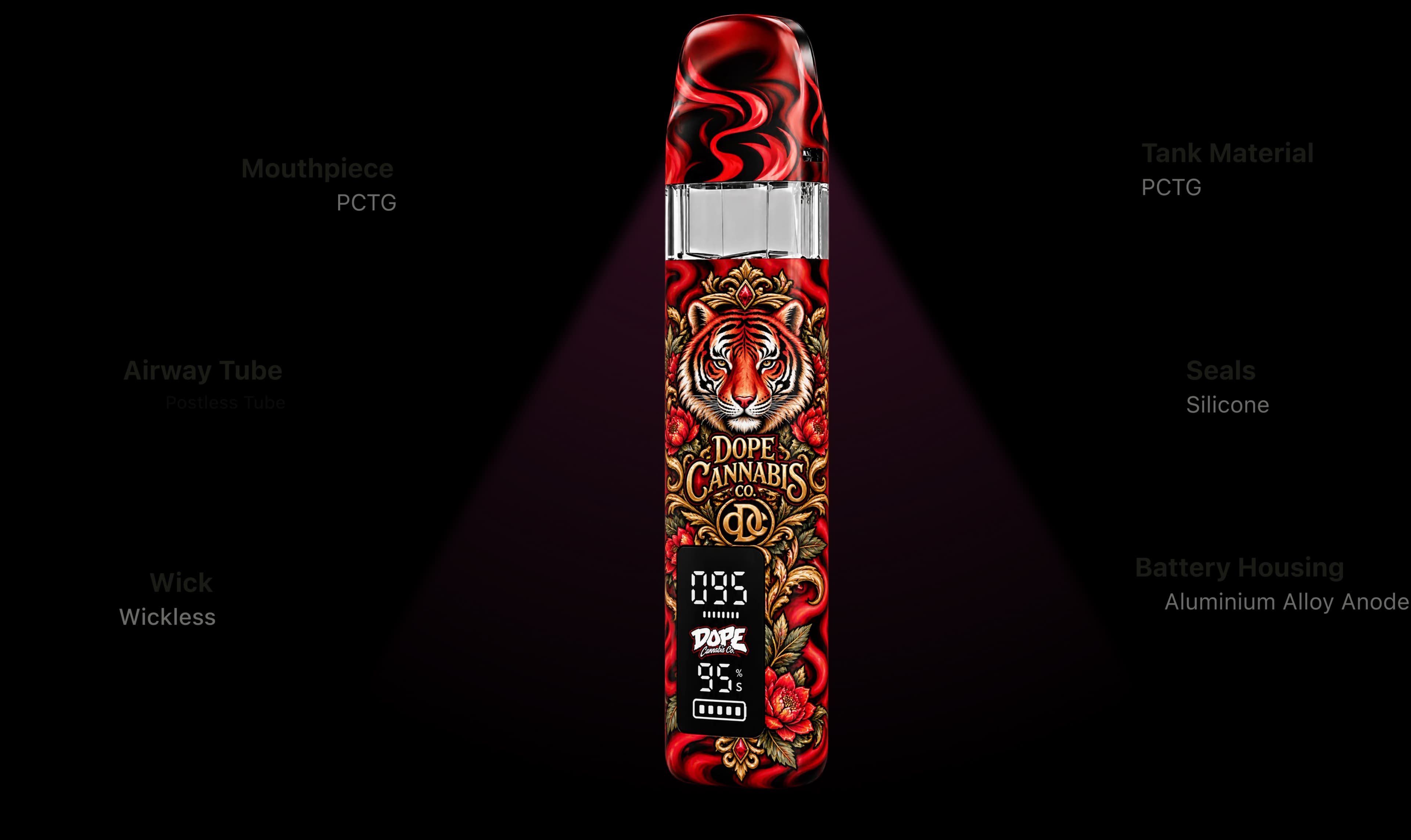

Postless tube airway with a flat ceramic coil. No cotton, no wick.
Displays blinker counter, battery level, and countdown timer. Supports logo printing inside screen.
Simple draw-activated operation with no button required for vaping.

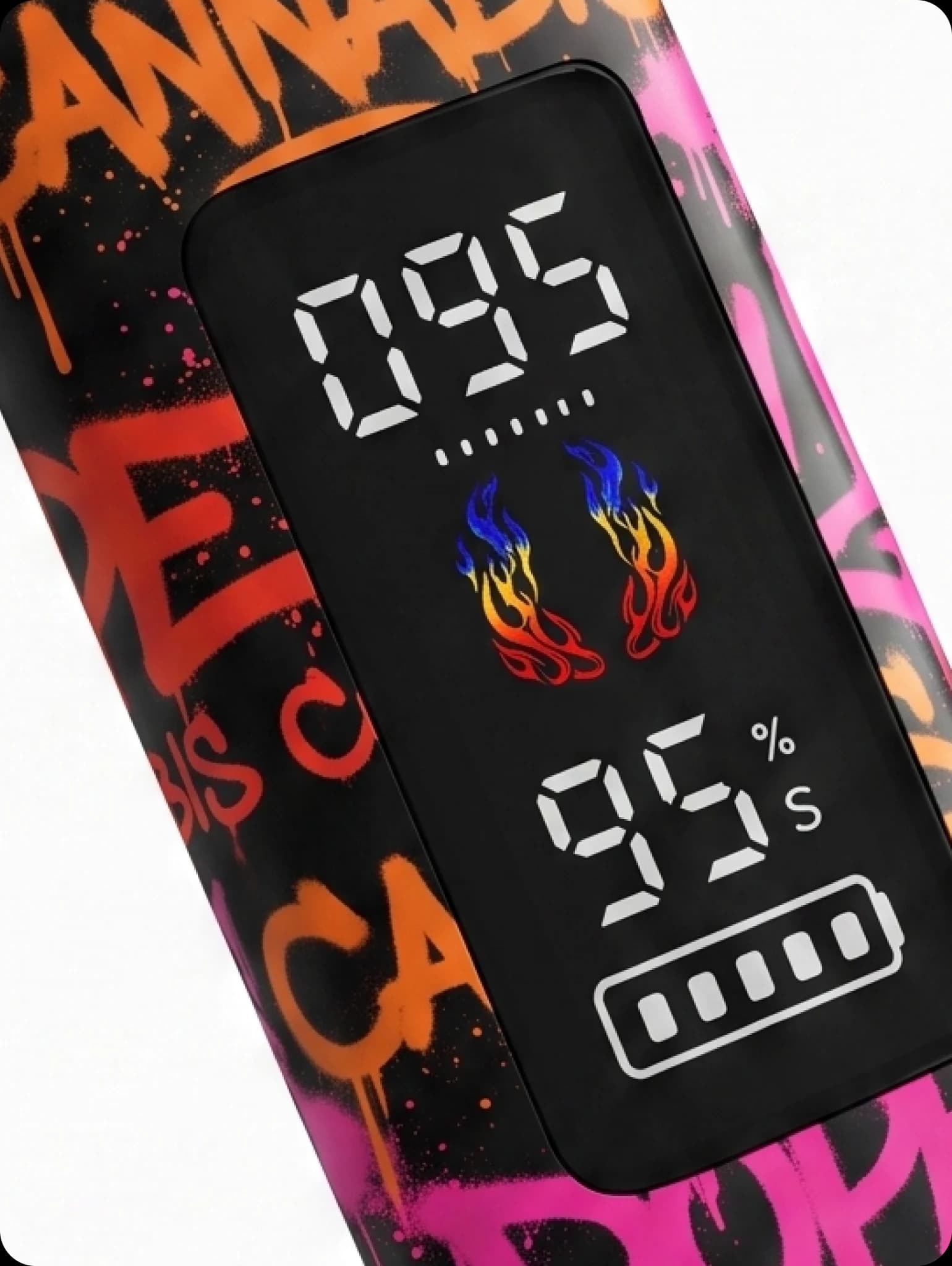

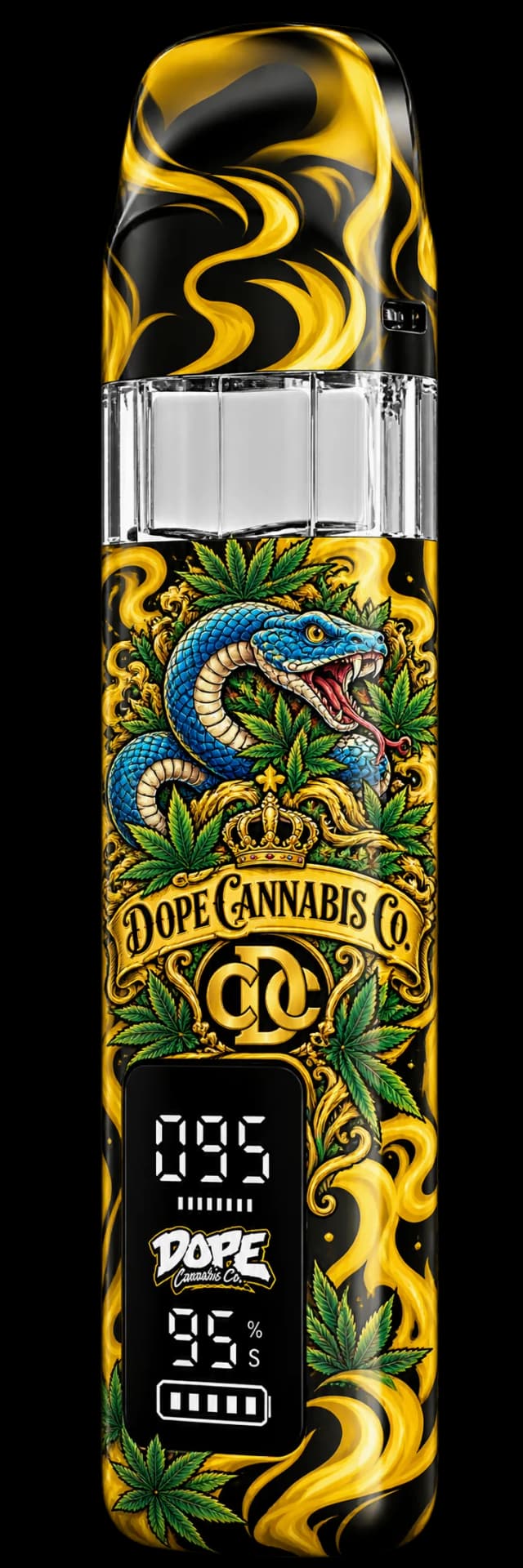

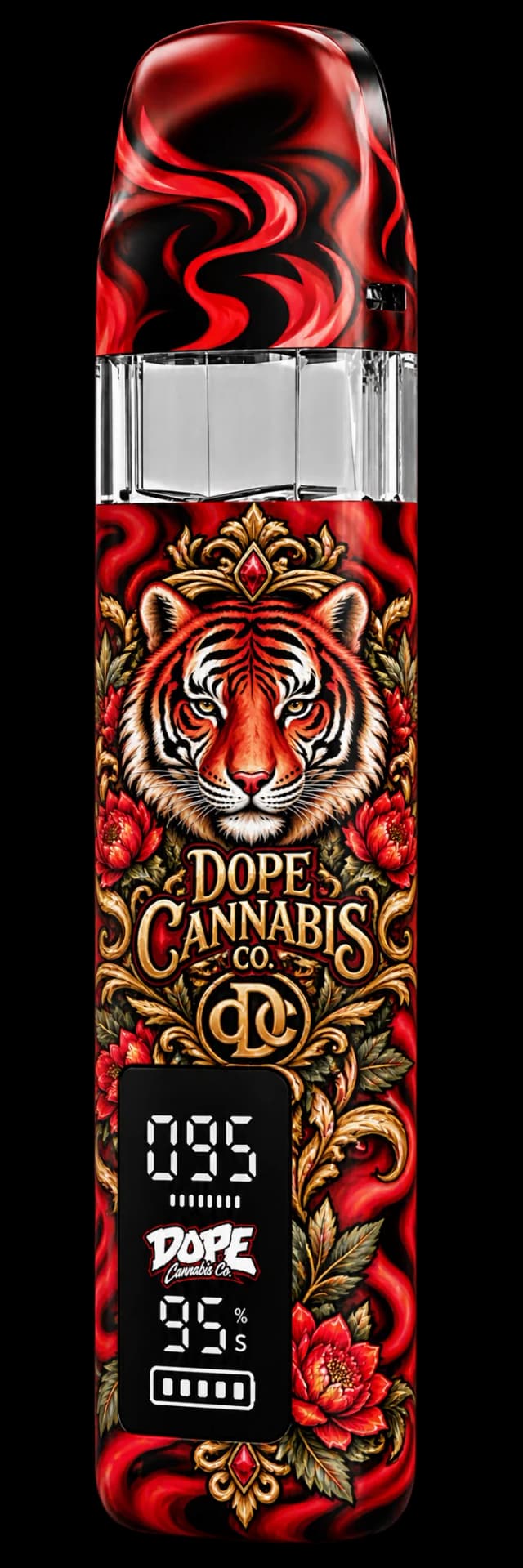

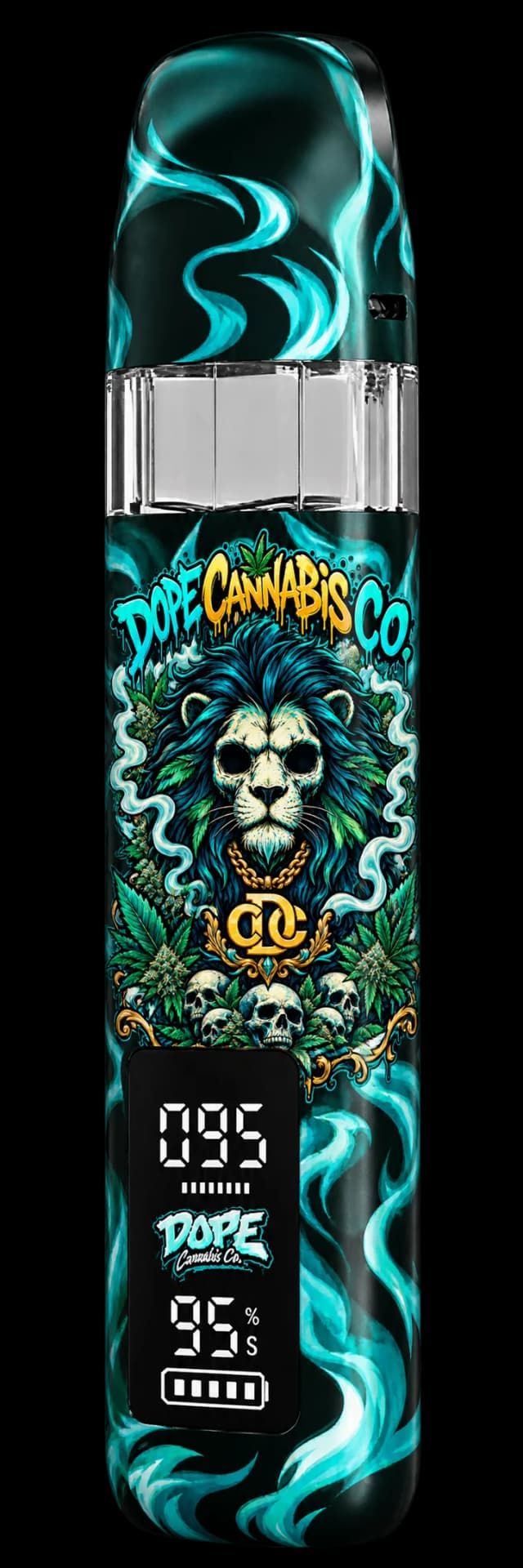

The DAWN smart screen keeps users informed during every session — displaying battery level, draw countdown, and a blinker counter. A custom logo can also be printed inside the screen.
Monitor remaining charge at a glance.
Track draw duration in real time — 8s max.
Count total puff sessions since last charge.
Print your brand logo inside the screen display.
Additional power options are available upon request.

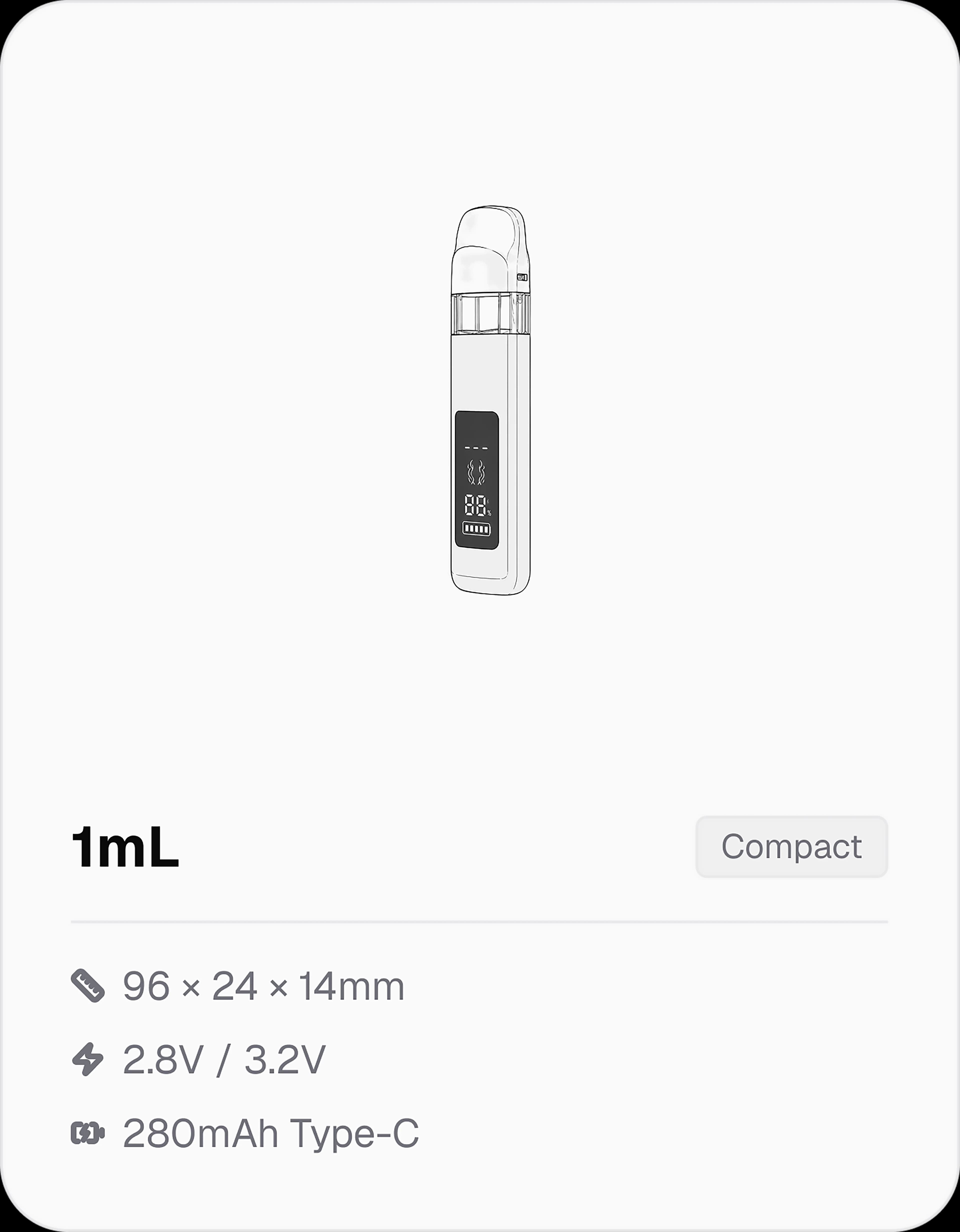

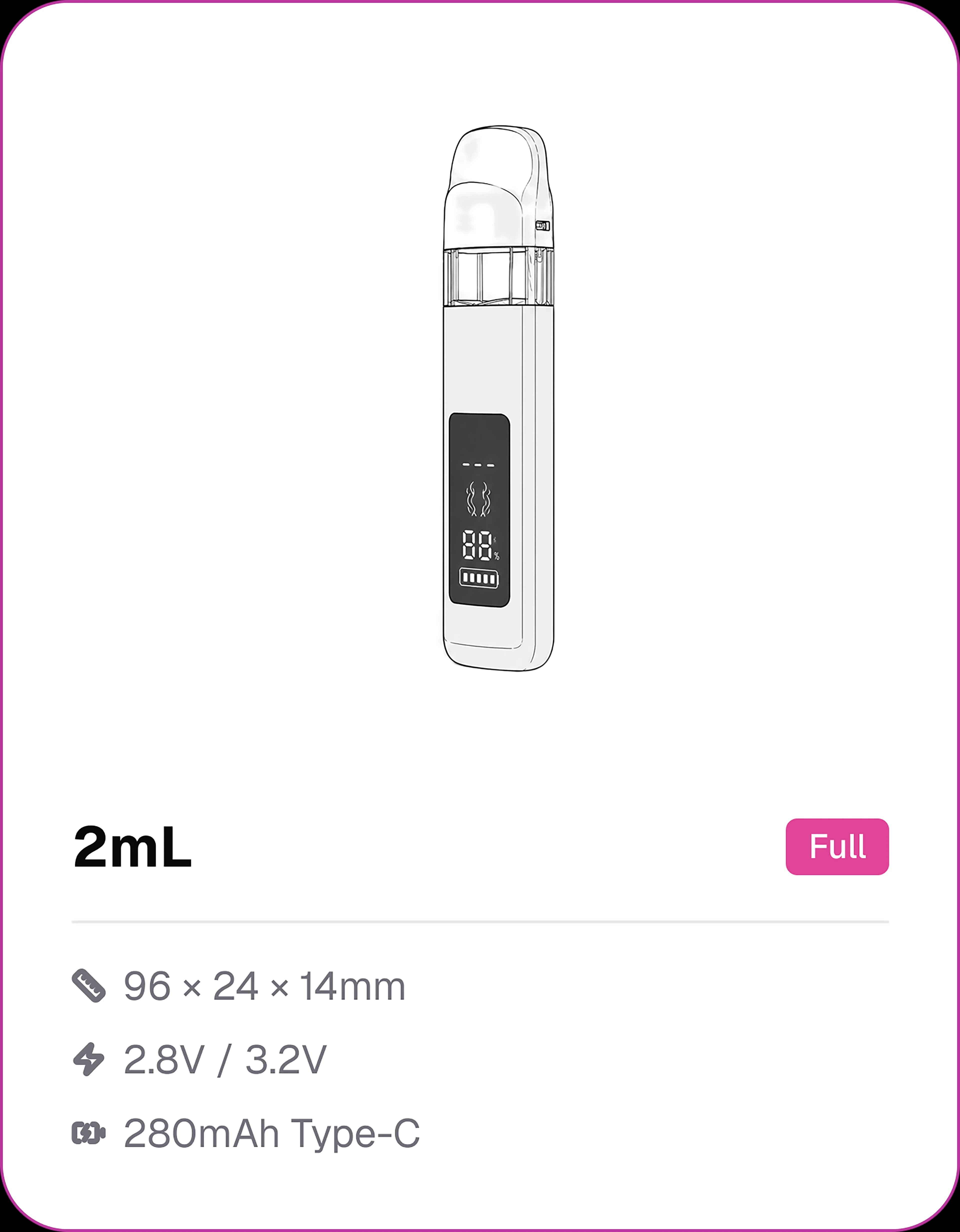

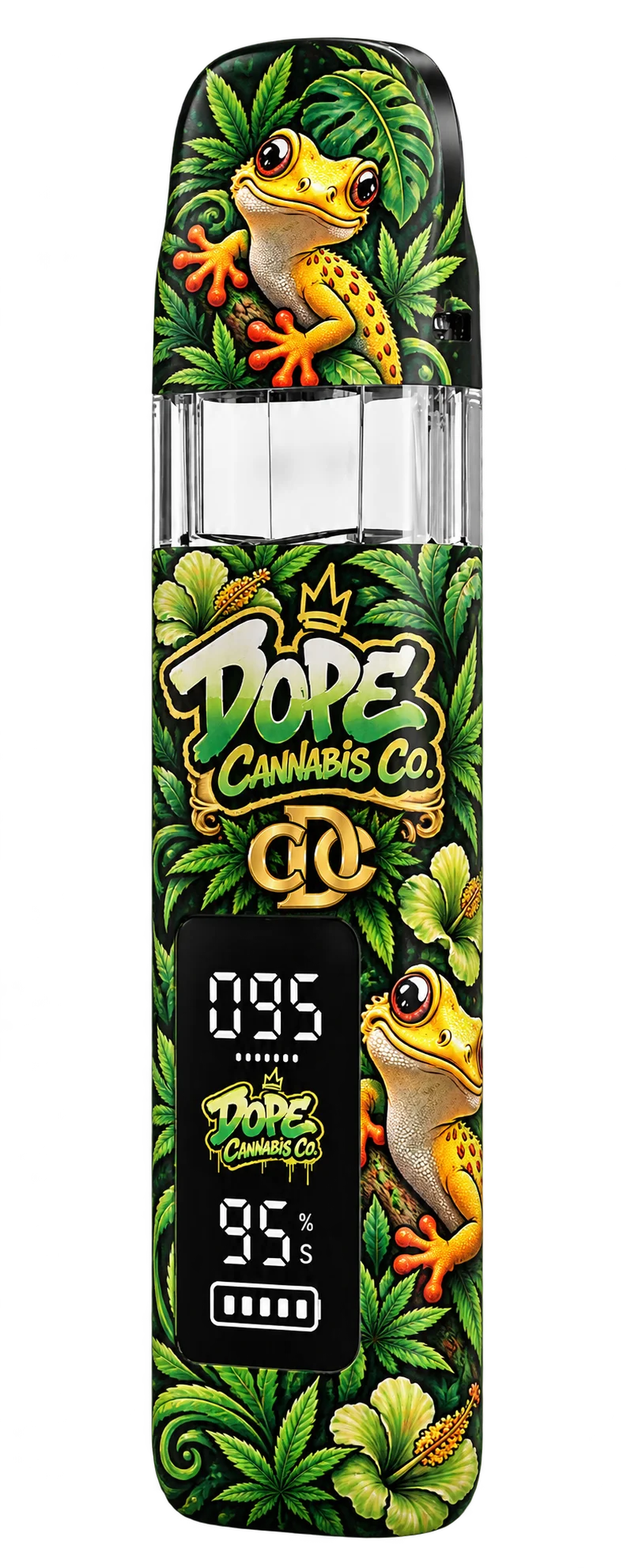

All versions use the same box-style preheat disposable platform. Select the fill configuration that fits your product line.
