SCREEN DISPLAY AIO HARDWARE

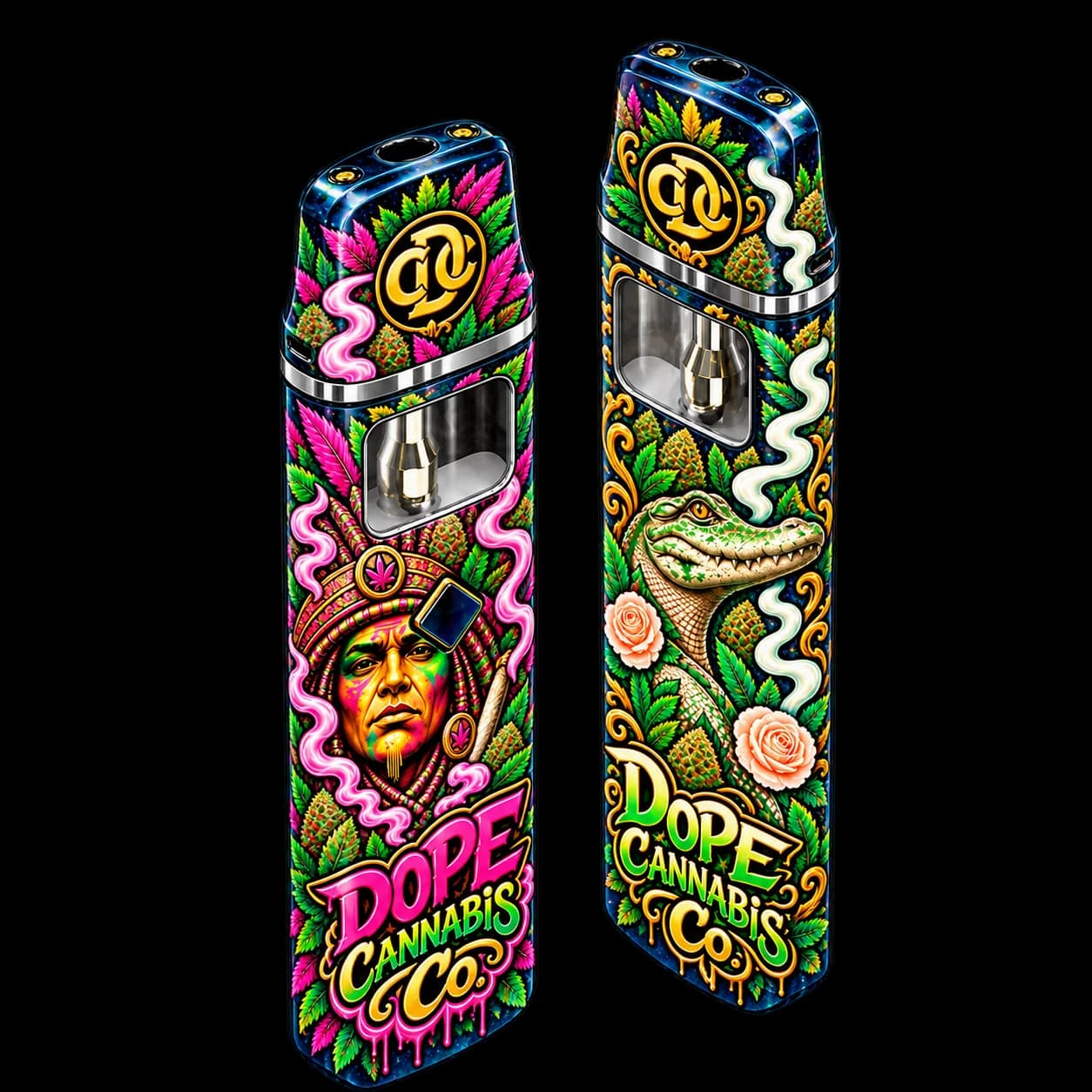

CASCADE V is a 1.0mL / 1.5mL / 2.0mL screen-display AIO with an SS316 medical-standard post, inhale activation, a 320mAh rechargeable battery, wide viscosity compatibility, and USB-C charging.

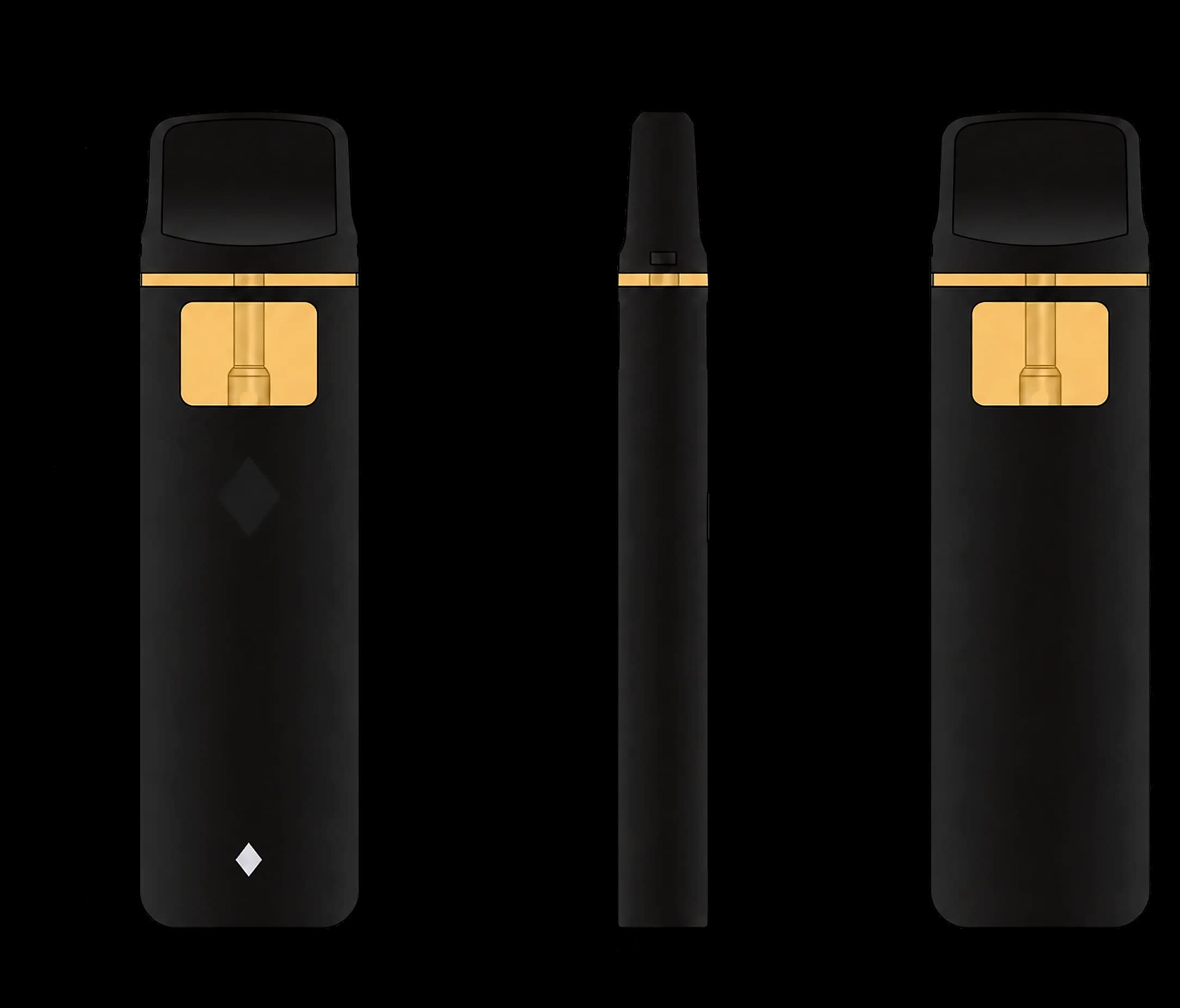

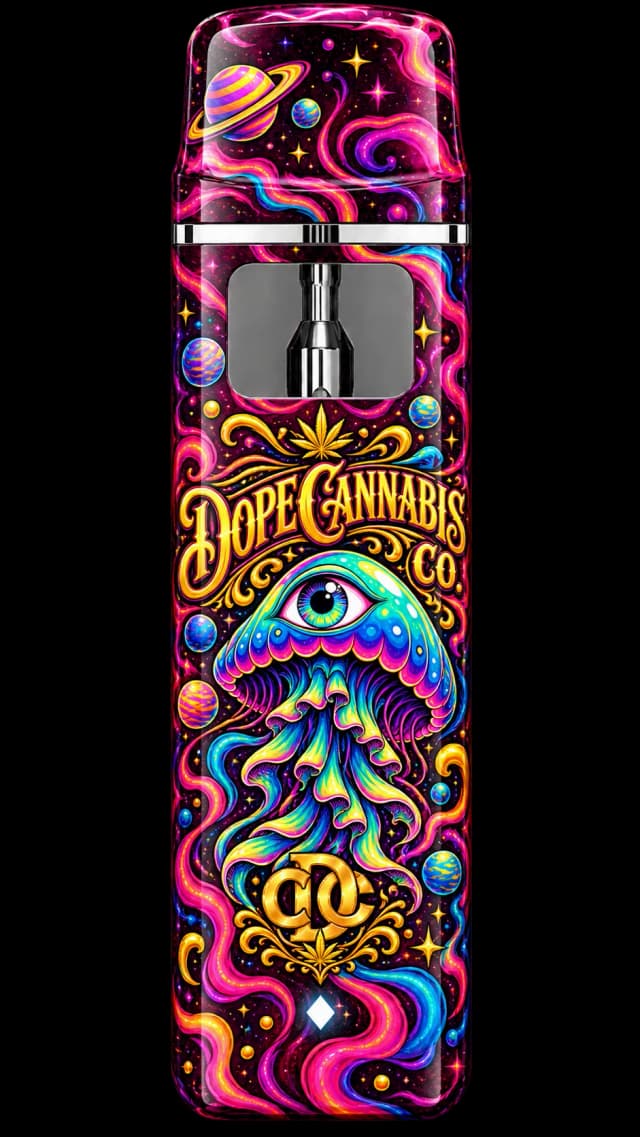

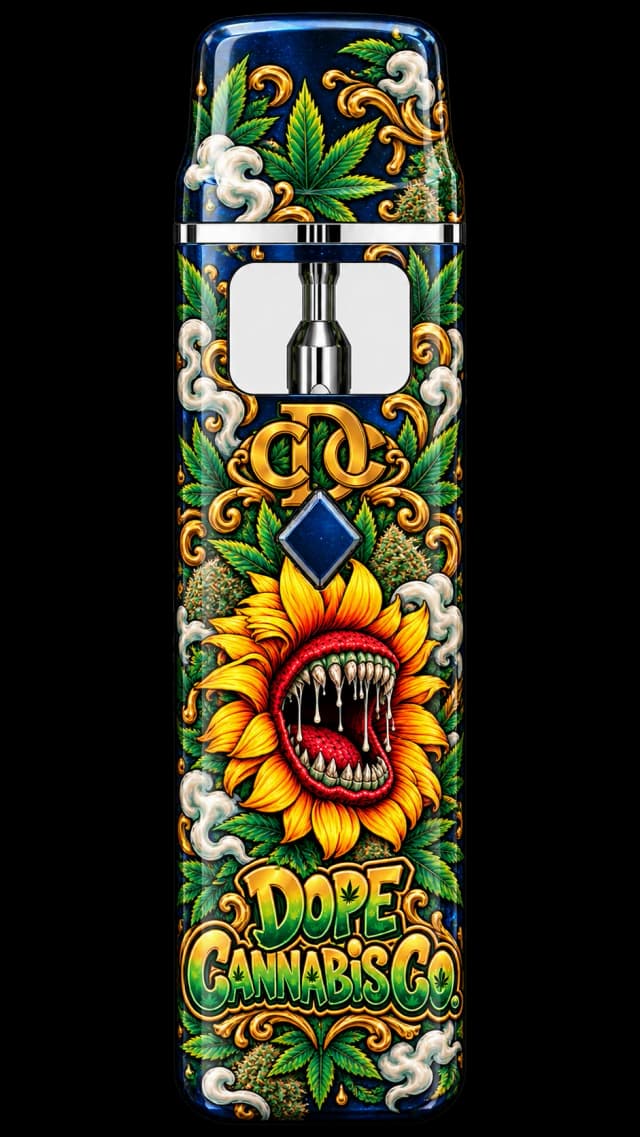

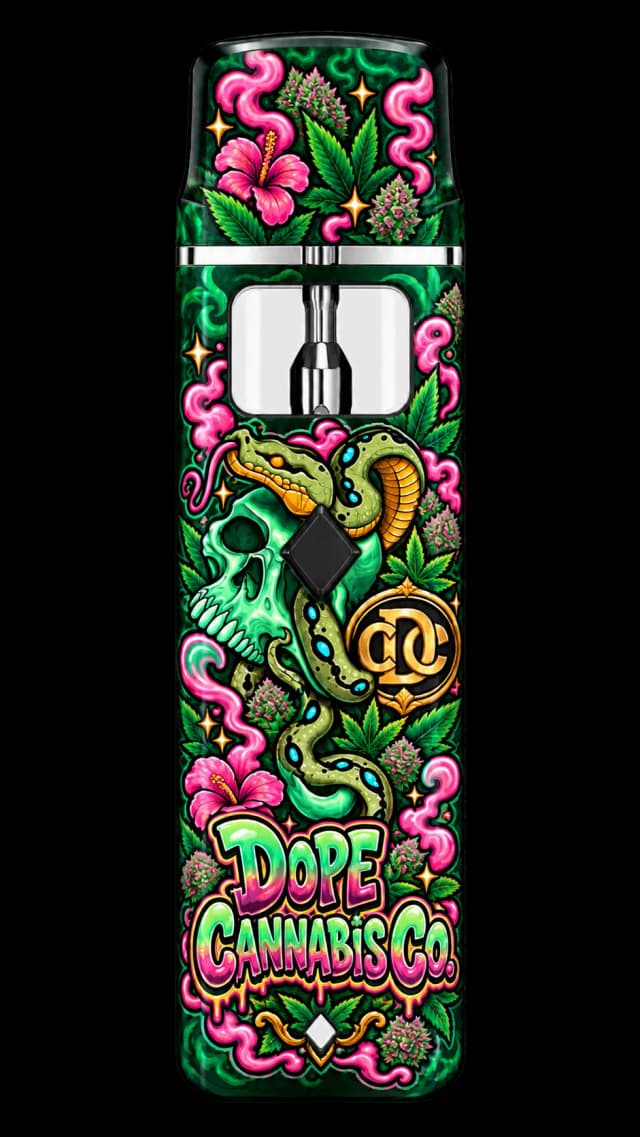

Front, rear, and side profiles, color finishes, mouthpiece, tank window, SS316 post, USB-C port, and dieline.
Complete specification data for procurement and compliance.
| Product Type | All-In-One |
|---|---|
| Version | 1.0mL / 1.5mL / 2.0mL |
| Max Fill Volume | 1.0mL / 1.5mL / 2.0mL |
| Internal Volume | 1.05mL / 1.55mL / 2.05mL |
| Dimensions | 90 × 24 × 10.2mm |
| Standard Power | 2.8V / 3.5V |
White light stays on for 3 seconds when a short circuit occurs. The device then enters dormancy.
Normal draw is 10 seconds. If exceeded, the light flashes twice and output stops.
Charging
USB-C · Light stays on while charging
Fully Charged
All three capacities share identical dimensions. Store at -5°C to +35°C (32°F–95°F), 45–75% RH. Cycle battery every 180 days.
Silk Printing
MOQ 1,000Extra 2–3 days
Powder Coating
MOQ 1,000Extra 1–2 days
Laser Engraving
MOQ 5,000Extra 3–4 days
Electroplating
MOQ 10,000Extra 3–4 days
Soft Touch
MOQ 10,000Extra 5–7 days
Matte & Glossy Finish
-5°C to +35°C · 32°F–95°F
45–75% RH
Have questions about our hardware, packaging, customization, or ordering process? Here are answers to the questions we hear most often.

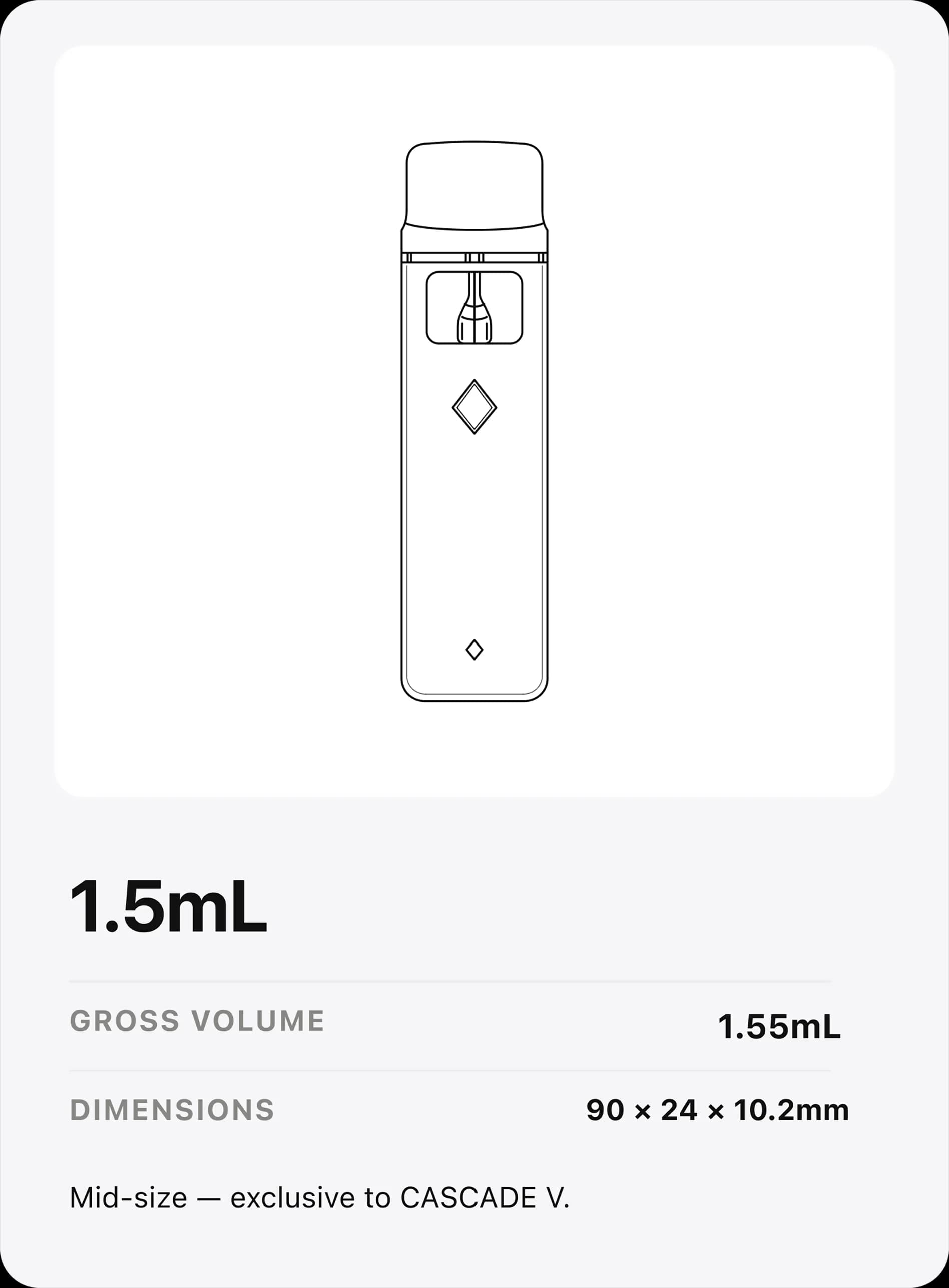

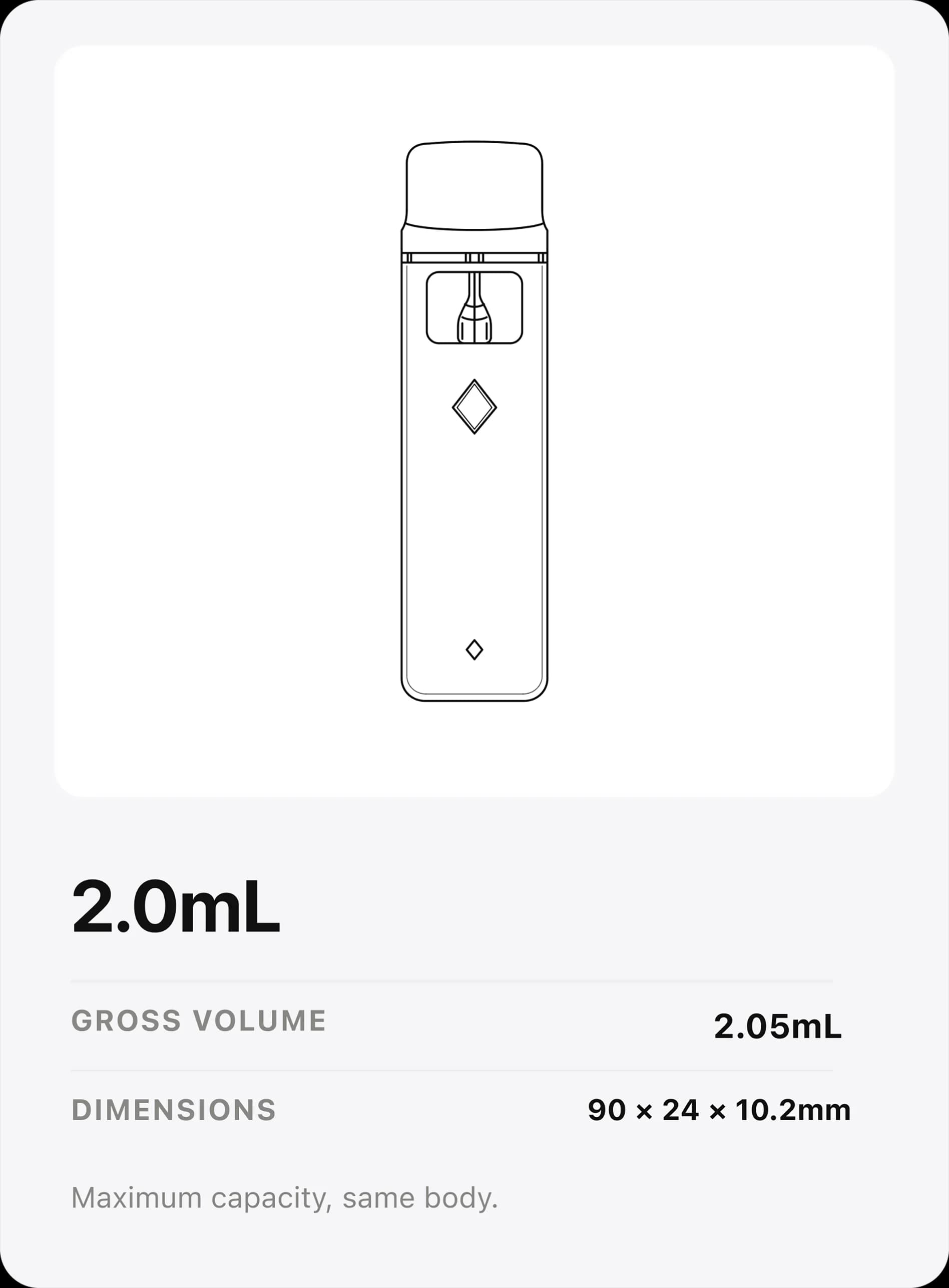

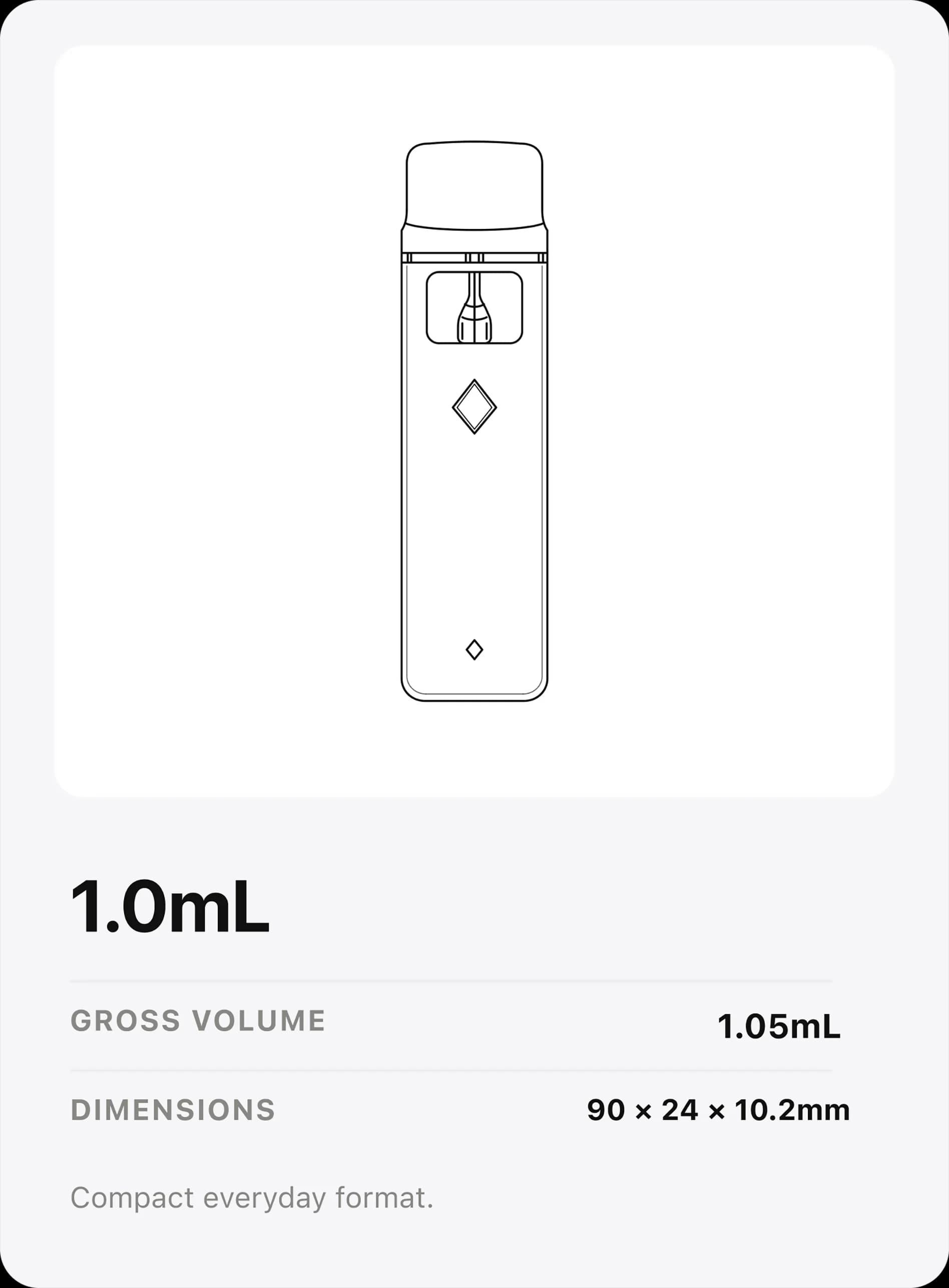

1.0mL (1.05mL internal), 1.5mL (1.55mL internal), and 2.0mL (2.05mL internal) — the only three-capacity AIO in the lineup. All share the same 90 × 24 × 10.2mm body.
An SS316 medical-standard post — a medical-grade internal standard no other AIO in the lineup specifies.
4 × 1.8mm standard. Additional inlet options available upon request.
Fill through the filling holes (not the airway). Keep vertical at constant speed, cap within 30 seconds. Rest upside down for 1–2 hours after capping.
Yes. Silk printing and powder coating from 1,000 units. Laser engraving from 5,000. Electroplating, soft touch, finishes, mouthpieces, and paper wraps from 10,000.
Still have questions? Email us at hello@rectitudepartners.com
| Additional Power Options |
|---|
| Available upon request |
| Standard Resistance | 1.4Ω |
|---|
| Resistance Options | 1.3–2.0Ω |
|---|
| Fluid Inlet Diameter | 4 × 1.8mm |
|---|
| Fluid Inlet Options | Available upon request |
|---|
| Post | SS316 medical standard |
|---|
| Activation | Inhale Activate |
|---|
| Battery Capacity | 320mAh |
|---|
| Viscosity Range | 1,000–110,000 cps |
|---|
| Charging Port | USB-C |
|---|
Light flashes 20× then turns off
MOQ 10,000Extra 5–7 days
Color Mouthpieces
MOQ 10,000Extra 5–7 days
Paper Wraps
CustomAvailable option
Keep sealed with protective film.
One charge/discharge cycle every 180 days.

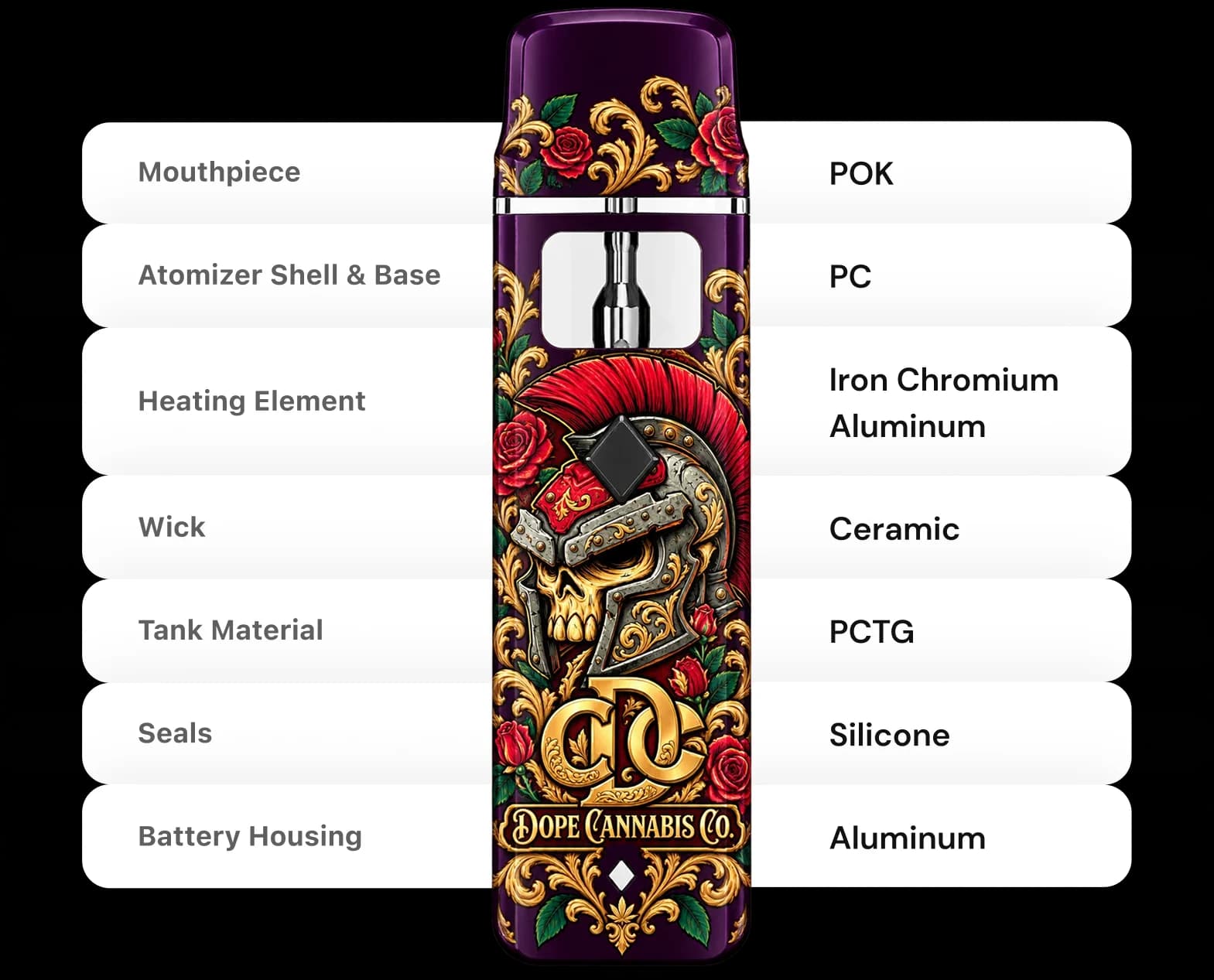

CASCADE V's defining hardware feature is its SS316 medical-standard post — stainless steel construction for a consistent, durable heating core.
Stainless steel post grade for hardware consistency.
1.3–2.0Ω options available upon request.
Two factory power settings cover gentle and full output. Additional power options available upon request.
Low Setting
Gentle output for smooth, mild draws.
High Setting
Full output for dense vapor.
Standard Resistance
1.3–2.0Ω options available upon request.
4 × 1.8mm standard
Additional sizes upon request
Inhale activate — no button
